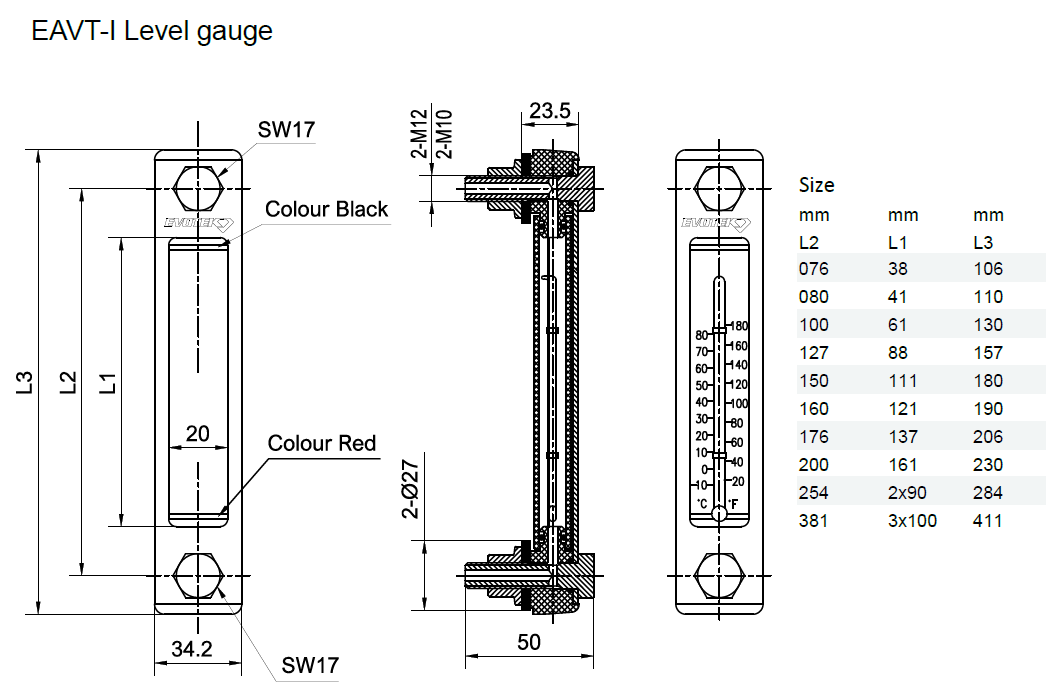

EAVT-I
Description
Product Description
- monitor the level of operating fluid
- Visual thermometer with °C and °F scale
- the fluid level can be easily seen on the outside of the tank
- to be mounted directly on to the operating fluid tank
- application in Machine tools, system engineering, tanks for hydraulic, lubricating and cutting oils, and gearboxes.
Technical Specifications
Application:Levelgauge with optional internal thermometer
Port Sizes:Mounted using two banjo bolts
Mounting position: Vertically on the tank wall
Notes: The upper viscosity limit is 2,000 mm²/s.
Material
Housing frame: Aluminium
Seals:NBR or FPM
Lens: Polyamide
Connectors: Polyamide
Temperature range:-20°C to 100°C
Screw tightening torque: 8 ~ 10 Nm
Nominal pressure: max. 0.5 bar
Operating fluids: Mineral oil to DIN 51524 Part 1 and 2, water-oil emulsions and synthetic fluids, such as hydraulic fluids based on phosphate ester. (other fluids on request)
