EFMP

Product Description

• Operating pressure up to 315 bar
• 600 l/min max. flow rate
• installation in manifold block mounting
• application in manifold block mounting
• compliant with industry relevant ISO standards(see ISO test below)

Technical Specifications

 Application:Manifold mounting high pressure filter

Port Sizes:17.5 & 30mm

Flow Rate:max. 600 l/min

Operating Pressure:max. 315 bar

Burst Pressure: min. 950 bar

Element Collapse Pressure:21 bar ( M series) 210 bar (H series ), 30 bar Wire Mesh

By-pass Opening Pressure:Δp=6 bar +0.6bar

Material Seals:NBR or FPM (-25°C to 100°C)

Filter Head:S.G. cast iron

Filter Bowl:forged steel

Compatibility:Suitable for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable oils (for use with water or other fields please contact our technical department)

Tested according to ISO standards:

ISO2941 Collapse/burst resistance

ISO2942 Fabrication integrity

ISO2943 Material compatibility integrity

ISO3723 Method for end load test

ISO3724 Flow fatigue characteristics

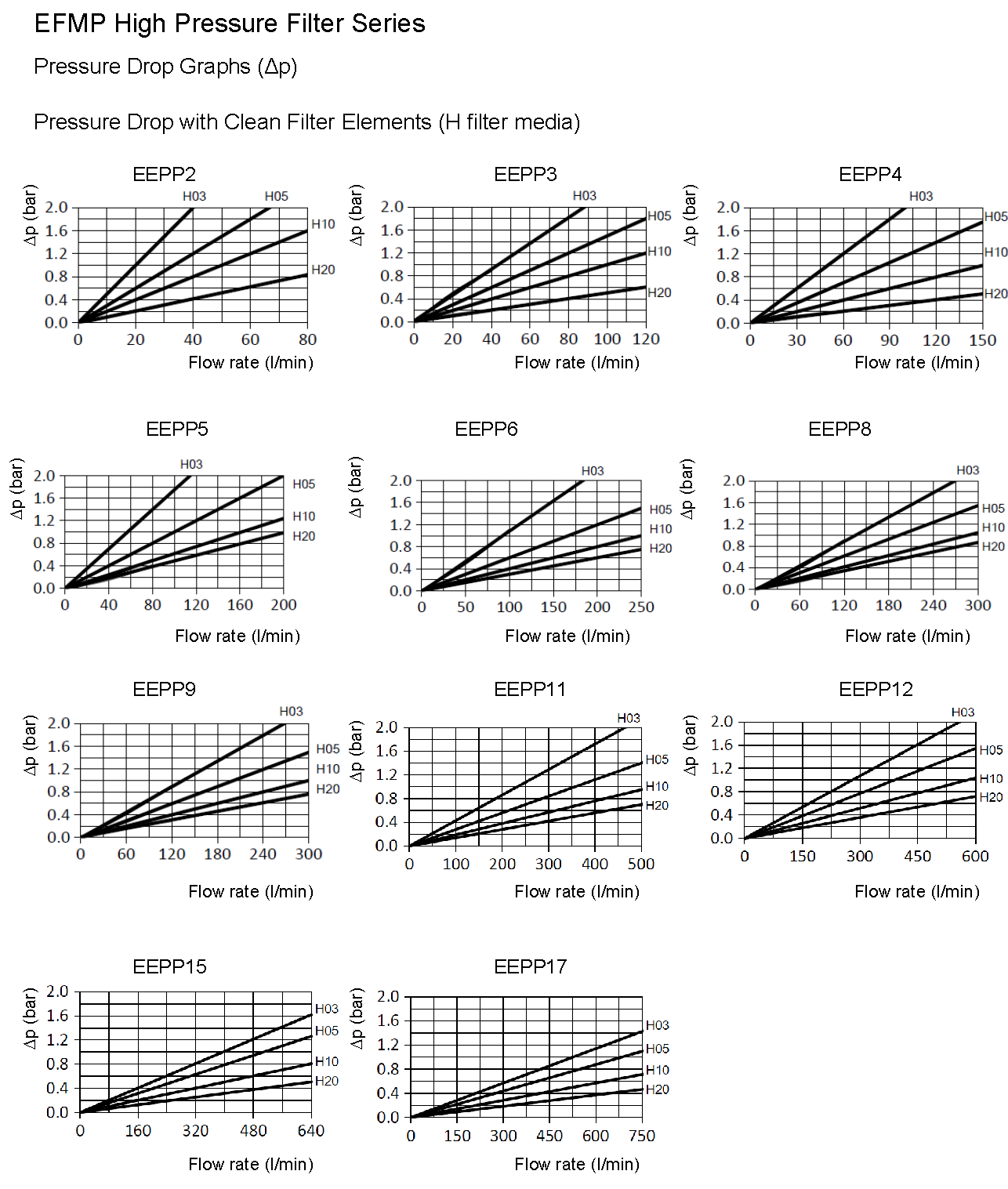

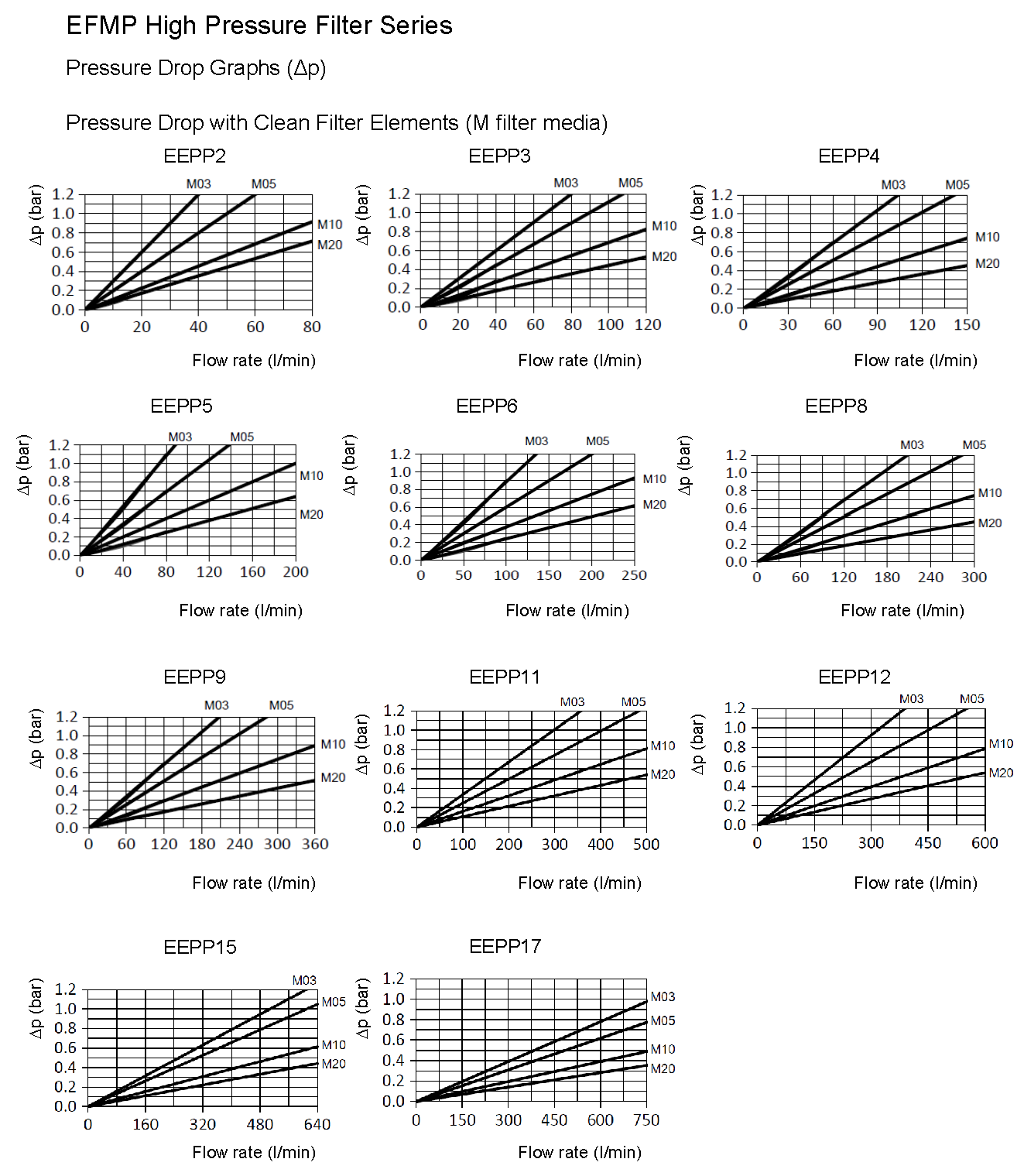

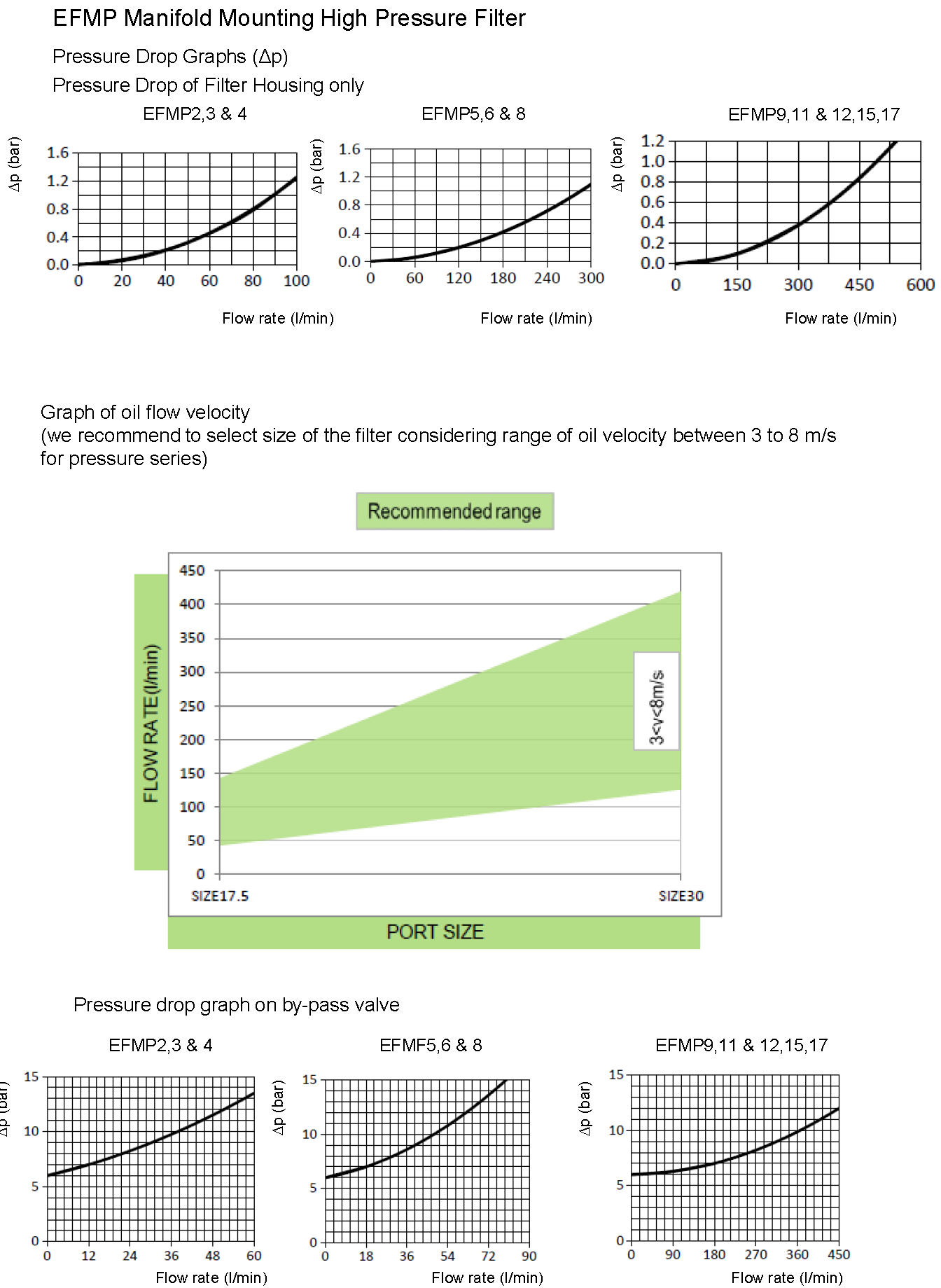

ISO3968 Pressure Drop vs. Flow Rate

ISO16889 Multi-Pass Test
