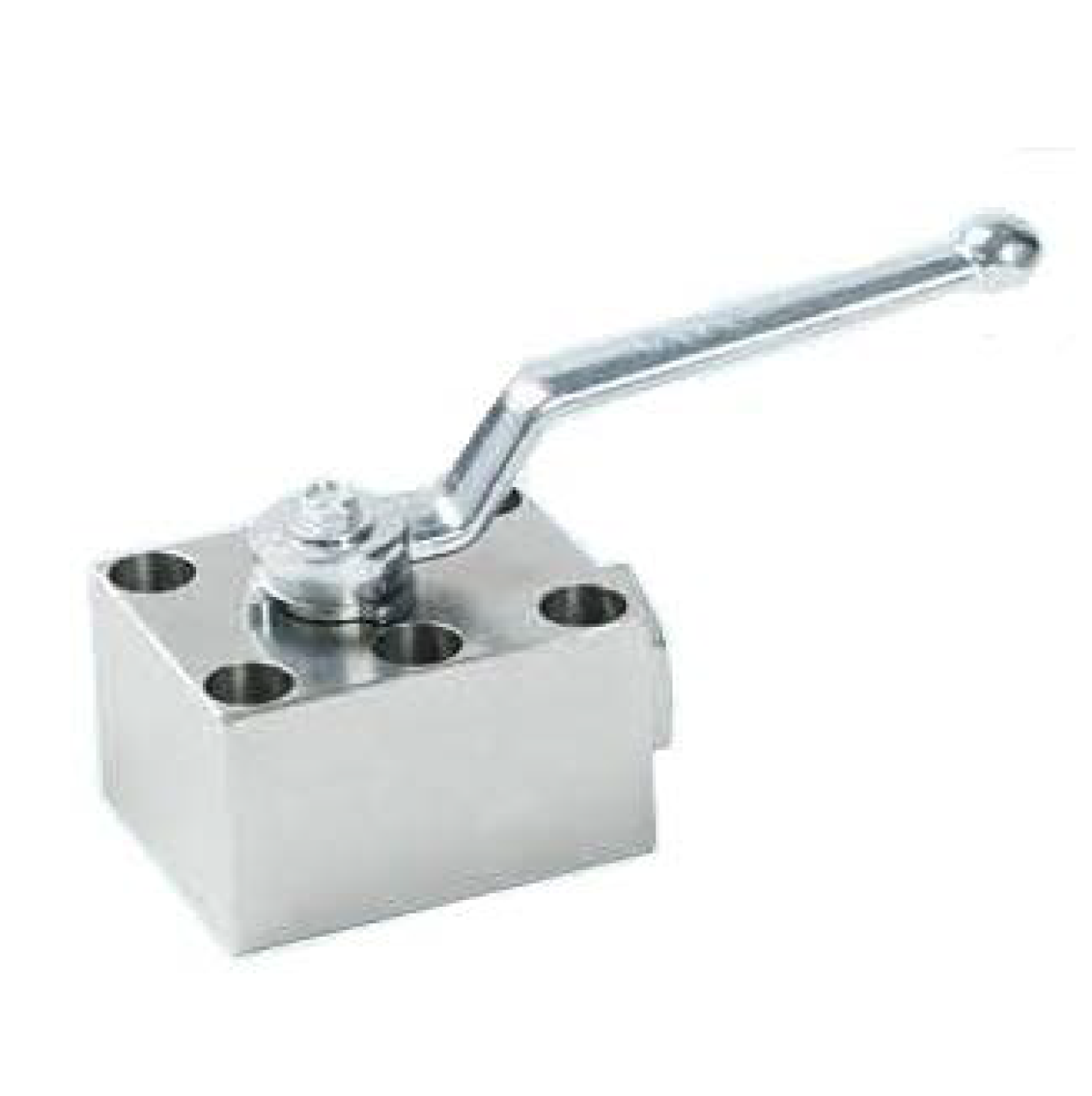

EHPB

Product Description

Operating pressure up to 500 bar

DN up to 50

Application in general hydraulics, wood working machinery, lathes, manifolds

All ball valves can be supplied with the following options: Actuator, Limit controls & Lock

Technical Specifications

Standard Connections Styles: Manifold mounting

Construction: Block body design

Type of construction: Shut-off device is a ball

Nominal pressure: PN 350 bar up to PN 500 bar (according to dimension table)

Operating fluids: Oils, petroliferous and petrochemical products

Operating temperature range: -20°C to 100°C

Standard Material

Body: Carbon Steel

Ball: Carbon Steel

Stem: Carbon Steel

Lever: Zinc Alloy Bent (DN 06 to 25)

Steel Straight (DN 06 to 25)

Steel Bent (DN 32 to 50)

Ball seat: POM

O-rings: NBR/FKM
