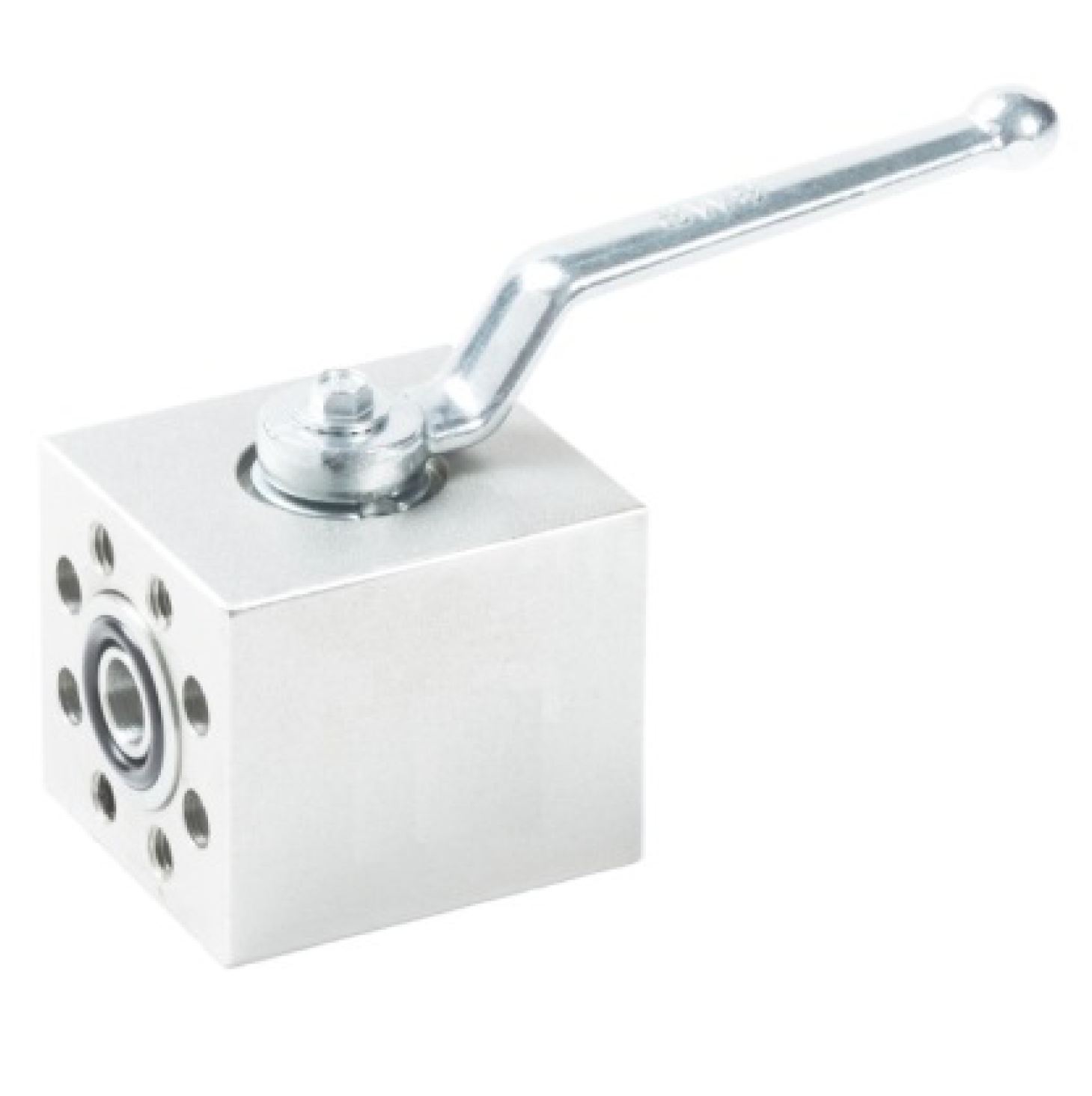

EHFZ
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Product Description
Operating pressure up to 420 bar
DN up to 50
In-line assembly
All ball valves can be supplied with the following options: Limit controls & Lock
Technical Specifications
Application: In-line assembly

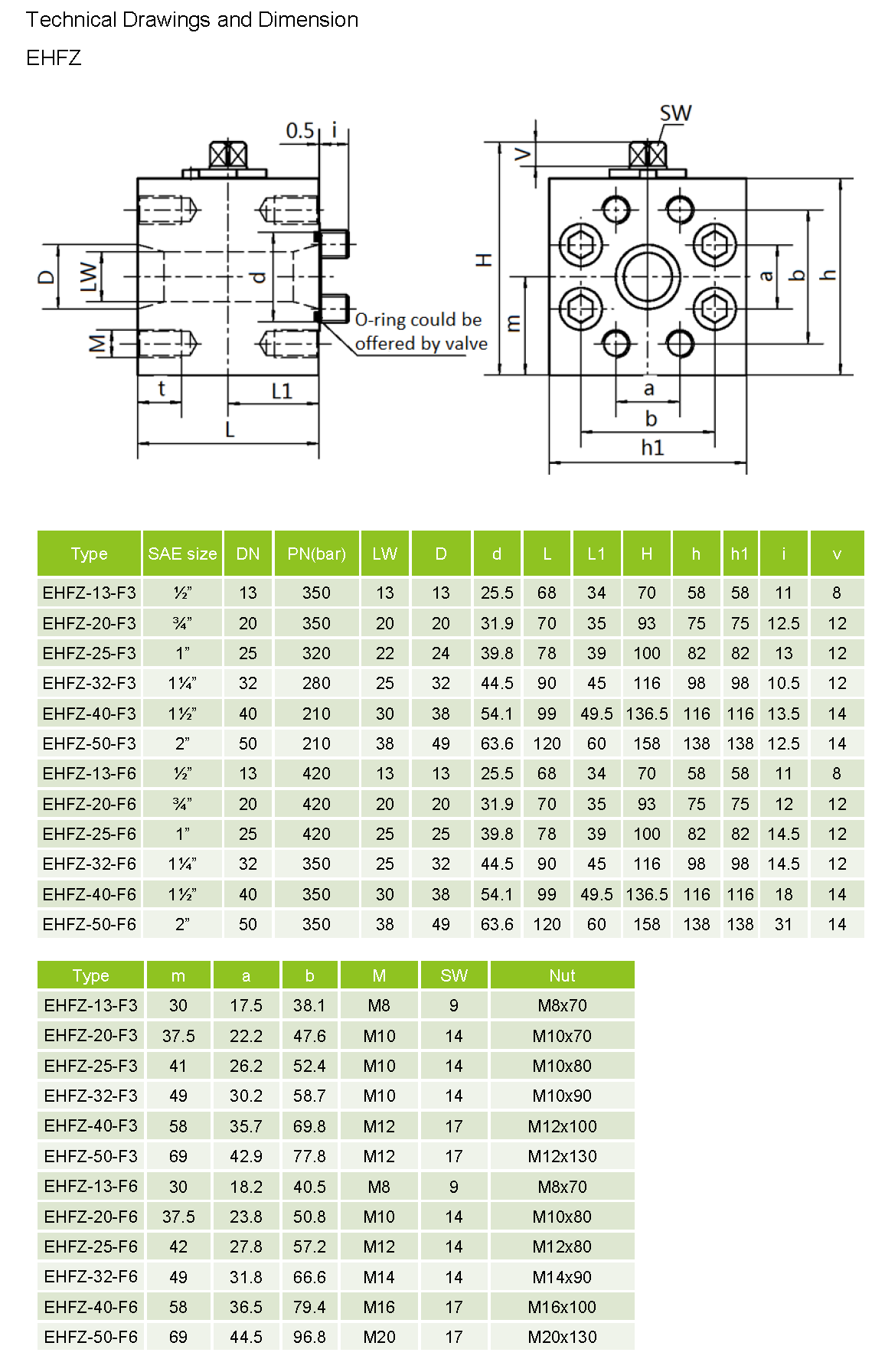

Flange dimensions: ISO 6162, tables 1 and 2 (SAE J 518C)
Flange connections: SAE fixed flange
Type of construction: Shut-off device is a ball
Nominal pressure: PN 210 bar up to PN 420 bar (according to dimension table)
Operating fluids: Oils, petroliferous and petrochemical products
Operating temperature range: -20°C to 100°C
Standard Material
Body: Carbon Steel
Ball: Carbon Steel
Stem: Carbon Steel
Lever: Zinc Alloy Bent (DN 06 to 25),Steel Straight (DN 06 to 25),Steel Bent (DN 32 to 50)
Ball seat: POM
O-rings: NBR/FKM
Questions regarding the product?
Additional information
| Table 1 | 13, 20, 25, 32, 40, 50 |
|---|---|
| Table 2 | F3, F6 |
| Table 3 | B, V, E |
| Table4 | 02, 03, 04 |
| Table5 | C, S |
| Table6 | C, S |
| Table 7 | M, E, K |
