EVCD-CV-G18
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Technical Specifications
Operating Pressure :350Bar

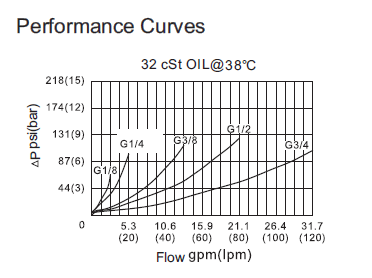

Flow：See figure
Maximum internal leakage ：2drops/min at 350bar
Operating temperature :-30°C to+120°C(-22°F to+250°F)
Cracking pressure:<0.5bar

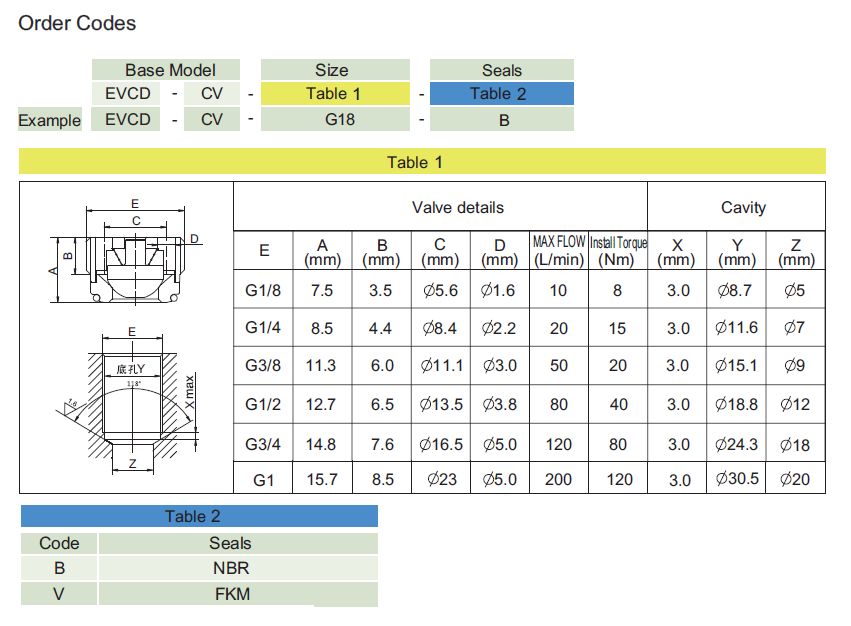

Cavity：See figure
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:7.4 to 420cSt.
Features
Hardened seat for long life
Compact size

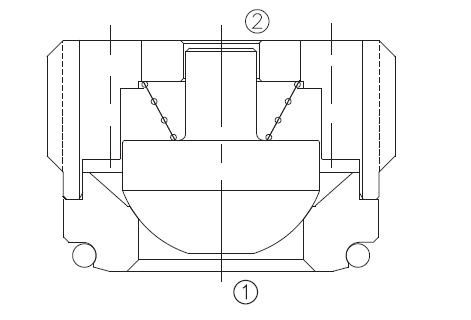

Operation
Pressure at①overcomes the spring-bias poppet and allows free flow①to②,
Flow in the opposite direction,from@to ① siblocked by the poppet。
Questions regarding the product?
Additional information
| Table1 | G1/8, G1/4, G3/8, G1/2, G3/4, G1 |
|---|---|
| Table2 | B, V |
