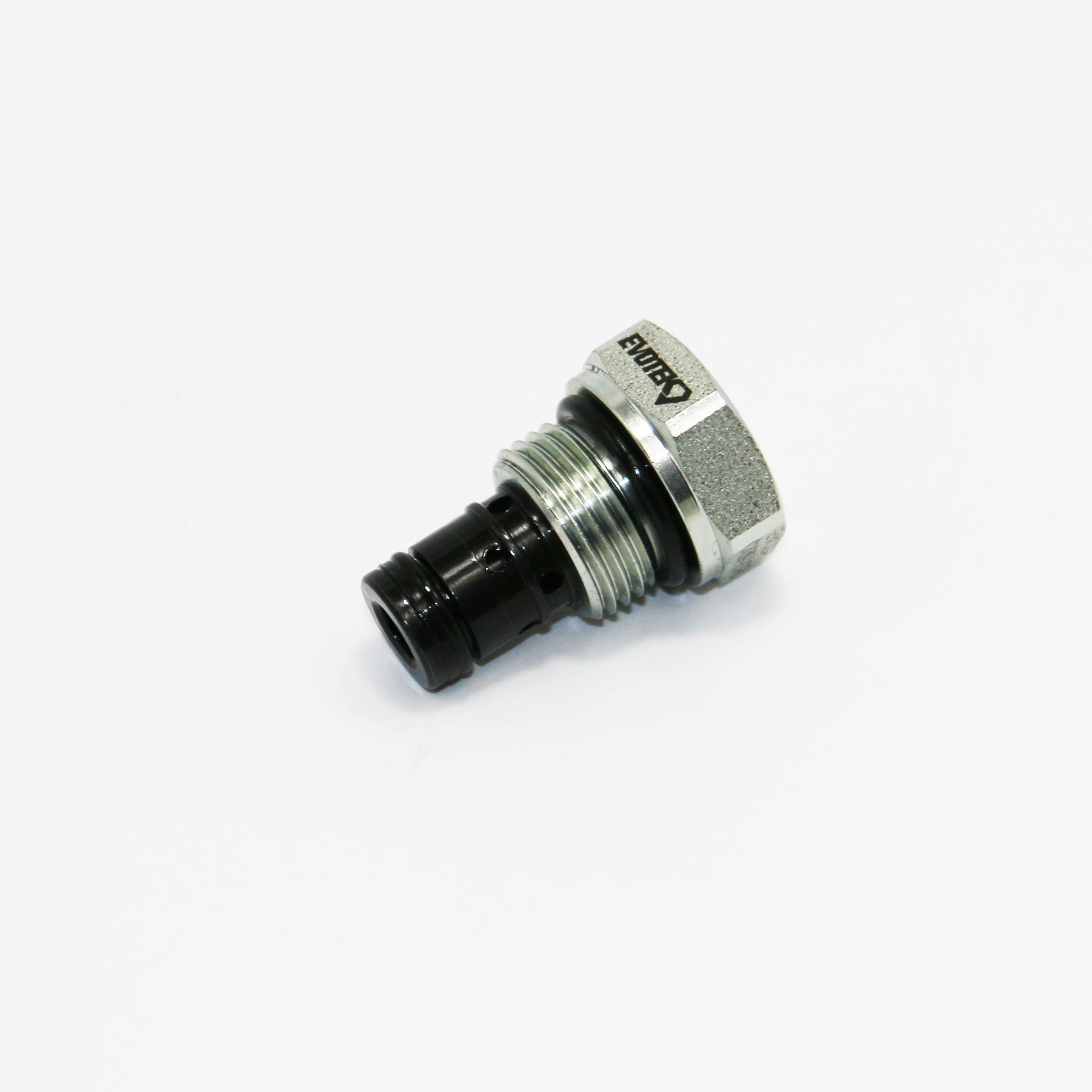

EVCD-CV08P
Description
Technical Specifications
Operating Pressure:250Bar
Flow：20L/min
Maximum internal leakage：2drops/min at 250bar
Operating temperature :-30°C to+120°C(-22°F to+250°F)
Cavity:VC08-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Operation
Pressure at①overcomes the spring-bias poppet and allows free flow①to②,
Flow in the opposite direction,from@ to ① siblocked by the poppet.
Questions regarding the product?
Additional information

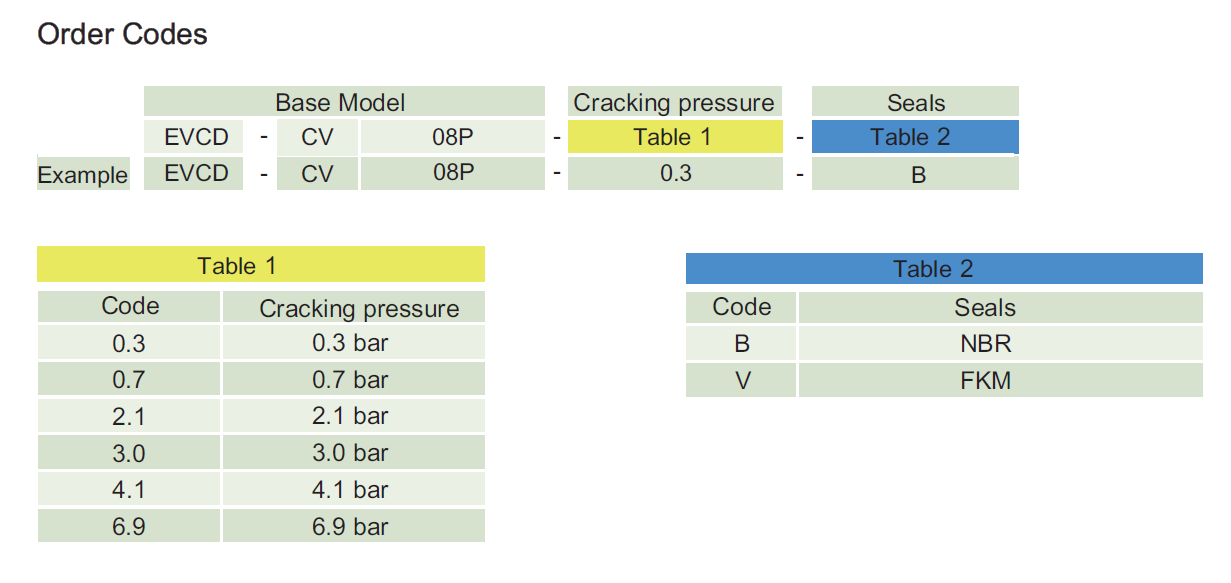

| Table1 | 0.3, 0.7, 2.1, 3.0, 4.1, 6.9 |
|---|---|
| Table2 | B, V |
