EVCD-CV10P
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Technical Specifications
Operating Pressure :350Bar
Flow:38L/min
Maximum internal leakage :3drops/min at 350bar
Operating temperature:-30°C to+120°C(-22°F to+250°F)

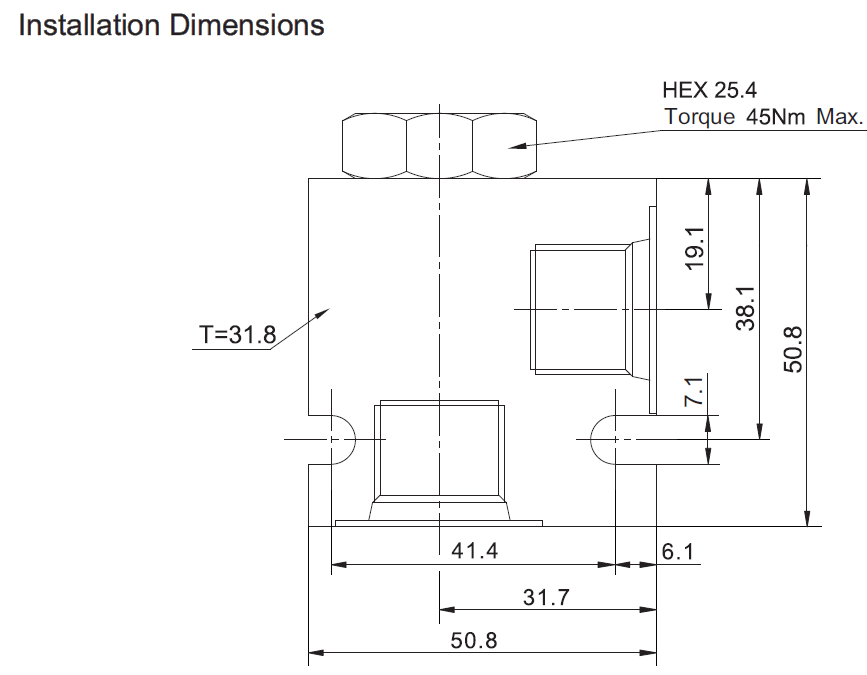

Cavity :VC10-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Operation
Pressure at over①comes the spring-bias poppet and allows free flow①to②,
Flow in the opposite direction,from②to①siblocked by the poppet。
Questions regarding the product?
Additional information

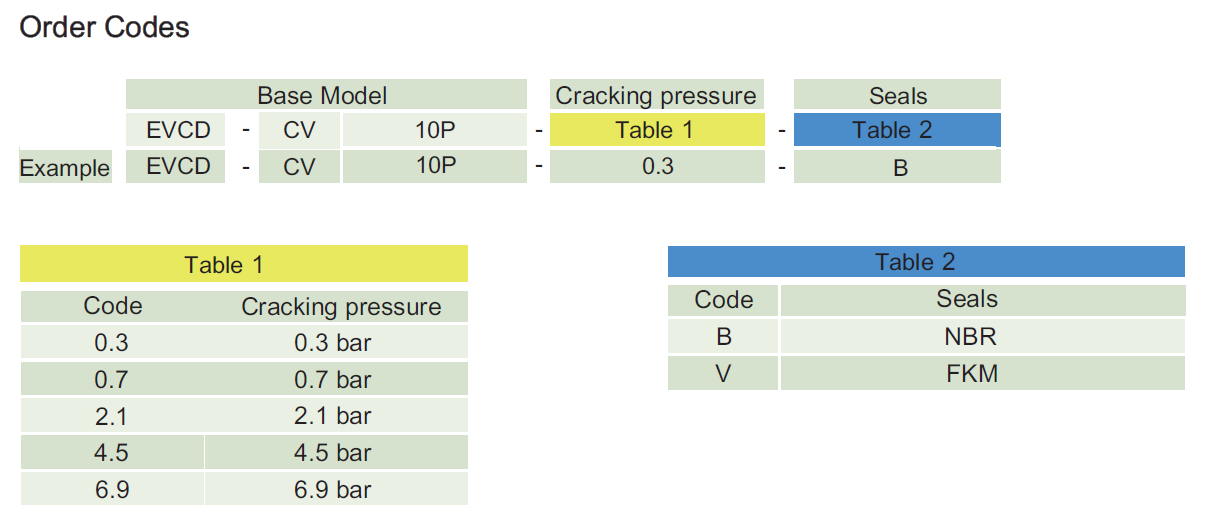

| Table1 | 0.3, 0.7, 2.1, 4.5, 6.9 |
|---|---|
| Table2 | B, V |
