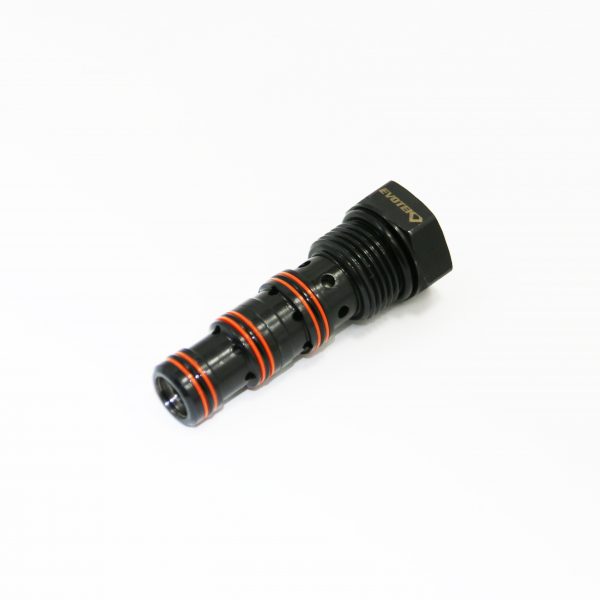

EVCD-DPC10

Technical Specifications

Operating Pressure:207Bar

Flow：19L/min

Maximum internal leakage ：2drops/min at 207bar

Pilot ratio:2.5:1

Operating temperature:-30°C to+120°C(-22°F to+250°F)

Cavity：VC08-4

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Low leakage design

Operation

It allows free flow from port ②to③,when normally blocking flow port ③to②,

Flow will be allowed from port ③to@when pressure is applied at port①。
