EVCD-LS10-30
Description
Technical Specifications
Operating Pressure :240Bar
Flow：30L/min
Maximum internal leakage :0.25ml/min at 240bar
Operating temperature:-30°C to+120°C(-22°F to+250°F)

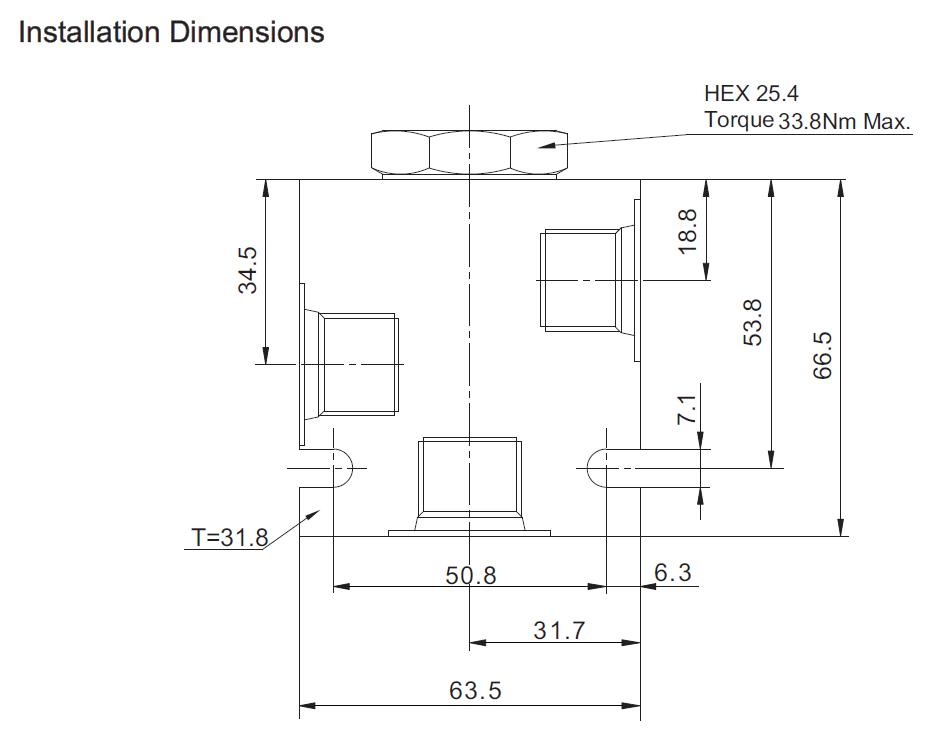

Cavity ：VC10-3
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
-Compact size
Industry common cavity
Low leakage design
Operation

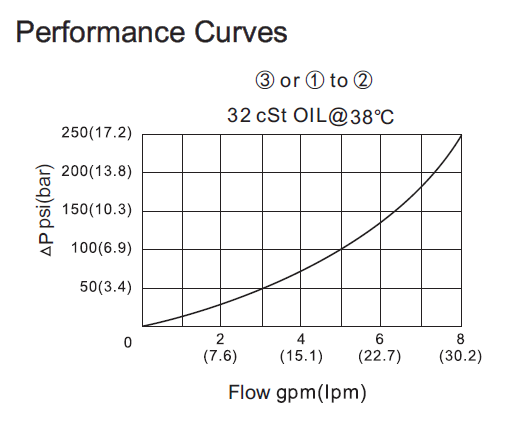

The valve will allow flow from the higher pressure port 1 or 3 to port 2
Questions regarding the product?
Additional information

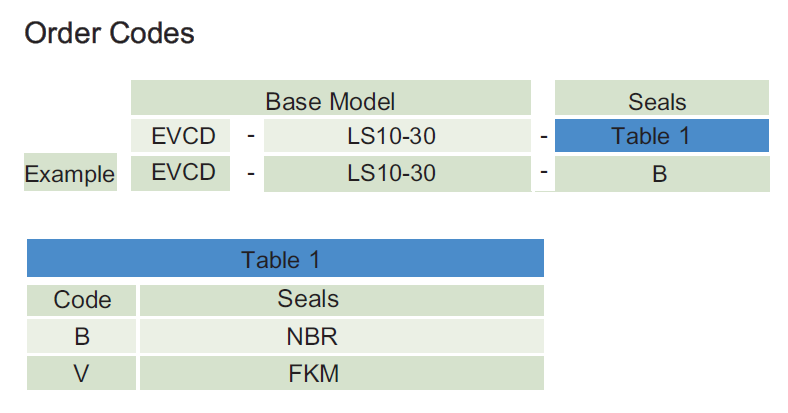

| Table1 | B, V |
|---|
