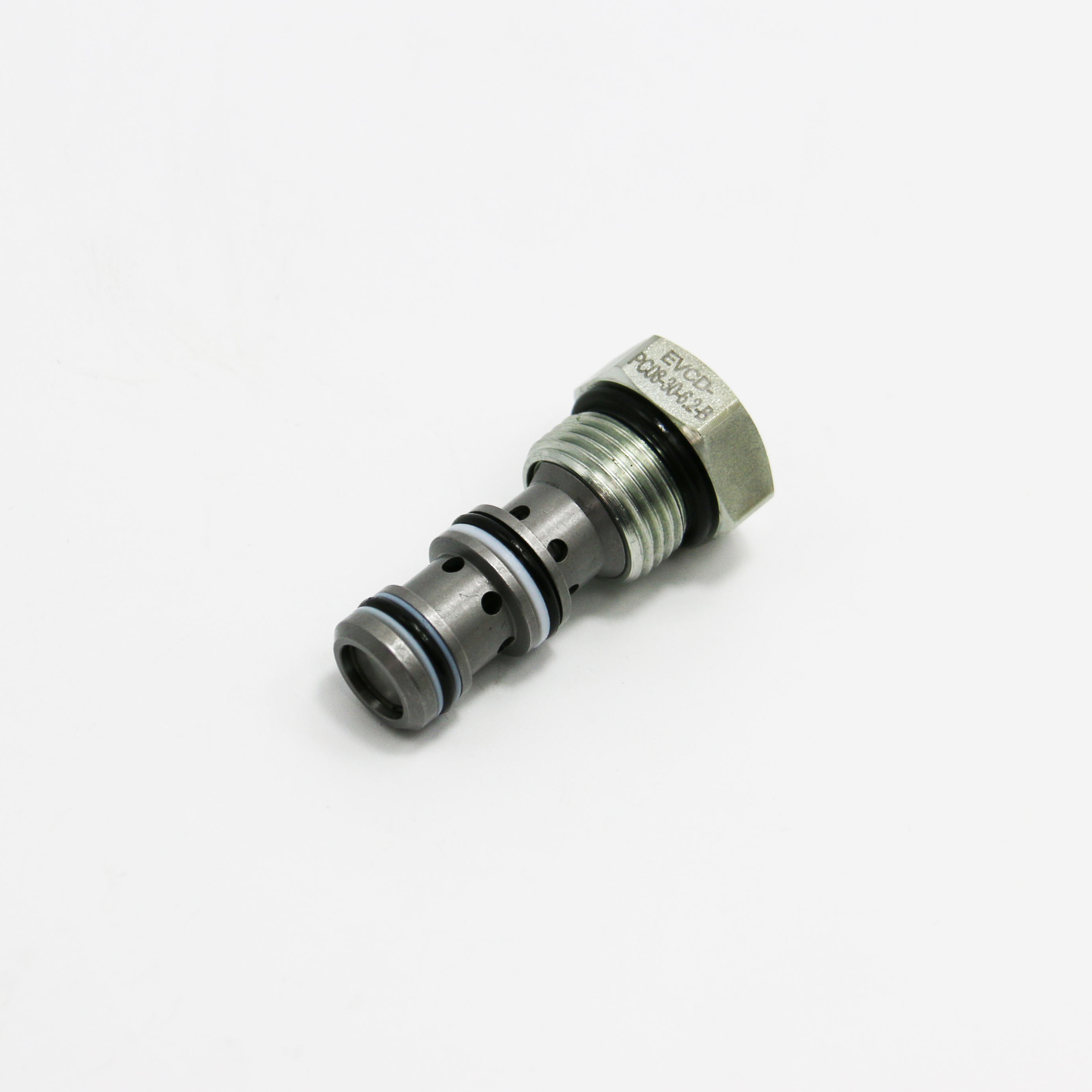

EVCD-PC08-30

Technical Specifications

Operating Pressure :240Bar

Flow：23L/min

Maximum internal leakage:

to②:0.25 ml/min at 240bar

to①:115 ml/min at240bar

to① : 0 ml/min at 240bar(with seals piston)

Pilot ratio:3:1

Operating temperature:-30°C to+120°C(-22°F to+ 250°F)

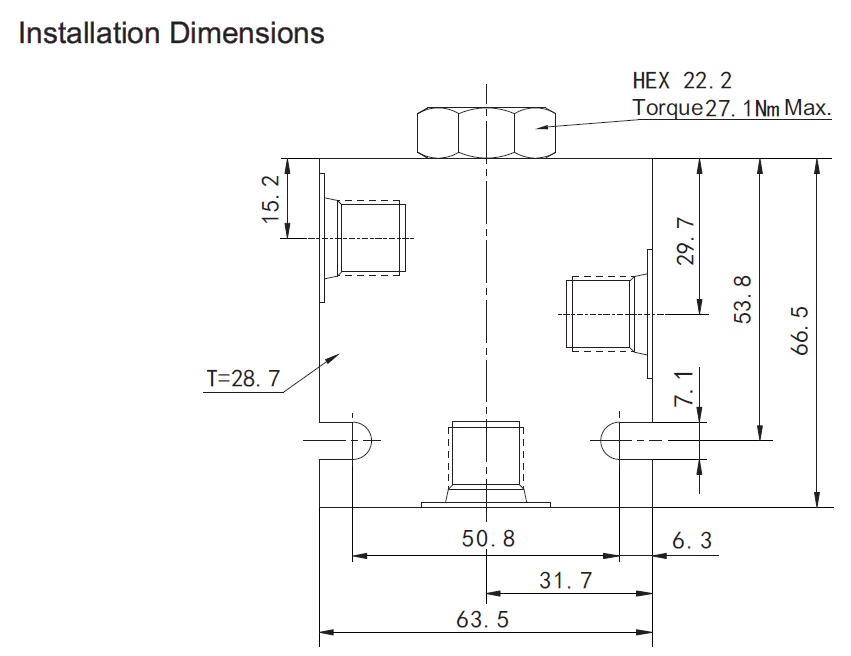

Cavity:VC08-3

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range :7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Low leakage design

Operation

It allows free flow from port ②to③,when normally blocking flow port ③to②,

Flow will be allowed from port ③to@when pressure is applied at port①。
