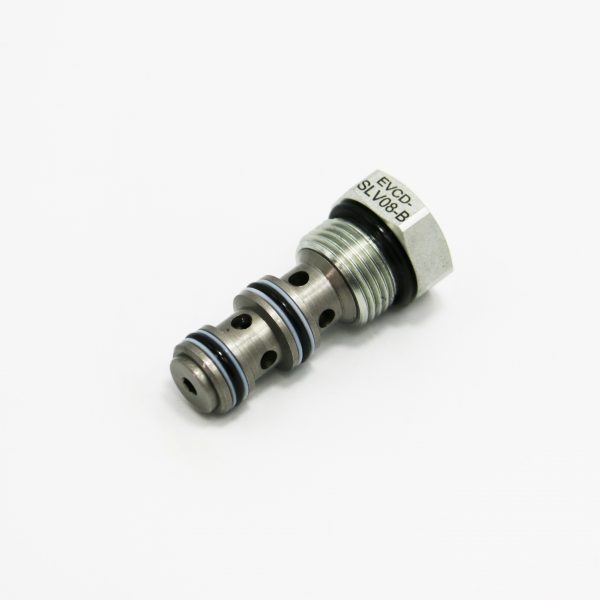

EVCD-SLV08
Description
Technical Specifications
Operating Pressure :240Bar
Flow：15L/min
Maximum internal leakage:2drops/min at 240bar
Operating temperature :-30°C to+120°C(-22°F to+250°F)
Cavity :VC08-3
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Operation

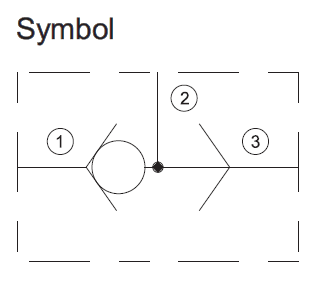

The valve will allow flow from the higher pressure port 1 or 3 to port 2
Questions regarding the product?
Additional information

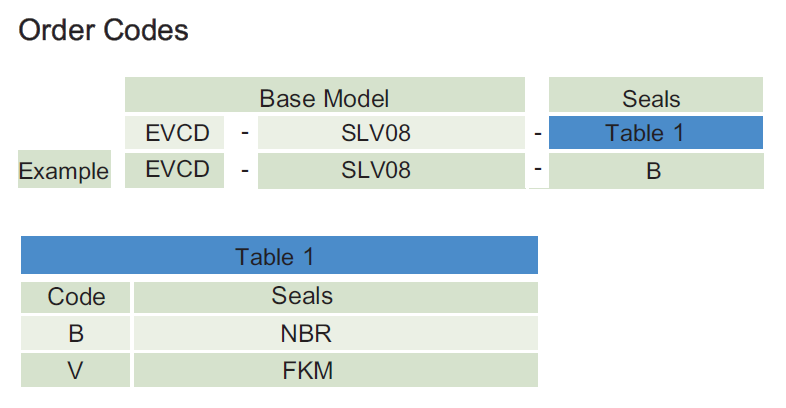

| Table1 | B, V |
|---|
