EVCD-SLV2-G18
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Technical Specifications
Operating Pressure ：350Bar
Flow:10L/min
Maximum internal leakage：5drops/min at 240bar
Operating temperature:-30°C to+120°C(-22°F to+250°F)

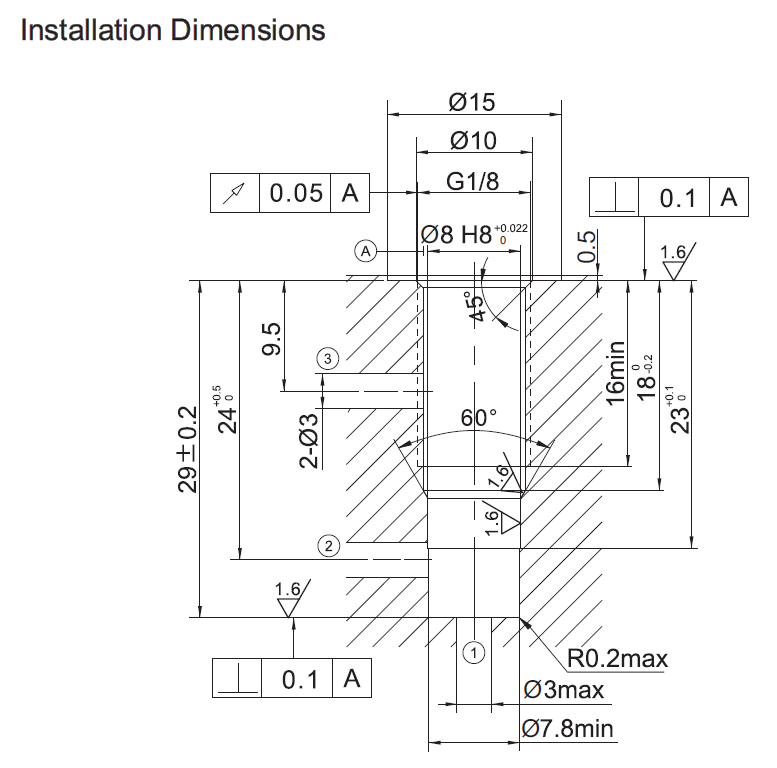

Cavity：VC10-3
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Operation

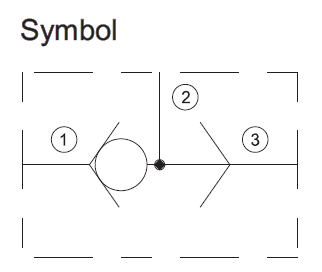

The valve will allow flow from the higher pressure port 1 or 3 to port 2
Questions regarding the product?
Additional information
| Table1 | EVCD-SLV2-G18 |
|---|
