EVCE-HF10-242
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Technical Specifications
Operating Pressure :207Bar
Flow:22.4L/min
Internal leakage：120ml/min at 207bar
Operating temperature:-30°C to+ 120°C(-22°F to+ 250°F)
Cavity:VC10-4
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Continuous-duty rated solenoid
Optional coil voltages and terminations
Operation
When de-energized, the EVCE-HF10-242 flow paths are port 2 to port 1, and port 3 to port 4.
When energized, the valve’s spool shifts to open port 3 to port 2, and port4 to port 1.
Questions regarding the product?

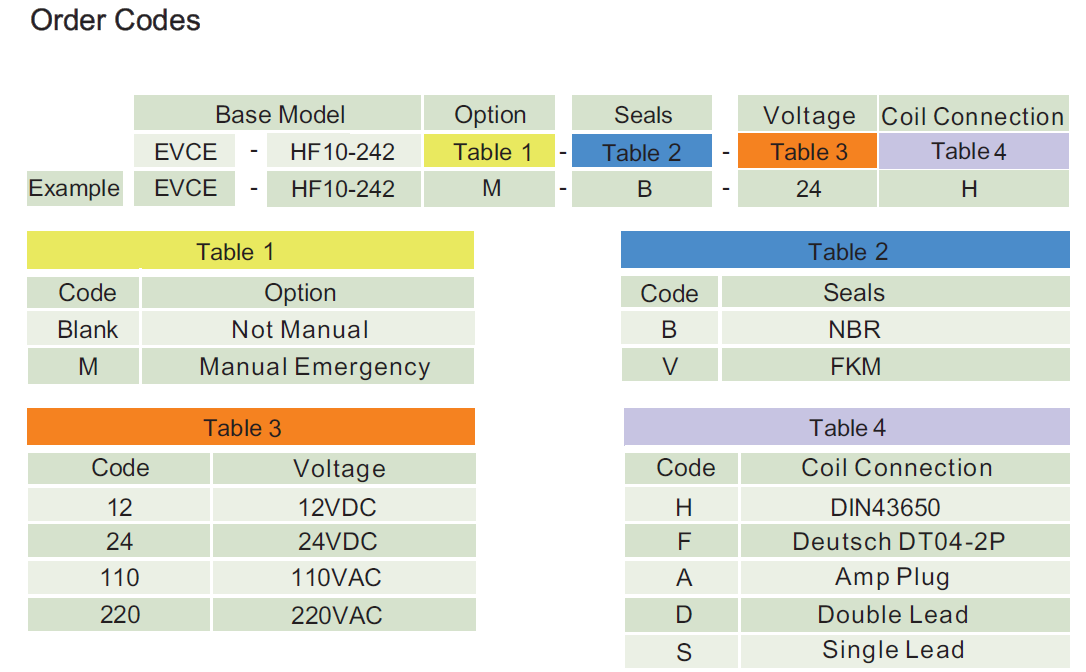

Additional information
| Table1 | M |
|---|---|
| Table2 | B, V |
| Table3 | 12, 24, 110, 220 |
| Table4 | H, F, A, D, S |
