EVCE-SV02-08-4NV

Technical Specifications

Operating Pressure:207Bar

Flow：11.4L/min

Internal leakage:82ml/min at 207bar

Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)

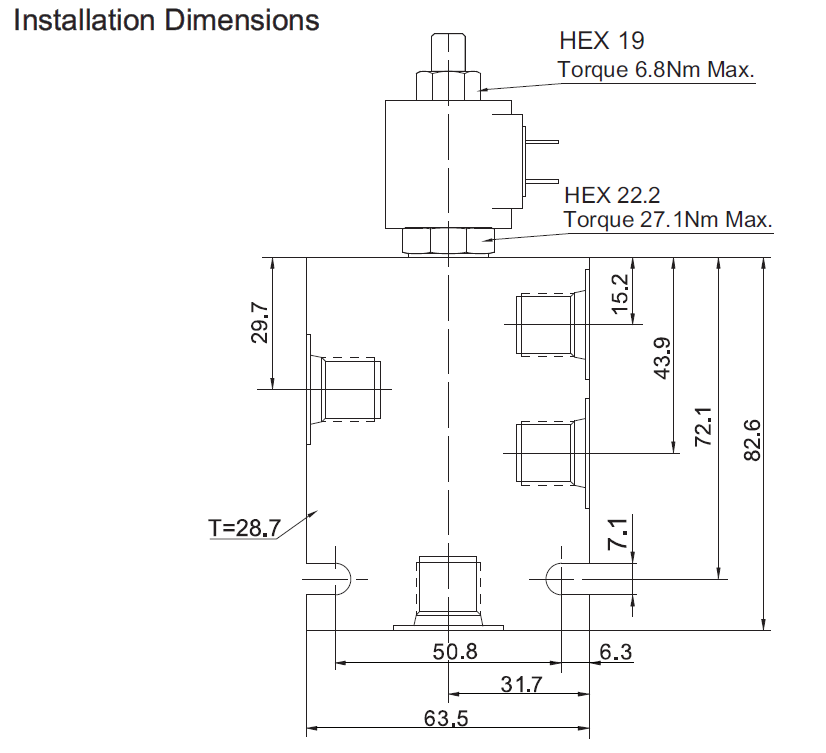

Cavity :VC08-4

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range：7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Continuous-duty rated solenoid

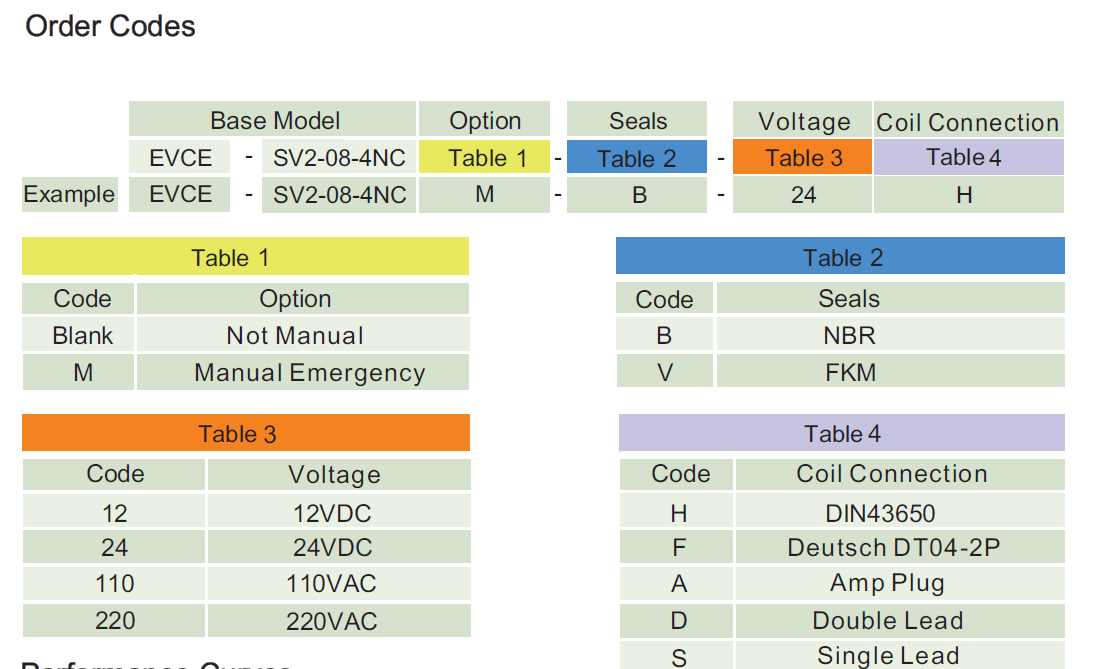

Optional coil voltages and terminations

Operation

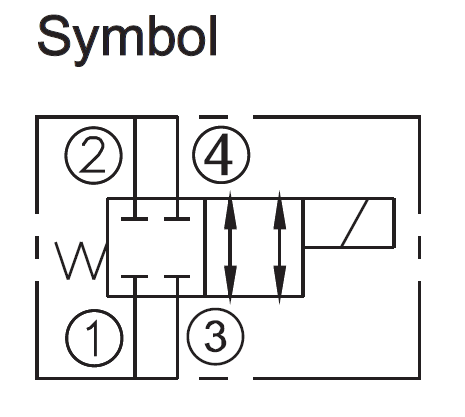

When energized, the EVCE-SV2-08-4NC flow paths are port 3 to port 4, and port 2 to port 1.

When de-energized, the valve’s spool shifts to block all ports.
