EVCE-SV08-28
Description
Technical Specifications
Operating Pressure :240Bar
Flow：19L/min
Internal leakage:5 drops/min at 240bar
Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)
Cavity ：VC08-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:7.4 to 420 cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Continuous-duty rated solenoid
Optional coil voltages and terminations
Operation
When de-energized, the EVCE-SV08-28 blocks flow in both directions. When energized,
the poppet opens the valve bi-directionally.
Questions regarding the product?

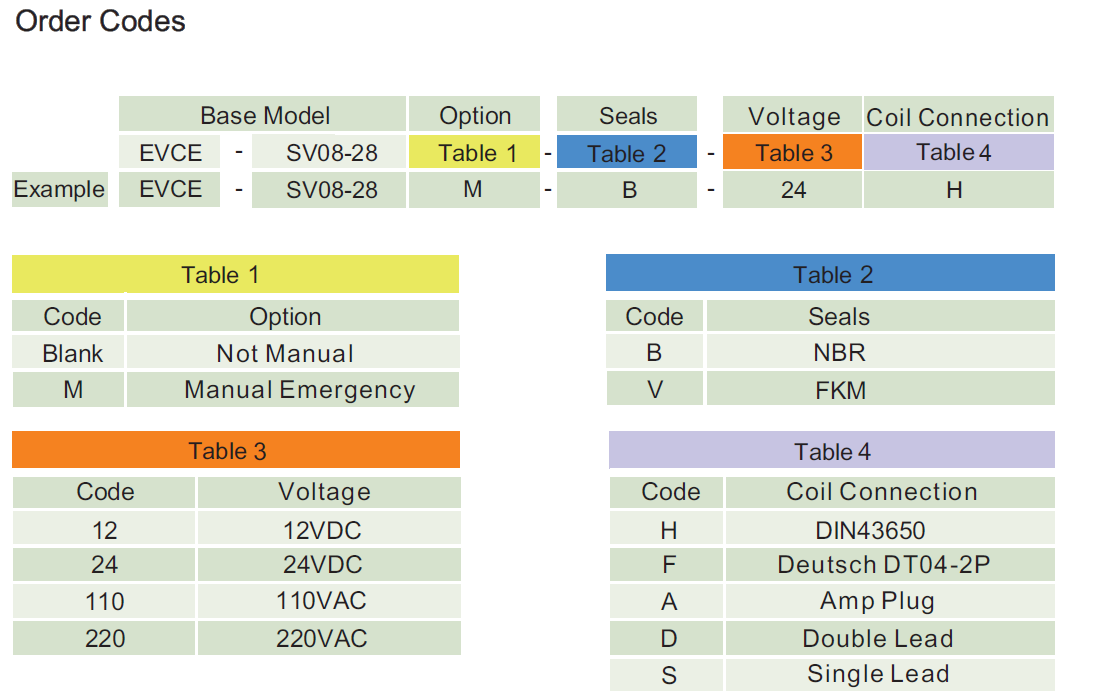

Additional information
| Table1 | M |
|---|---|
| Table2 | B, V |
| Table3 | 12, 24, 110, 220 |
| Table4 | H, F, A, D, S |
