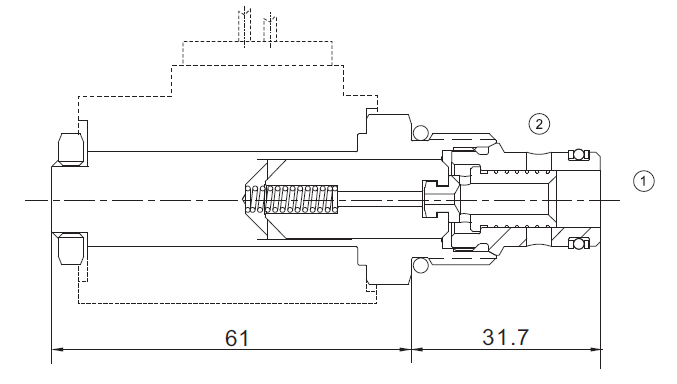

EVCE-SV10-24

Technical Specifications

Operating Pressure:207Bar

Flow：38L/min

Internal leakage:82ml/min at 207bar

Operating temperature :-30°C to + 120°C(-22°F to+ 250°F)

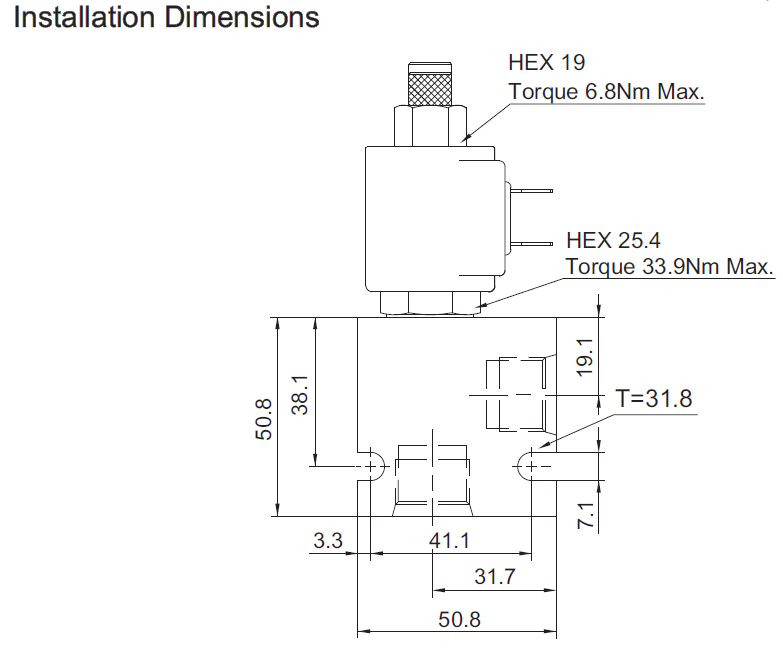

Cavity:VC10-2

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range :7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Continuous-duty rated solenoid

Optional coil voltages and terminations

Operation

When de-energized, the EVCE-SV10-24 blocks flow in both directions.

When energized, the valve’s spool shifts moves to allow bi-directional flow.
