EVCE-SV10-40

Technical Specifications

Operating Pressure :207Bar

Flow：23L/min

Internal leakage:82mI/min at 207bar

Operating temperature:-30°C to+ 120°C(-22°F to+ 250°F)

Cavity:VC10-4

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Continuous-duty rated solenoid

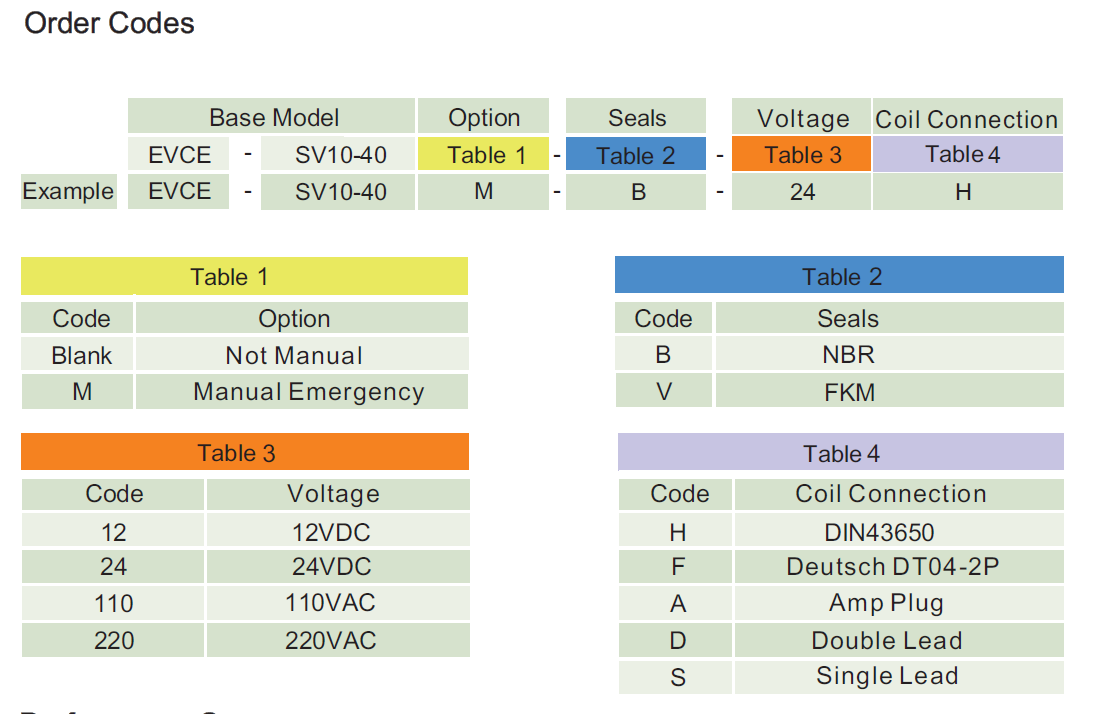

Optional coil voltages and terminations

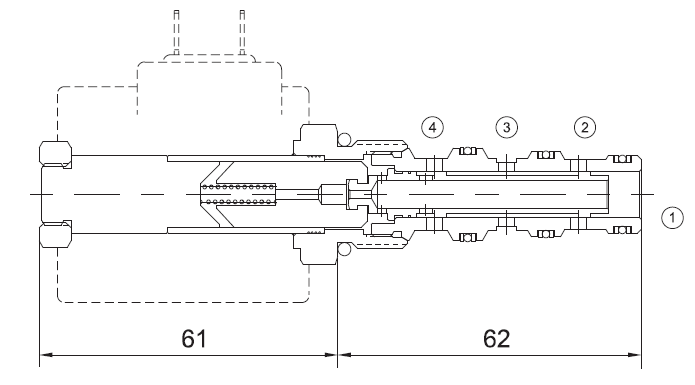

Operation

When de-energized, the EVCE-SV10-40 flow paths are port 3 to port 2, and port 4 to port 1.

When energized, the valve’s spool shifts to open port 3 to port 4, and port 1 to port2.
