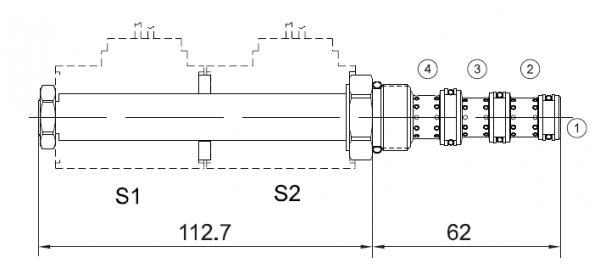

EVCE-SV10-47A

Technical Specifications

Operating Pressure:240Bar

Flow：19L/min

Internal leakage：300ml/min at 240bar

Operating temperature:-30°C to+ 120°C(-22°F to+ 250°F)

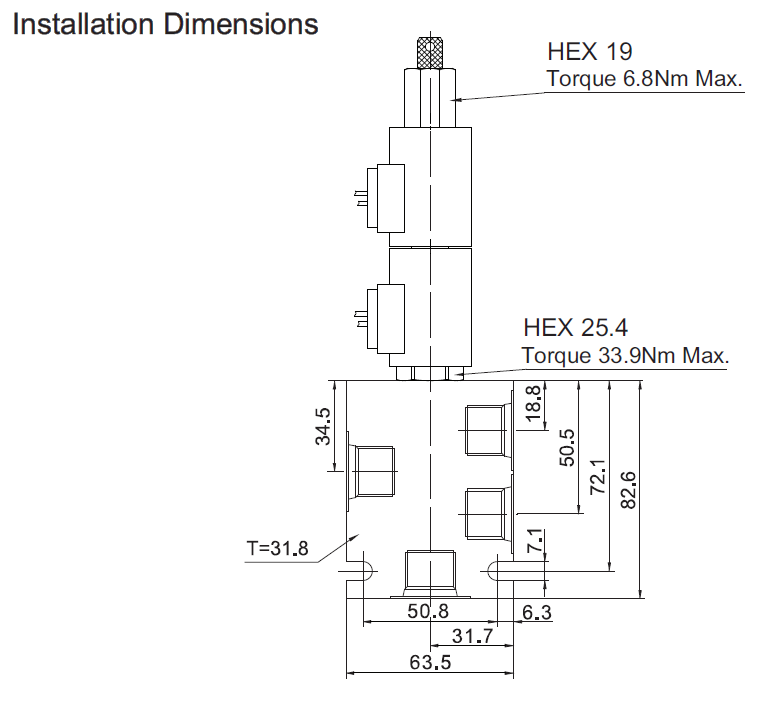

Cavity :VC10-4

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Continuous-duty rated solenoid

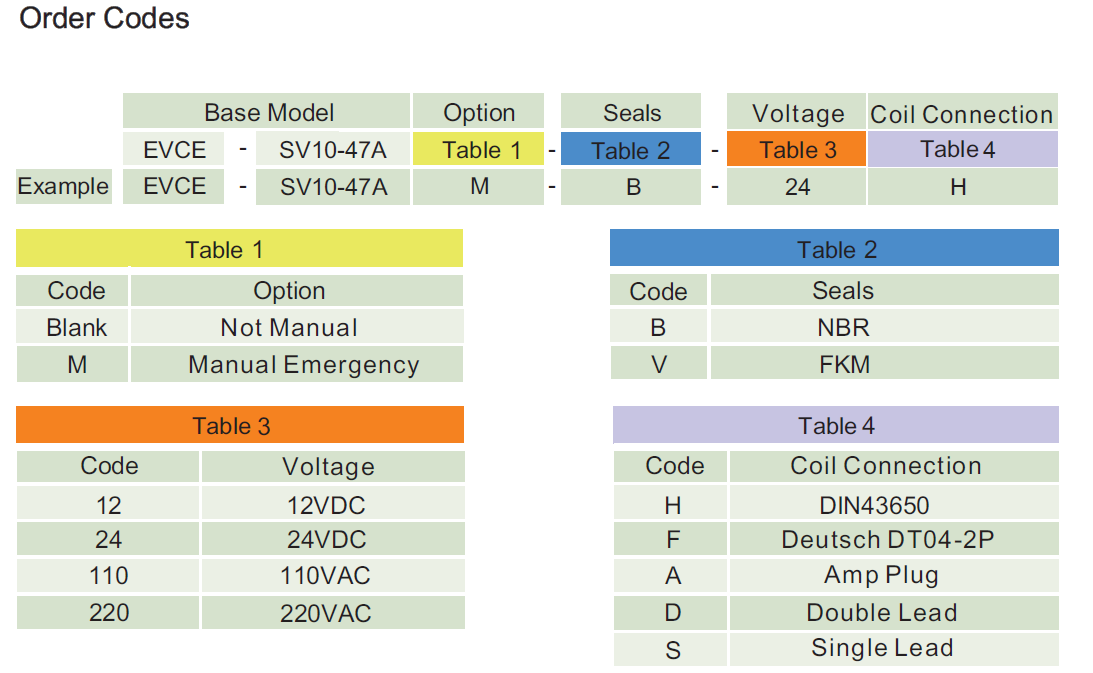

Optional coil voltages and terminations

Operation

When de-energized, the EVCE-SV10-47A blocks cylinder ports, while allowing flow from 3 to 1.

When coil 1 is energized, flow is allowed from 3 to 2, and from 4 to 1. When coil 2 is energized, flow is allowed from 3 to 4, and from 2 to 1.
