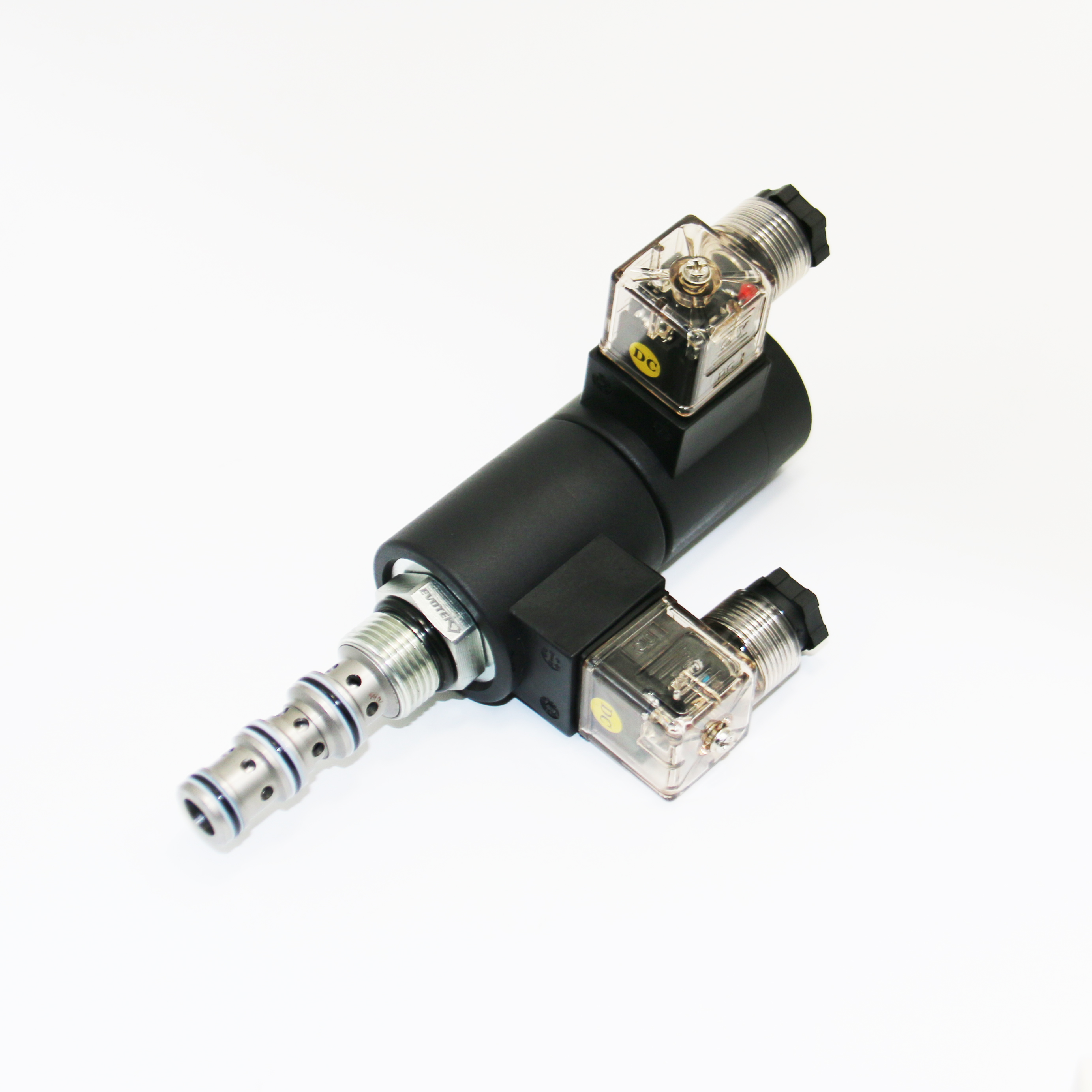

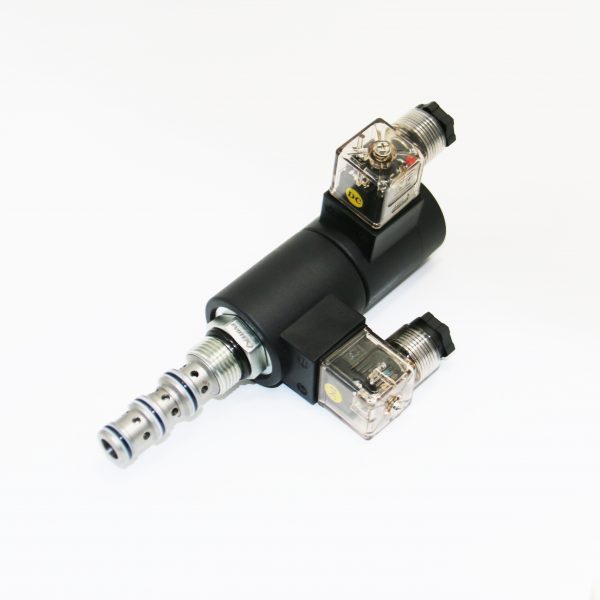

EVCE-SV10-47D
Description
Technical Specifications
Operating Pressure :240Bar

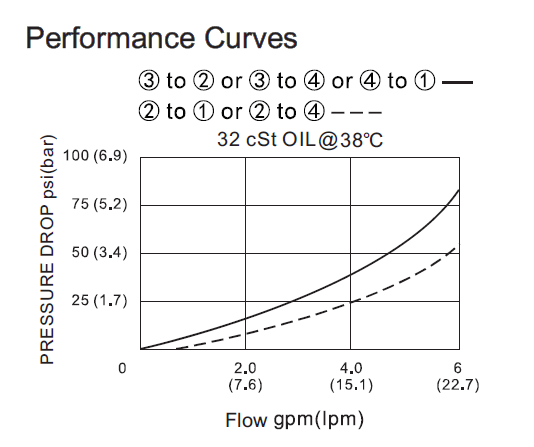

Flow:23L/min
Internal leakage :164ml/min at 240bar
Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)

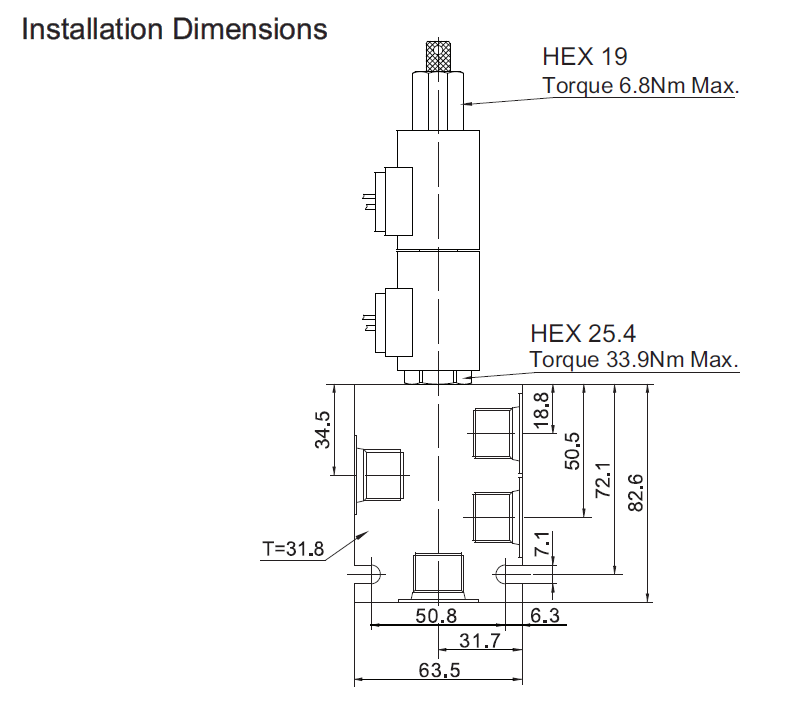

Cavity :VC10-4
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Continuous-duty rated solenoid
Optional coil voltages and terminations
Operation

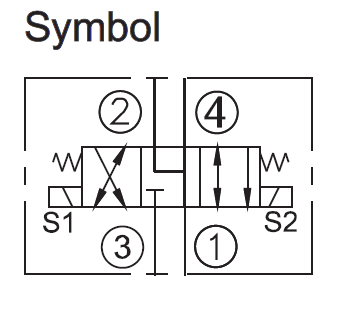

When de-energized, the EVCE-SV10-47D blocks inlet port 3, while allowing flow from 2and4 to 1. When coil 1is energized, flow is allowed from 3to4, and from 2to 1. When coil2 isenergized, flw is allowed from 3 to 2, and from 4 to 1.
Questions regarding the product?

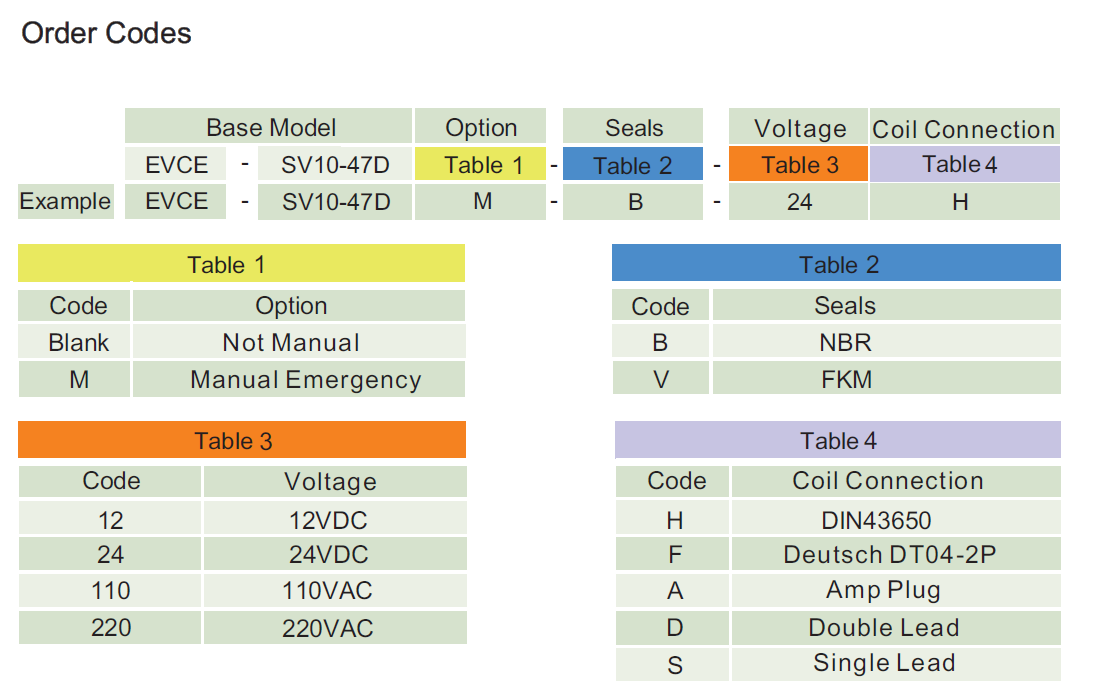

Additional information
| Table1 | M |
|---|---|
| Table2 | B, V |
| Table3 | 12, 24, 110, 220 |
| Table4 | H, F, A, D, S |
