EVCE-SV2-10-2NOR

Technical Specifications

Operating Pressure:207Bar

Flow：68L/min

Internal leakage:3 drops/min at 207bar

Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)

Cavity :VC10-2

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range :7.4 to 420cSt.

Features

Hardened seat for long life

.Compact size

Industry common cavity

Continuous-duty rated solenoid

Optional coil voltages and terminations

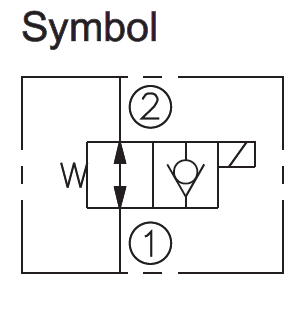

Operation

When de-energized,the EVCE-SV2-10-2NOR poppet lifts to open from port 2 to port 1.

In this mode, flow is also allowed from port 1 to port 2. When energized, the cartridge

acts as a check valve, blocking flow from port 2 to port 1, while allowing flow in the

reverse direction.
