EVCE-SV6-12-2NO
Description
Technical Specifications
Operating Pressure:350Bar
Flow：150L/min
Internal leakage:5 drops/min at 350bar
Operating temperature:-30°C to+ 120°C(-22°F to+ 250°F)
Cavity :VC12-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Continuous-duty rated solenoid
Optional coil voltages and terminations
Operation
When de-energized, the poppet allows flowin both directions.When energized,the
valve blocks flow in both directions
Questions regarding the product?

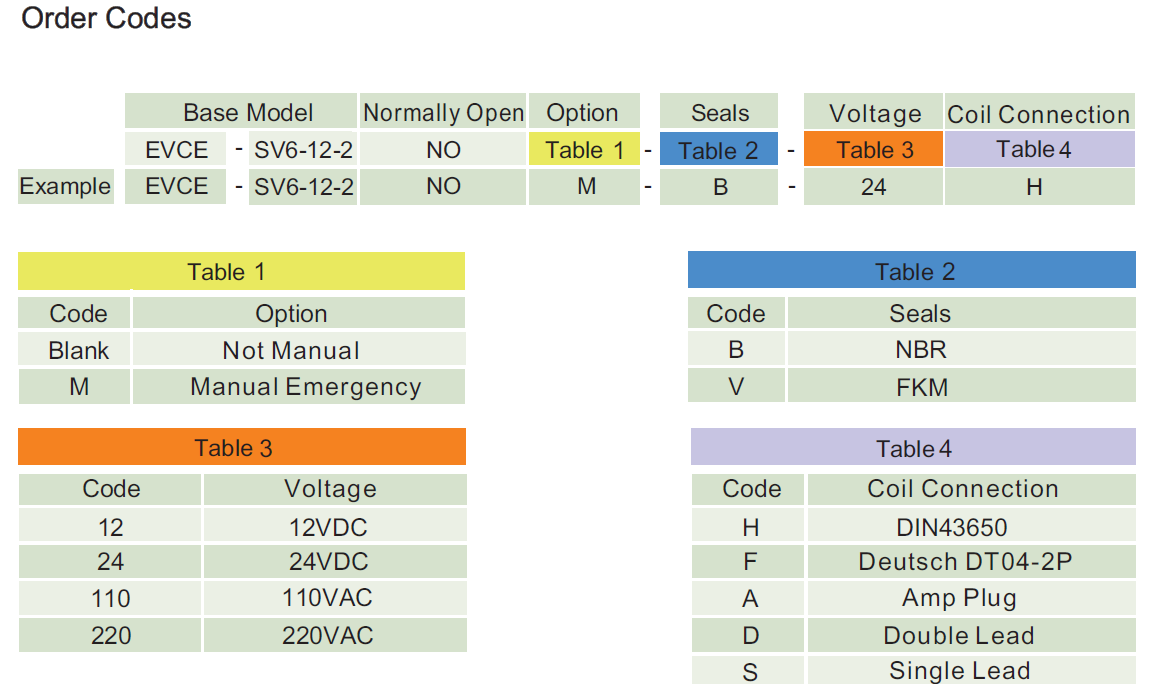

Additional information
| Table1 | M |
|---|---|
| Table2 | B, V |
| Table3 | 12, 24, 110, 220 |
| Table4 | H, F, A, D, S |
