EVCP-CBCA

Technical Specifications

Operating Pressure :

EVCP-CBCA: 280bar

EVCP-CBCG:350bar

EVCP-CBCH: 350bar

Flow：

60L/minMaximum internal leakage:5drops/min (Max to 85% of nominal setting)

Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)

Cavity:T-11A

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range :7.4 to420cSt.

Features

The setting value of the balance valve should be at least 1.3 times of the load pressure value.

Backpressure at port 2 adds to the effective relief setting at a ratio of 1 plus the pilot ratio times

the back pressure

Reseat exceeds 85% of set pressure when the valve is standard set. Settings lower than the standard set pressure may result in lower reseat percentages

Operation

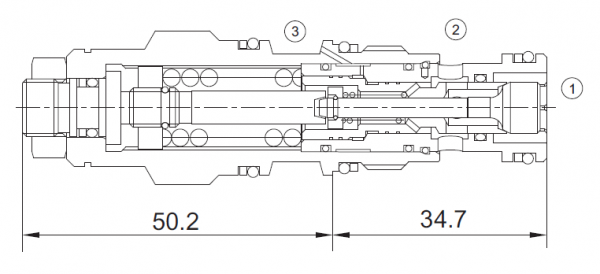

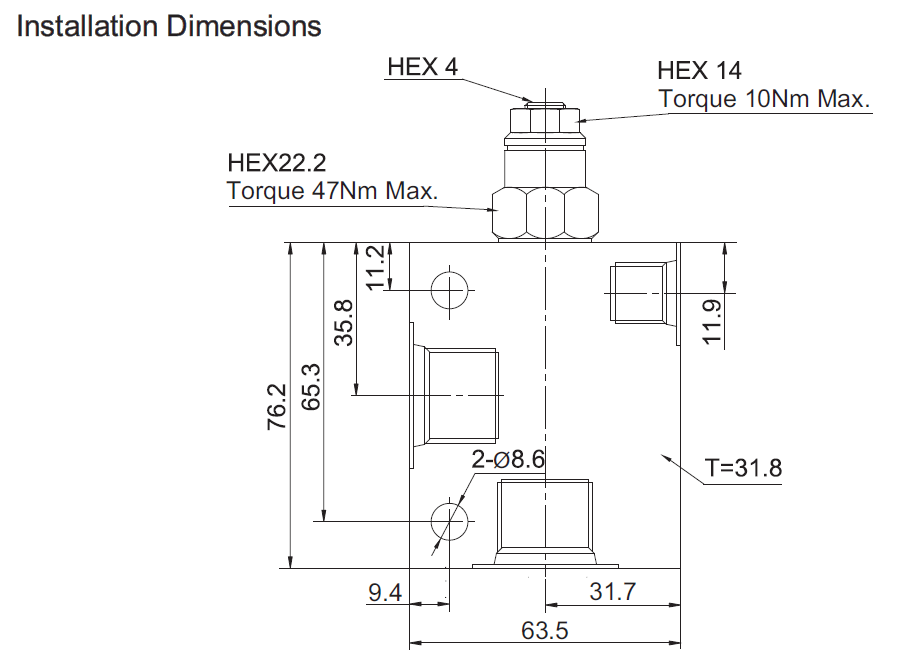

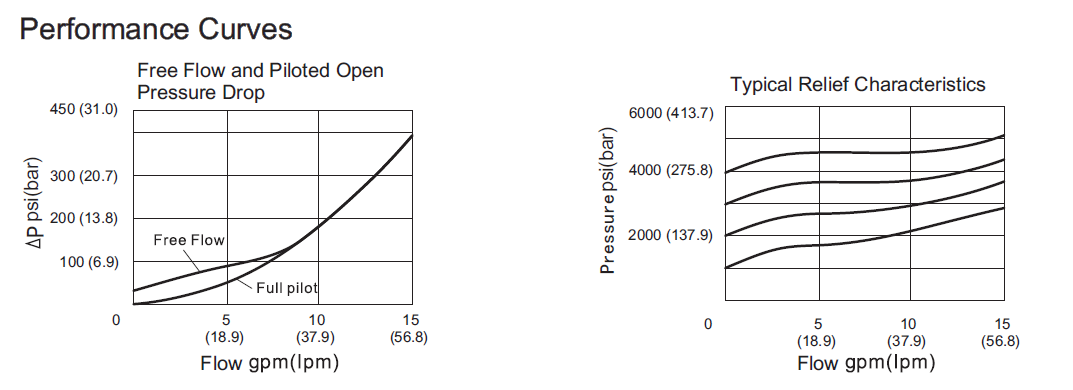

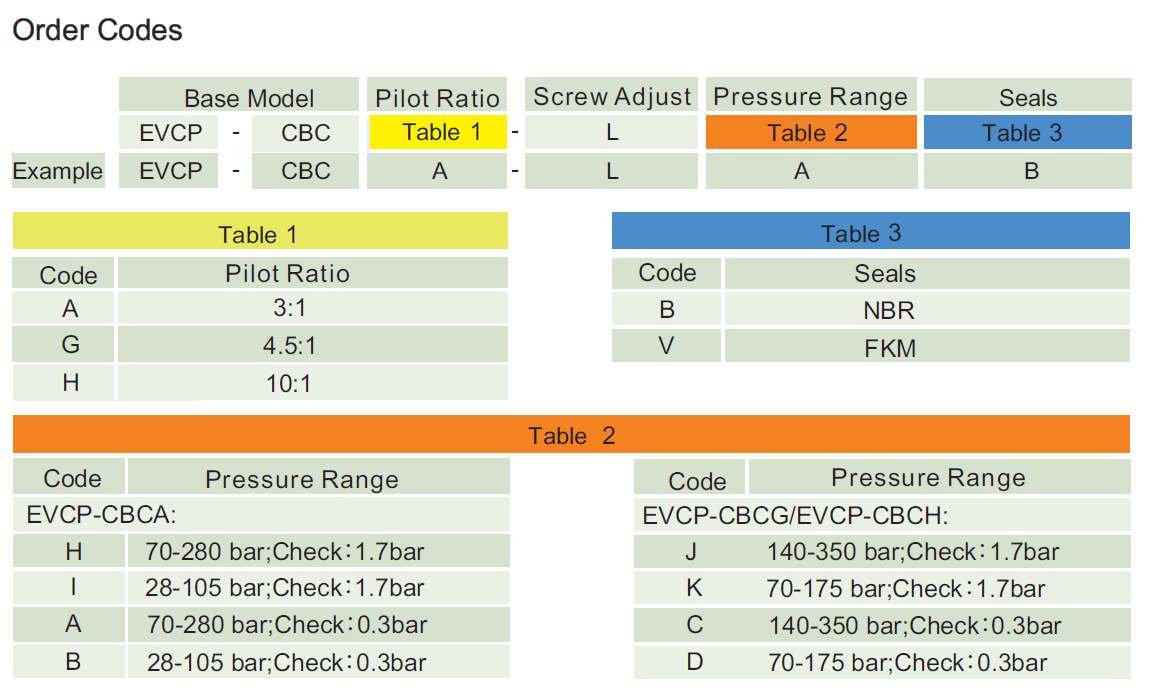

Counterbalance Valve with pilot assist are meant to control an overrunning load. The check

valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting,

pilot-assisted relief valve controls flow from port 1 to port 2.Pilot assist at port 3 lowers the

effective setting of the relief valve at a rate determined by the pilot ratio.Other names for this

valve include motion control valve and over-center valve.
