EVCP-PR50-36

Technical Specifications

Operating Pressure :

Port1:240Bar

Port2:240Bar

Port3:69Bar

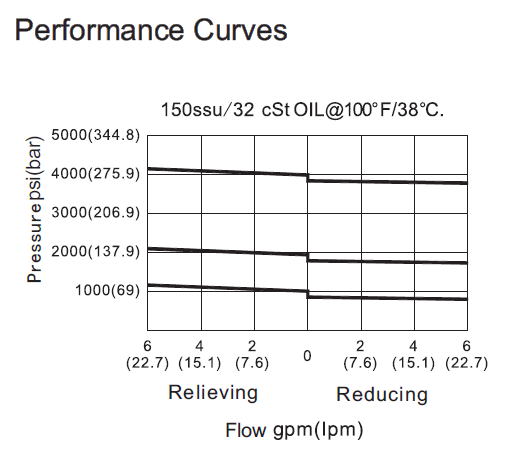

Flow：56.8L/min

Maximum pilot flow：0.17 L/min

Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)

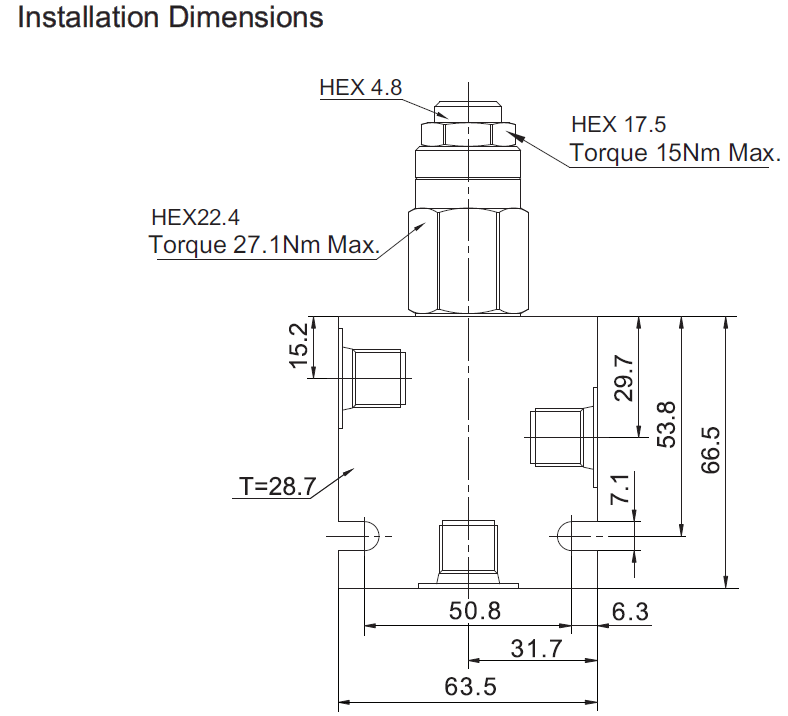

Cavity:VC10-3

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range：7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Low leakage design

Fast cosing and seating

Operation

In its steady state, theEVCP-PR10-36 allows flow to pass bidirectionally from port 2 to port 1,

with the spring chamber constantly drained at port 3. Upon attainment of a predetermined

pressure at port 1, the spool shifts to restrictin let flow from port 2, thereby regulating pressure

at port 1.In this mode the valve will also relieve port 1 to port 3.
