EVCP-RV10
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Technical Specifications
Operating Pressure:315Bar
Flow：10L/min
Maximum internal leakage:5drops/min (Max to 80% of nominal setting)
Operating temperature:-30°C to+ 120°C(-22°F to+ 250°F)
Cavity :VC10-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Fast closing and seating
Operation

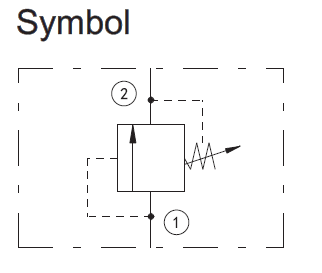

EVCP-RV10 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to
foce the spring opposed poppet off its seat.
Questions regarding the product?
Additional information

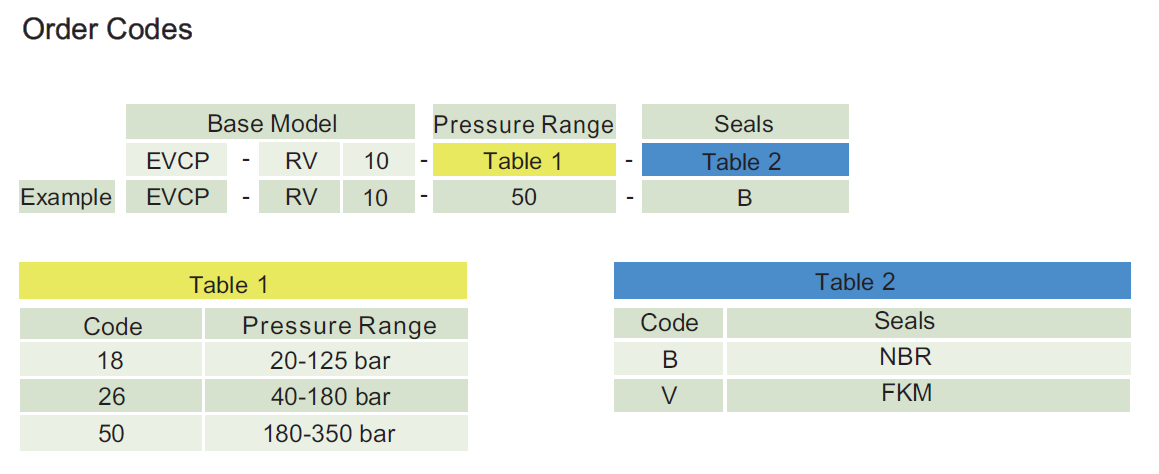

| Table1 | 18, 26, 50 |
|---|---|
| Table2 | B, V |
