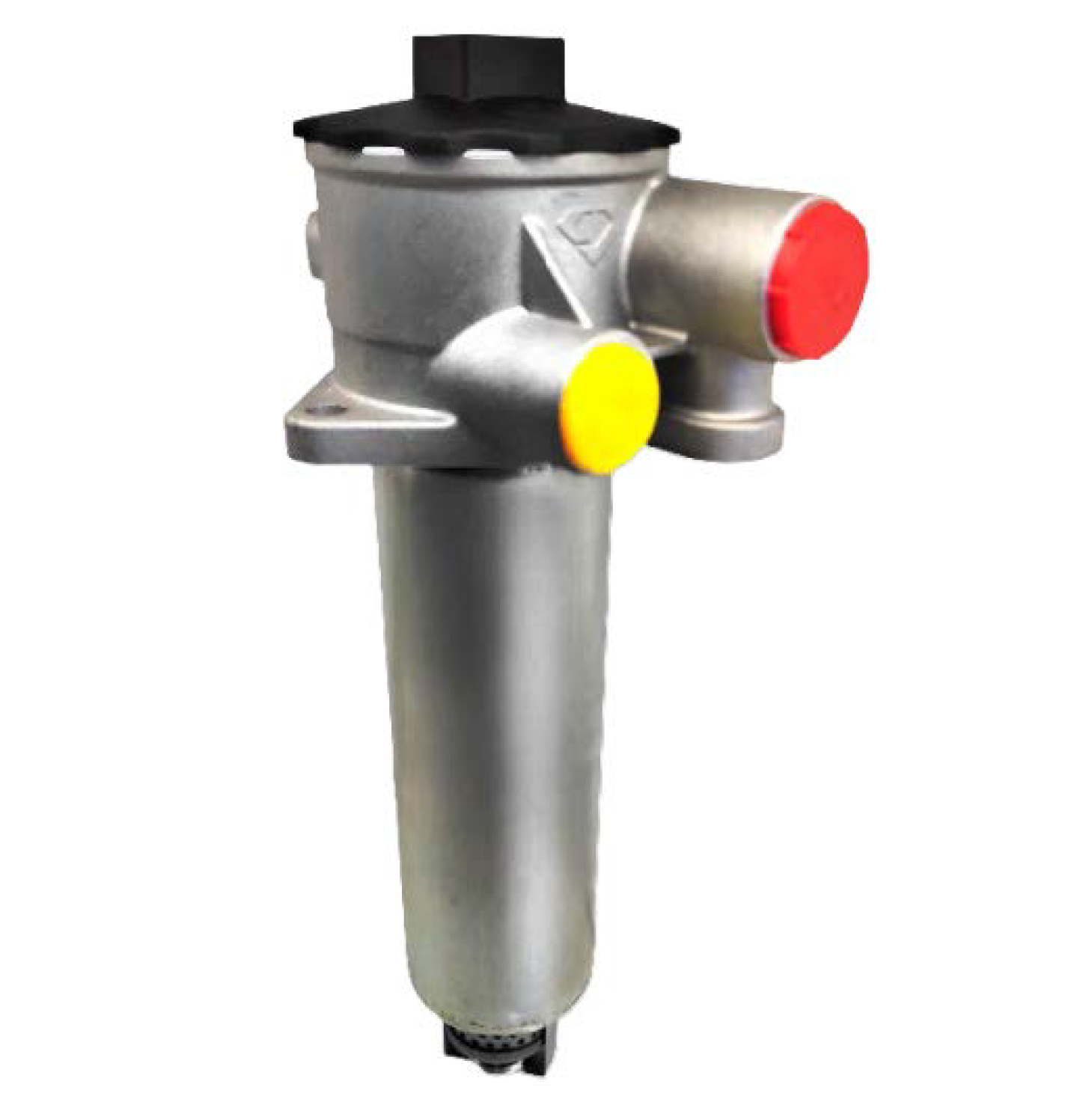

EFTS

Product Description

• Operating pressure up to 10 bar
• 80 l/min max. flow rate
• installation in Tank-top
• application in Waste management trucks,Mobile cranes, Power packs, Wheeled loaders and Drilling equipment
• compliant with industry relevant ISO standards(see ISO test below)

Technical Specifications

Application:Tank-top return filter

Port Sizes:Threaded Connections according to BSP and NPT standard in 1” andSAE20

Flow Rate:max. 80 l/min

Operating Pressure:max. 10bar

Burst Pressure: min. 30 bar

Element Collapse Pressure:10 bar

By-pass Opening Pressure:Δp=2.5 bar ±10%

Material Seals:NBR or FPM (-25°C to 100°C)

Filter Head:Aluminium

Filter Bowl:Aluminium

Compatibility:Suitable for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable oils (for use with water or other fields please contact our technical department)

Tested according to ISO standards:

ISO2941 Collapse/burst resistance

ISO2942 Fabrication integrity

ISO2943 Material compatibility integrity

ISO3723 Method for end load test

ISO3724 Flow fatigue characteristics

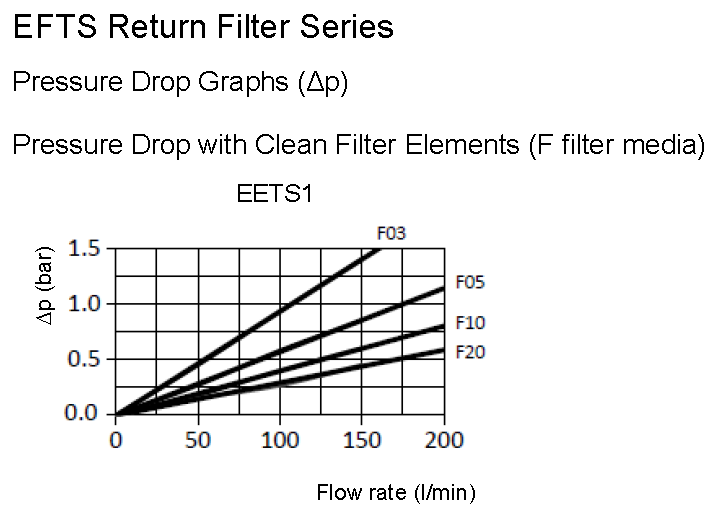

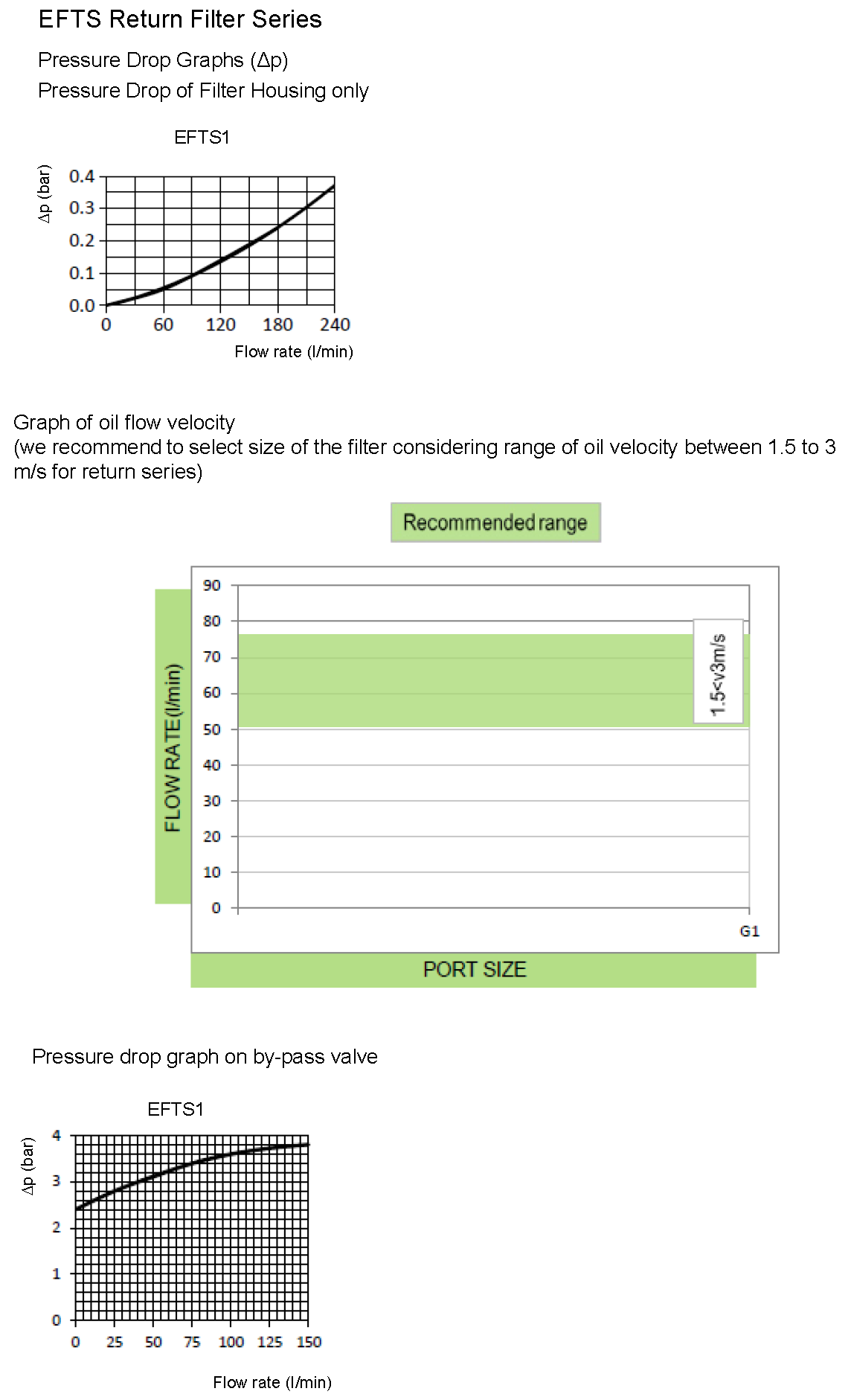

ISO3968 Pressure Drop vs. Flow Rate

ISO16889 Multi-Pass Test
