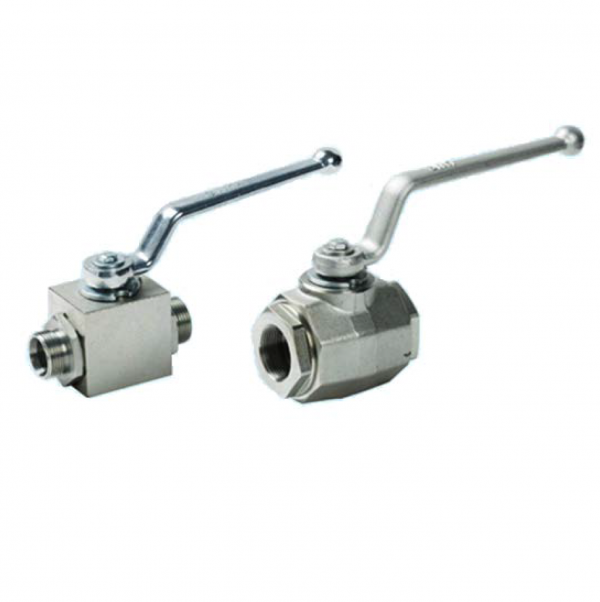

EHAB&EHAM

Product Description

Operating pressure up to 500 bar DN up to 50

Application in Mobile Equipment, Hydraulic systems, Agricultural machines, Machine tools, Plastic injection moulding machines

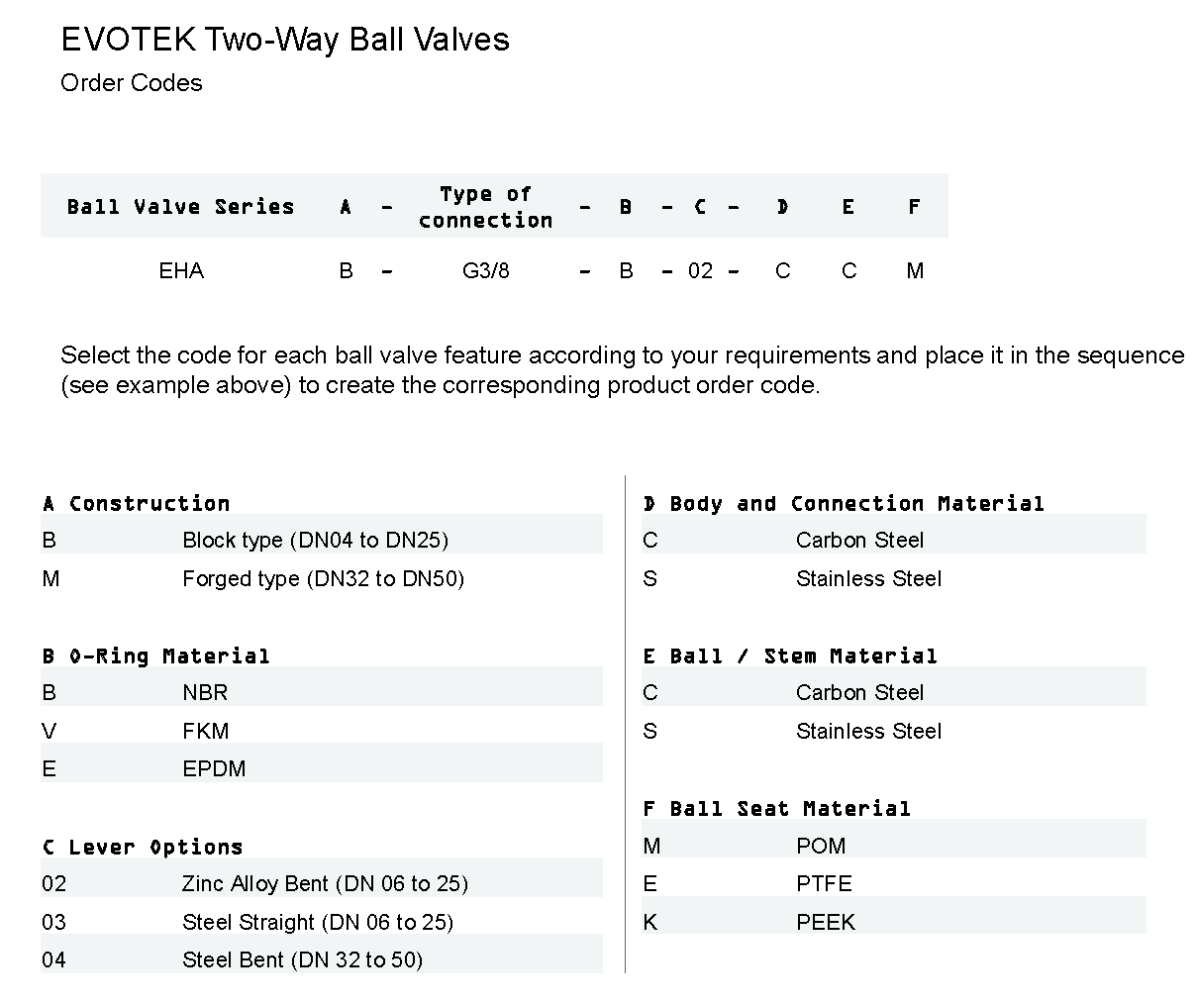

All ball valves can be supplied with the following options: Actuator, Limit controls & Lock

Technical Specifications

Application: In-line assembly

Standard Connections Styles: Female BSP thread (DIN ISO 228)

Female NPT thread (ANSI B1.20.1)

Female UN/UNF thread (SAE J 514)

24° Cone Connection light Series (DIN 2353 / ISO 8434-1)

24° Cone Connection Heavy Series(DIN 2353 / ISO 8434-1)

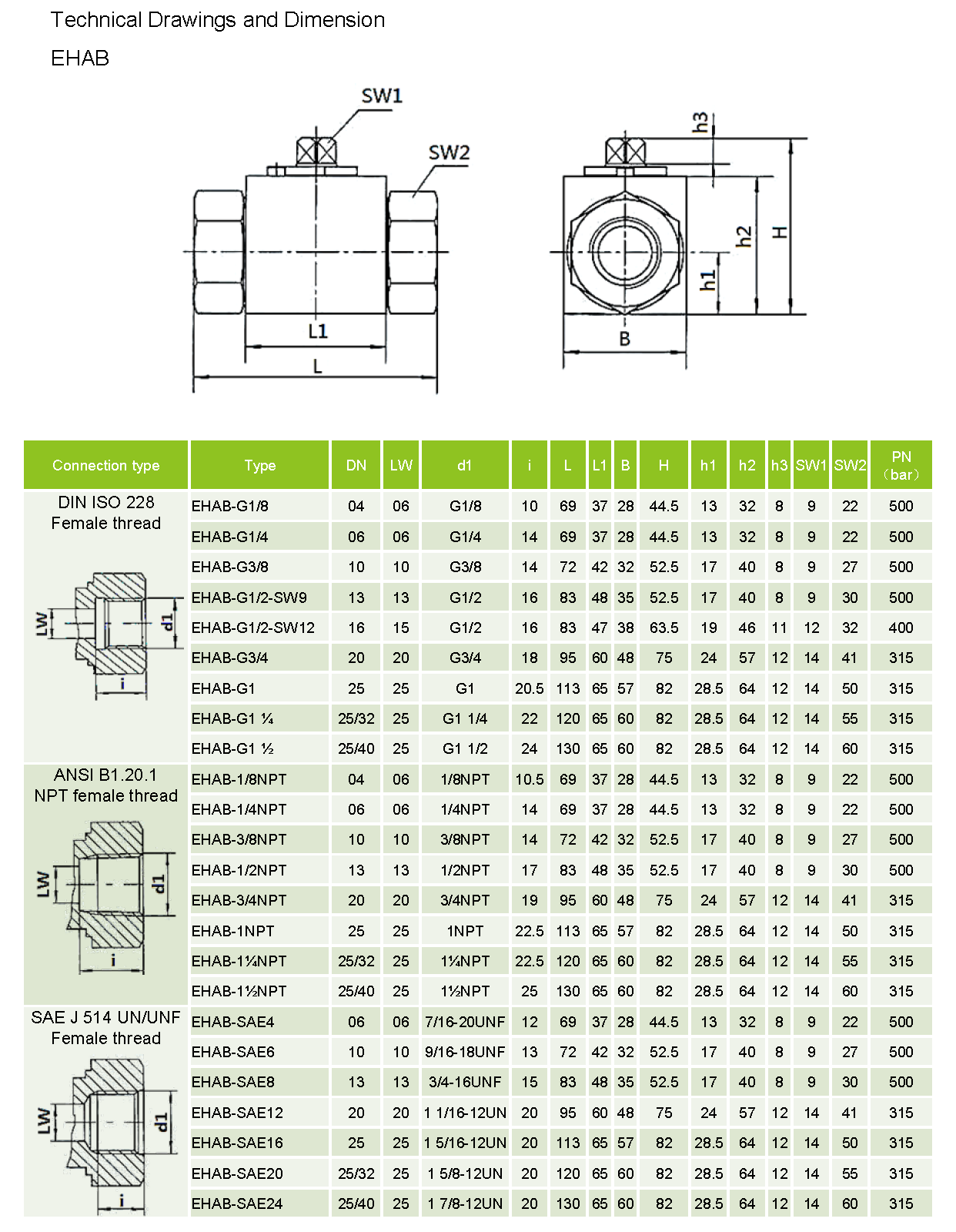

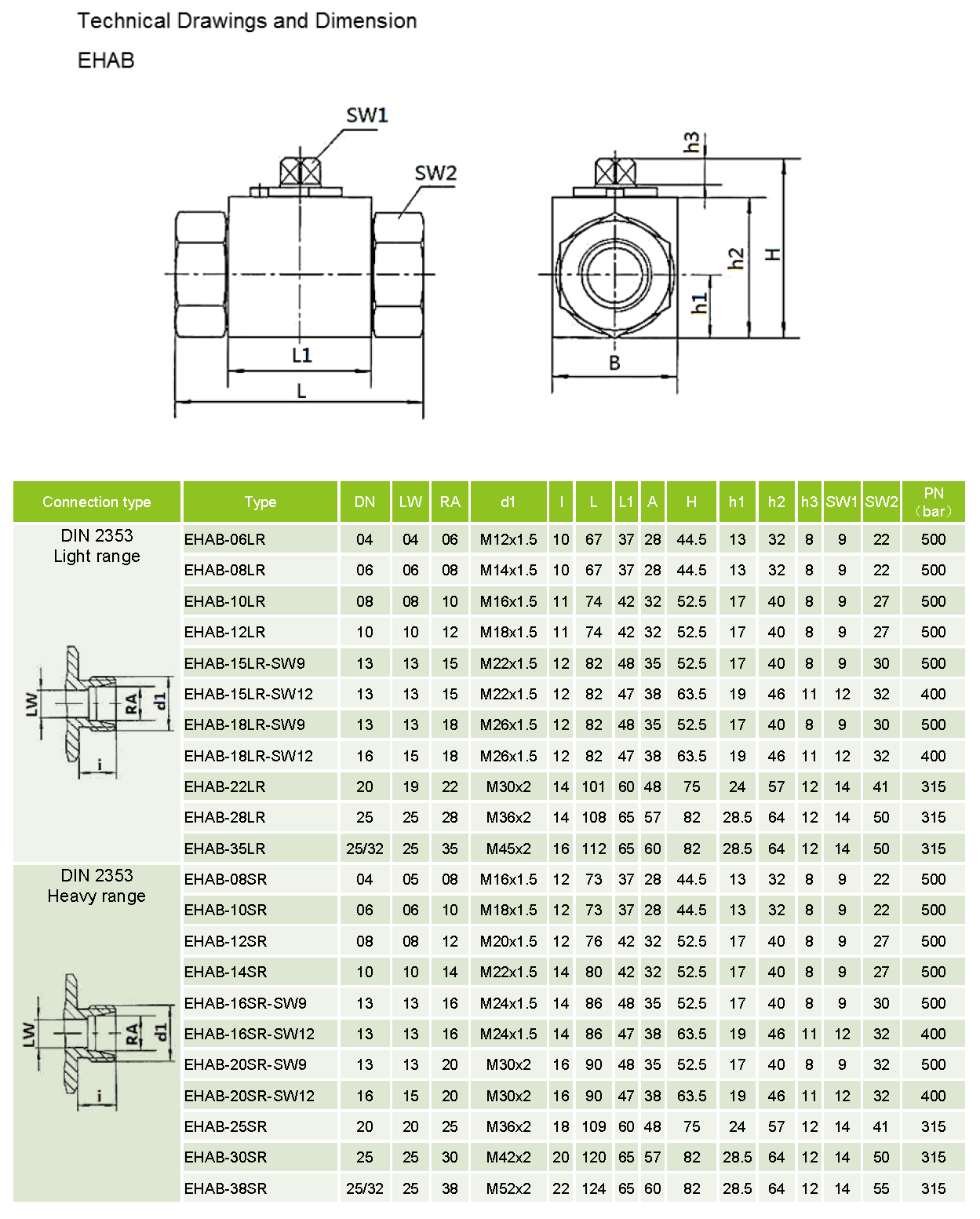

Construction: Block type EHAB (DN 04~25)

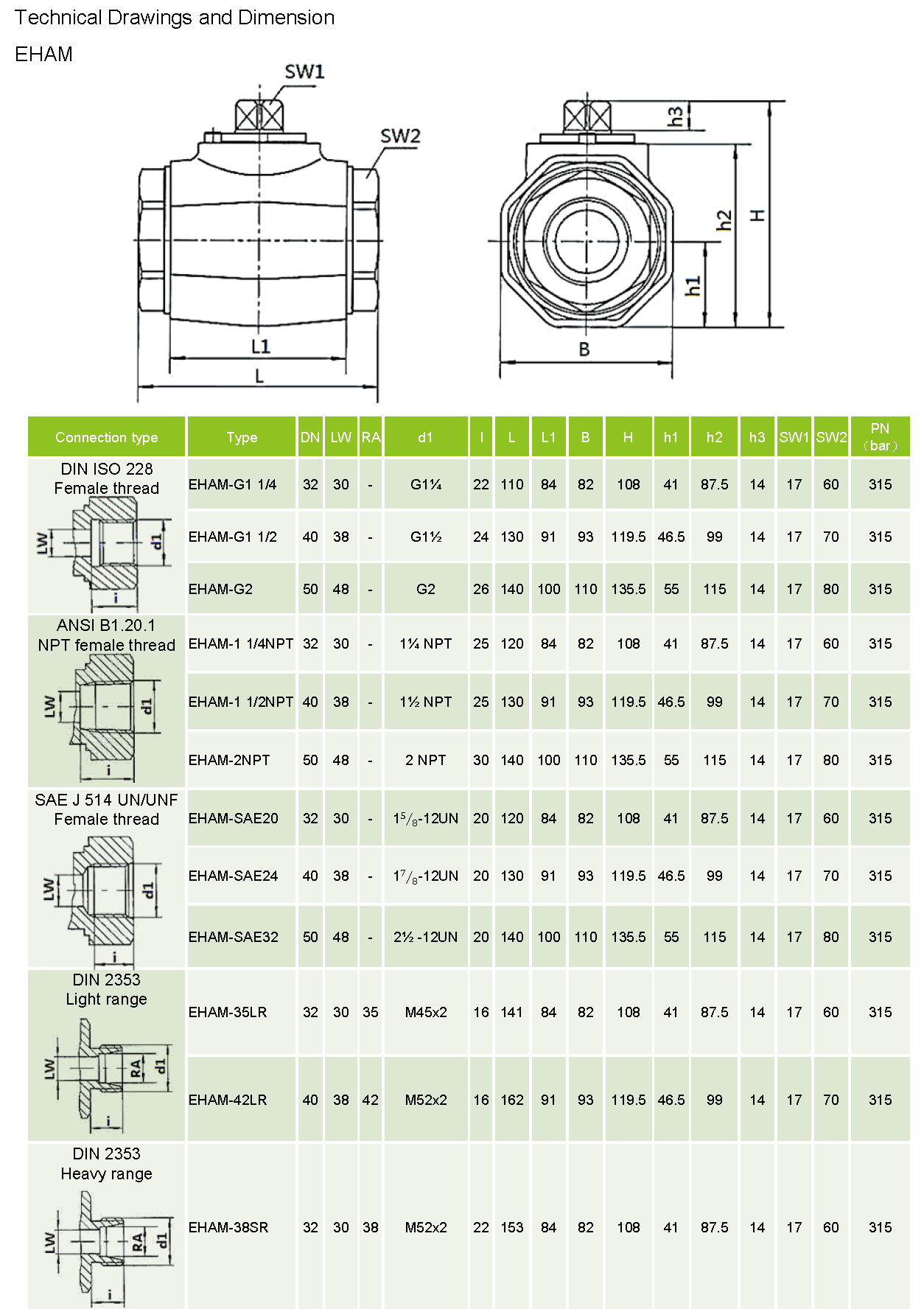

Forged type EHAM (DN 32~50)

Type of construction: Shut-off device is a ball

Nominal pressure: PN 315 bar up to PN 500 bar (according to dimension table)

Operating fluids: Oils, petroliferous and petrochemical products

Operating temperature range: -20°C to 100°C

Standard Material

Body: Carbon Steel

Ball: Carbon Steel

Stem: Carbon Steel

Lever: Zinc Alloy Bent (DN 06 to 25)

Steel Straight (DN 06 to 25)

Steel Bent (DN 32 to 50)

Ball seat: POM, PTFE, PEEK

O-rings: NBR, FKM
