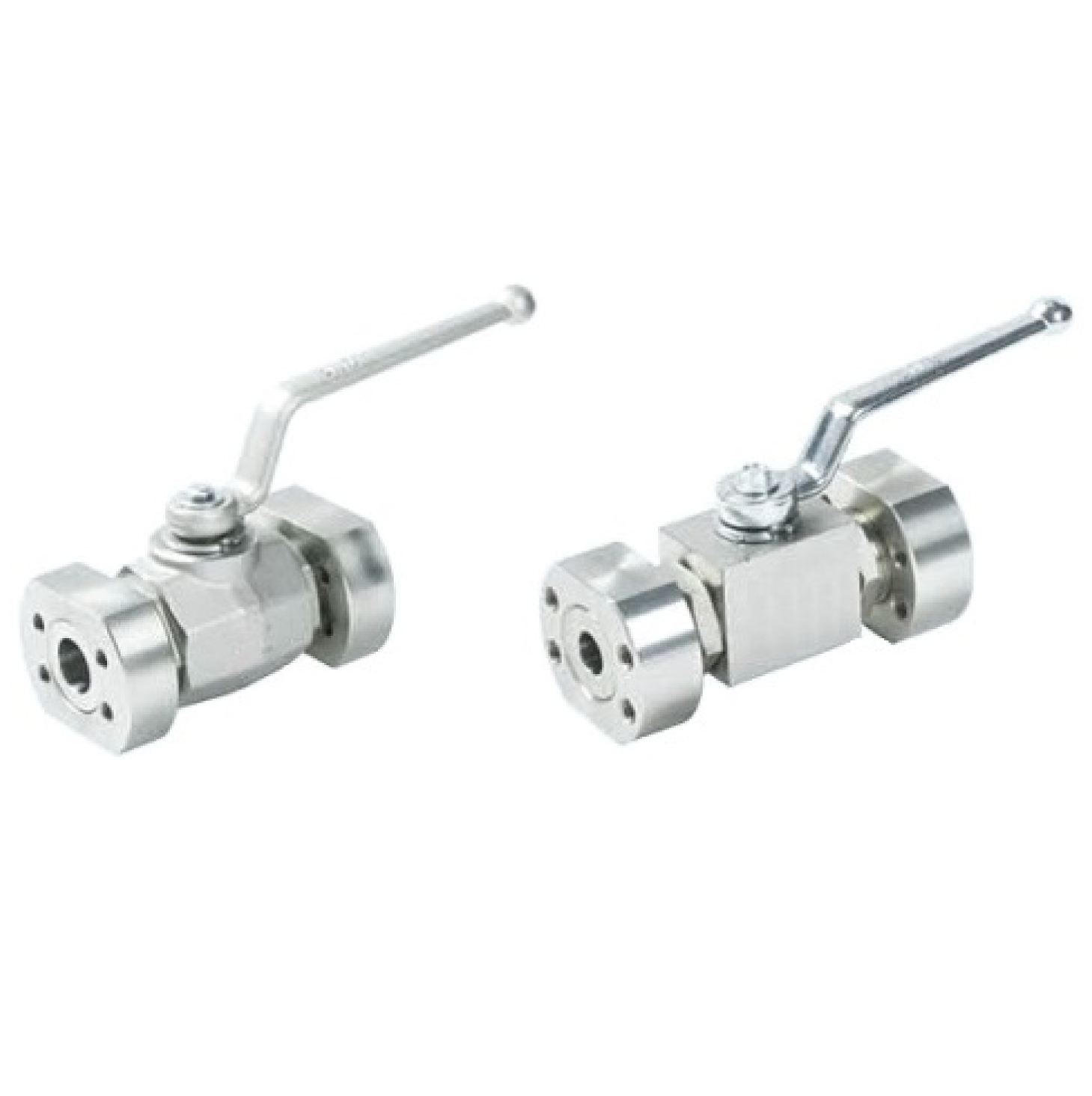

EHGB&EHGM

Product Description

Operating pressure up to 420 bar

DN up to 65

Application in Hydraulic systems, off-shore equipment, Machine tools

All ball valves can be supplied with the following options: Actuator, Limit controls & Lock

Technical Specifications

Application: In-line assembly

Flange dimensions: SAE J518

Flange connections: SAE threaded flange

Construction: Block type EHGB (DN 13~25)

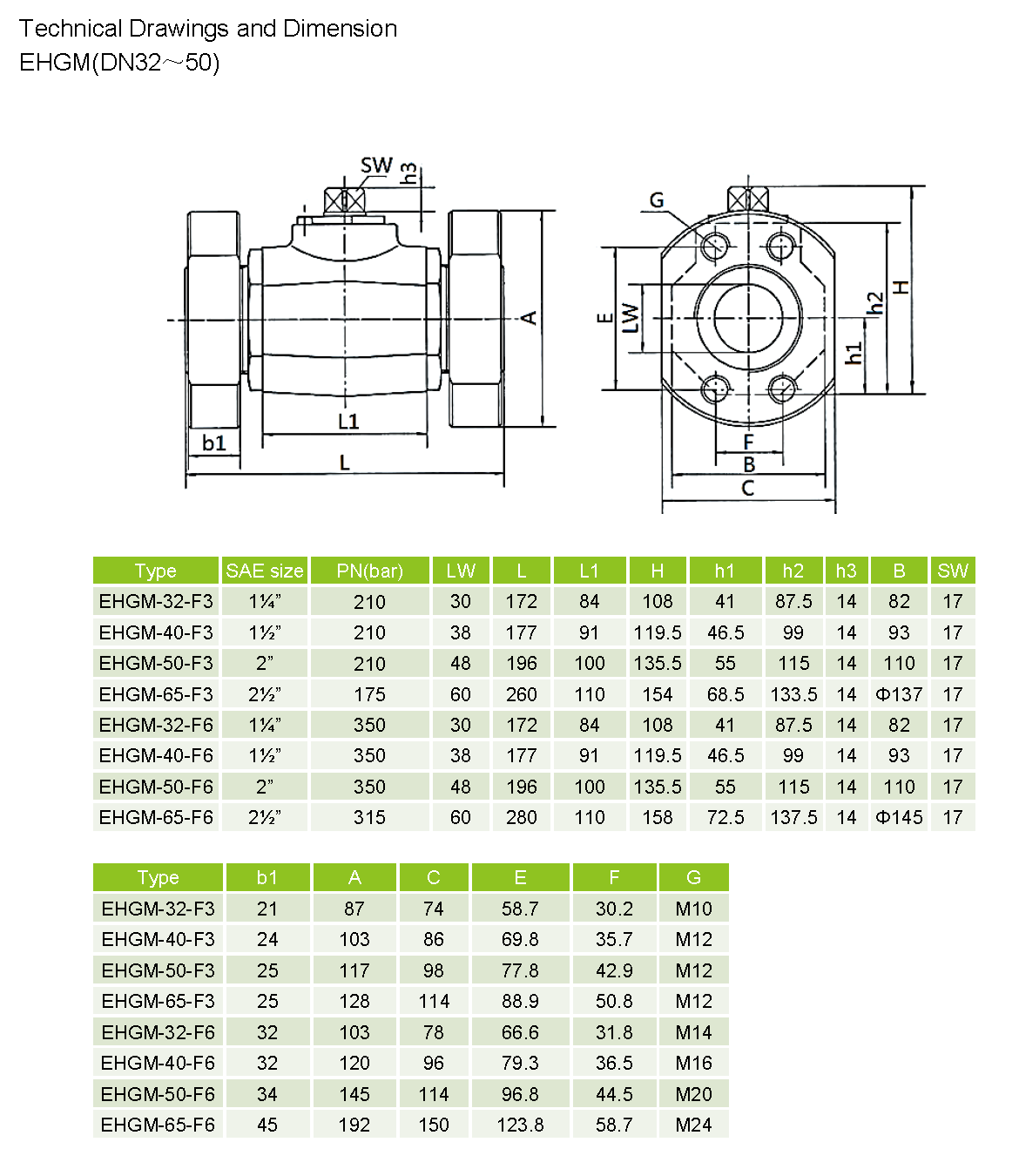

Forged type EHGM (DN 32~65)

Type of construction: Shut-off device is a ball

Nominal pressure: PN 210 bar up to PN 420 bar (according to dimension table)

Operating fluids: Oils, petroliferous and petrochemical products

Operating temperature range: -20°C to 100°C

Standard Material

Body: Carbon Steel

Ball: Carbon Steel

Stem: Carbon Steel

Lever: Zinc Alloy Bent (DN 06 to 25),Steel Straight (DN 06 to 25),Steel Bent (DN 32 to 65)

Ball seat: POM

O-rings: NBR/FKM
