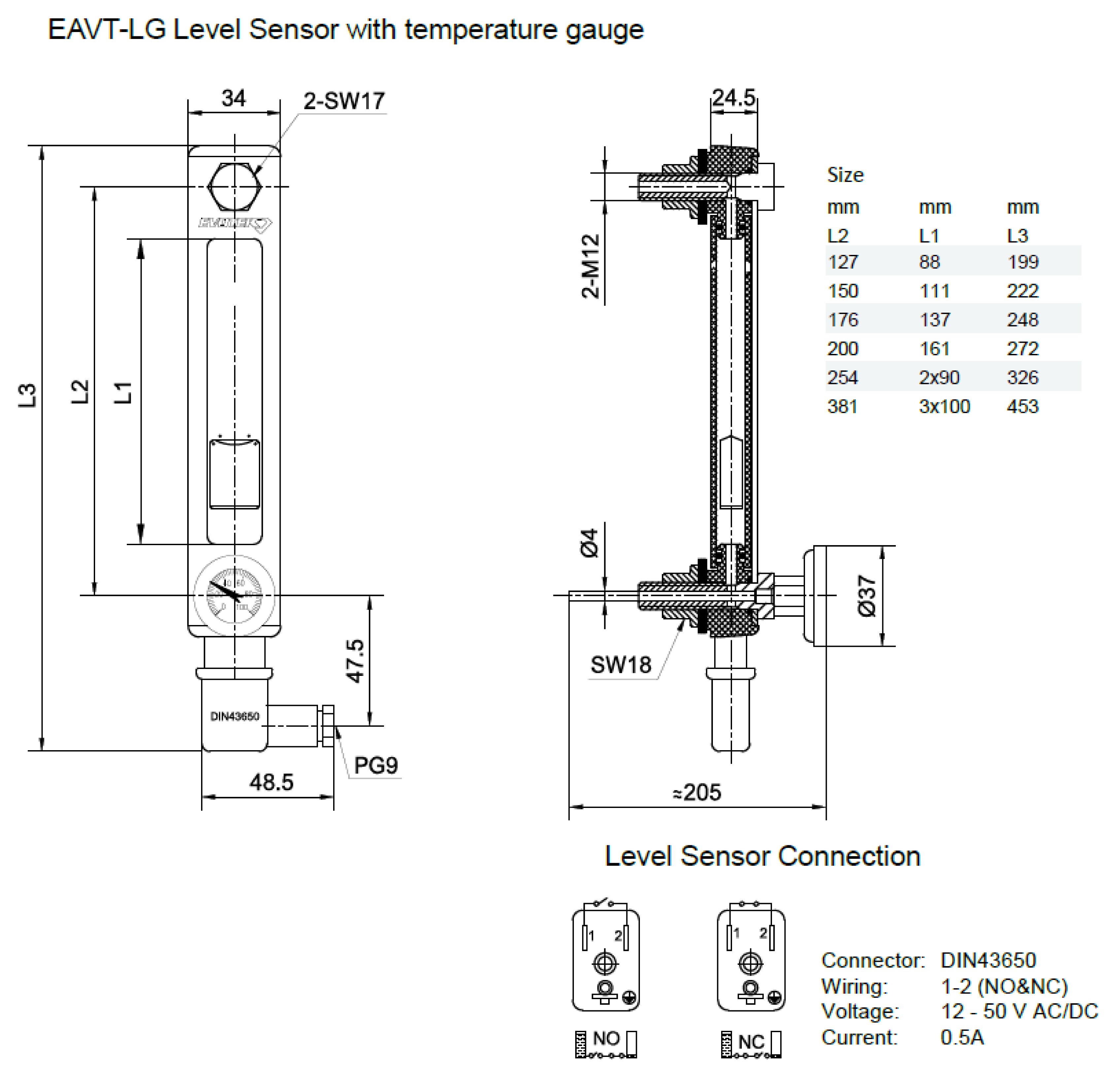

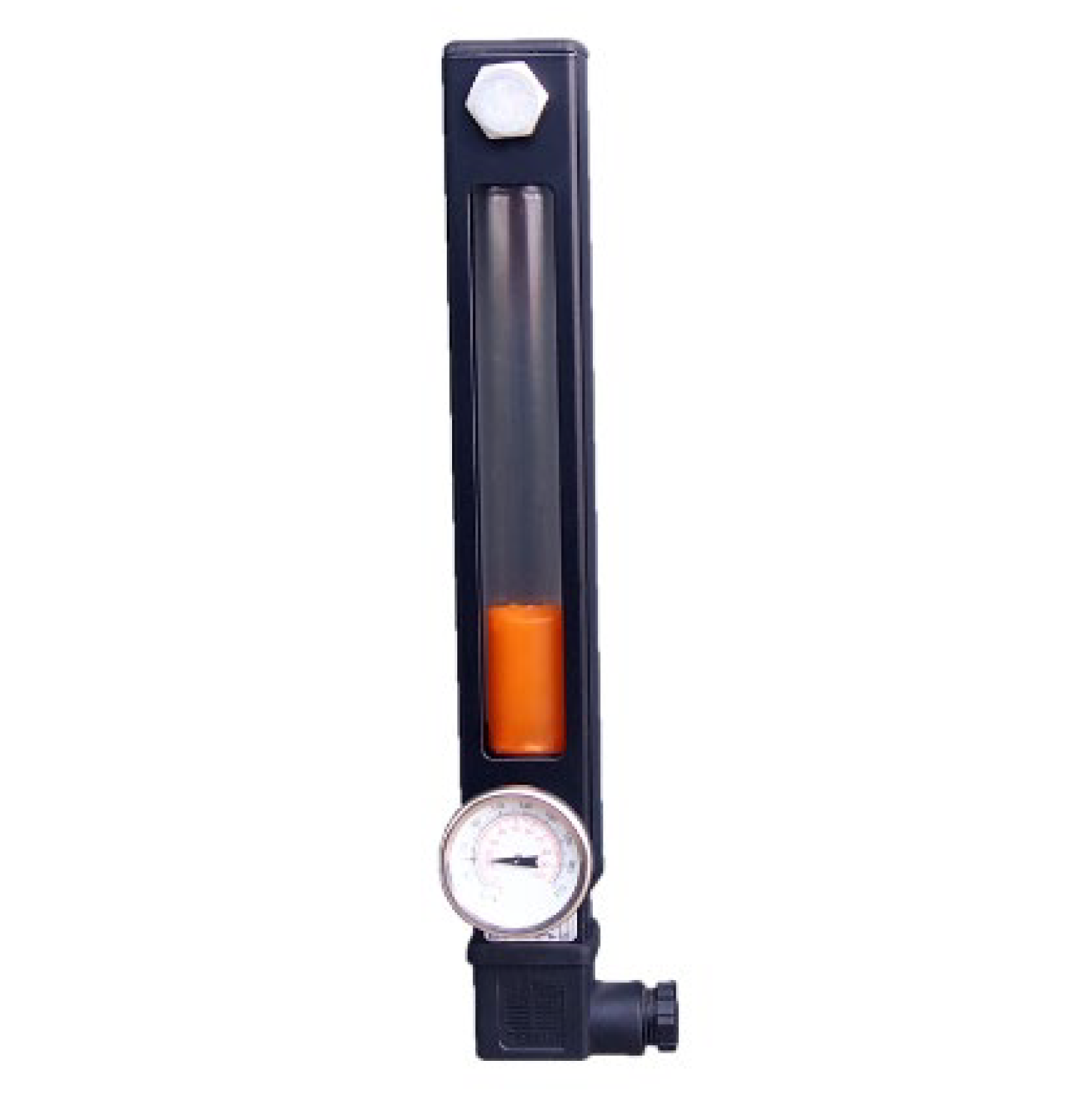

EAVT-LG

Product Description

• Measures the temperature of the operating fluid in the tank in °C
• Monitor the fluid level via an electrical signal. This switch signal can be used for a warning or to control the level.
• Better visual fluid level monitoring possible with yellow float
• to be mounted directly on to the operating fluid tank
• application in Machine tools, system engineering, tanks for hydraulic, lubricating and cutting oils, and gearboxes.

Technical Specifications

Application：Level Sensor with temperature gauge

Port Sizes:Mounted using two banjo bolts

Mounting position: Vertically on the tank wall (connection plug at bottom of the tank)

Notes: The upper viscosity limit is 2,000 mm²/s.

Material

Housing frame: Aluminium

Seals:NBR or FPM

Lens: Polyamide

Connectors: Polyamide

Temperature range:-20°C to 80°C

Instrument plug: DIN43650A

Degree of protection: IP65

Switching current: 0.5A

Switching voltage: 12 -50 V AC/DC

Screw tightening torque: 8 ~ 10 Nm

Nominal pressure: max. 0.5 bar

Operating fluids: Mineral oil to DIN 51524 Part 1 and 2, water-oil emulsions and synthetic fluids, such as hydraulic fluids based on phosphate ester. (other fluids on request)
