EVCD-CKCB
Description
Technical Specifications
Operating Pressure:350Bar
Flow:60L/min
Maximum internal leakage:0.07 ml/min at 350bar
Pilot ratio:3:1
Operating temperature :-30°Ct o+120°C(-22°F to+250°F)

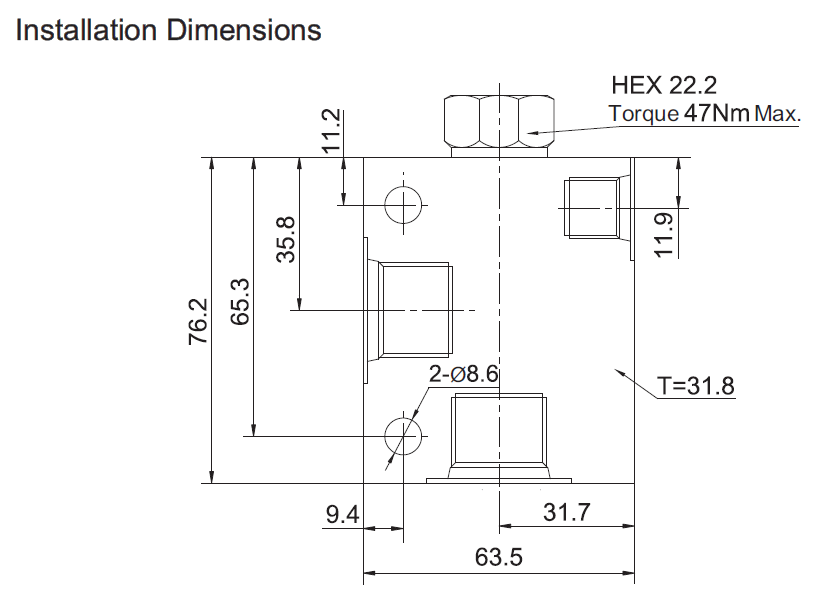

Cavity：T-11A
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Industry common cavity
Low leakage design
Provides hose break protection,prenents loads from drifting and positively locks pressurized loads.
Operation

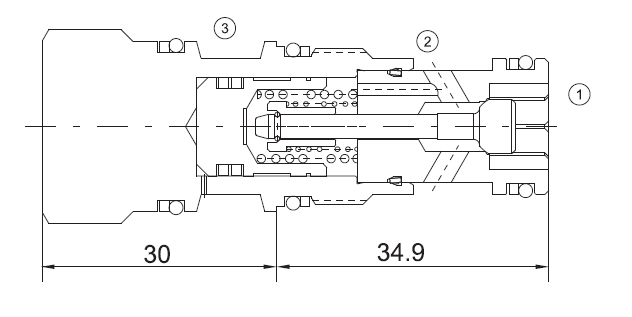

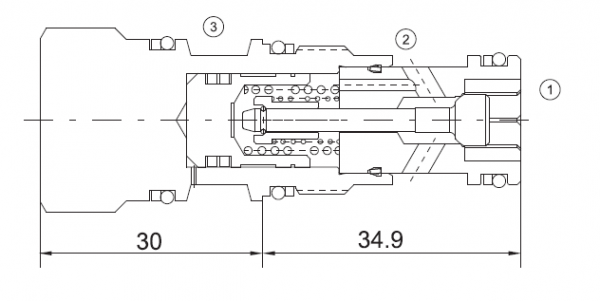

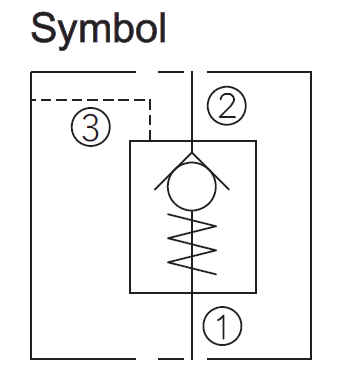

This valve is a pilot to open check valve. It has a non-sealed pilot, a steel seat, and is non-vented. It allows free flow from the valve (port 2) to the load (port 1) and blocks flow in the opposite direction. Pressure at the pilot (port 3) will open the valve from port 1 to port 2. Pilot pressure needed at port 3 to open the valve is directly proportional to the load pressure at port 1. Pressure at port 2 directly opposes pilot pressure.
Questions regarding the product?
Additional information
| Table1 | A, B, C, D, E, F, Z |
|---|---|
| Table2 | B, V |
