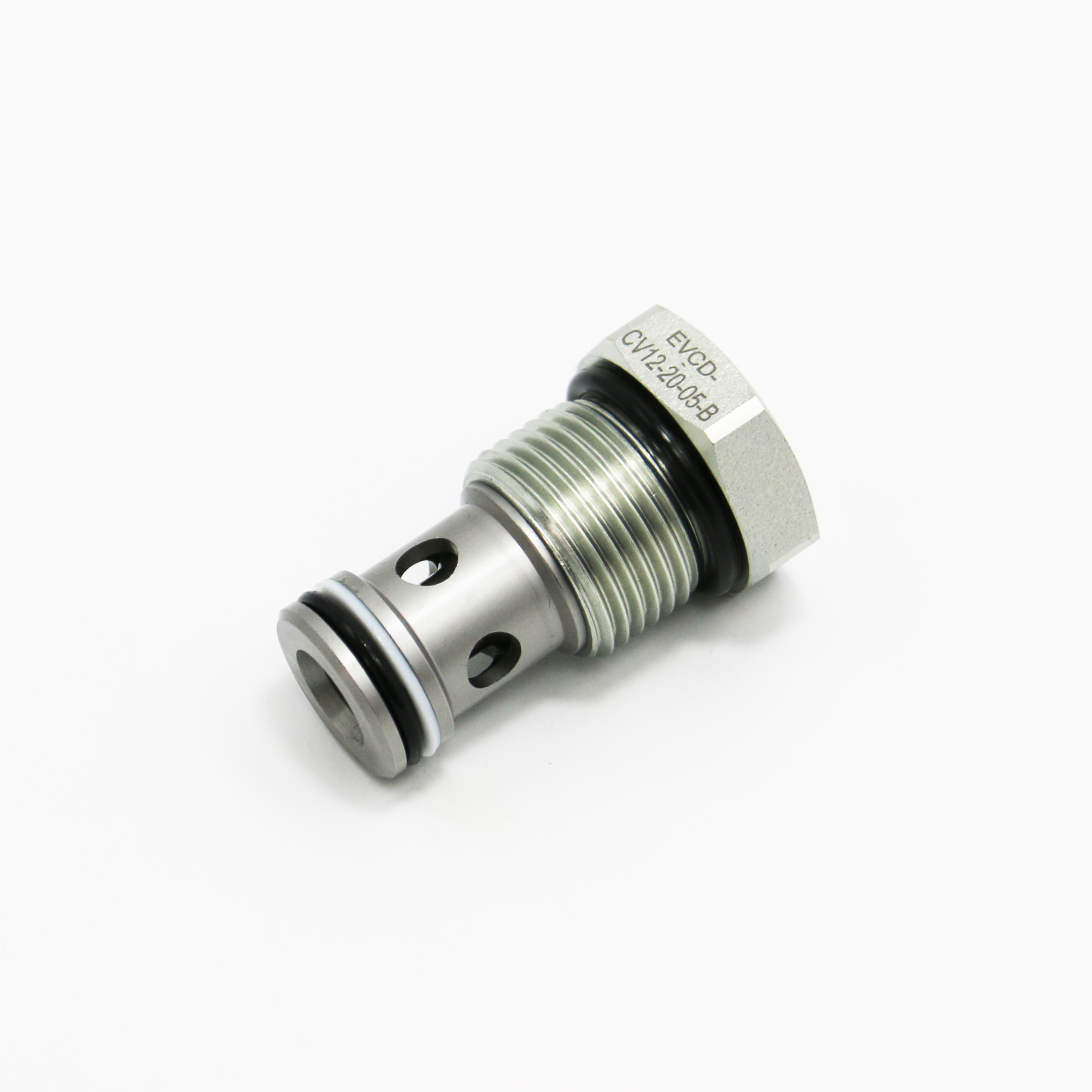

EVCD-CV12-20
Description
Technical Specifications
Operating Pressure ：240Bar
Flow:95L/min
Maximum internal leakage:5drops/min at 240bar
Operating temperature:-30°C to+120°C(-22°F to+250°F)
Cavity:VC12-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Operation
Pressure at①overcomes the spring-bias poppet and allows free flow①to②,
Flow in the opposite direction,from@to ① siblocked by the poppet。
Questions regarding the product?
Additional information

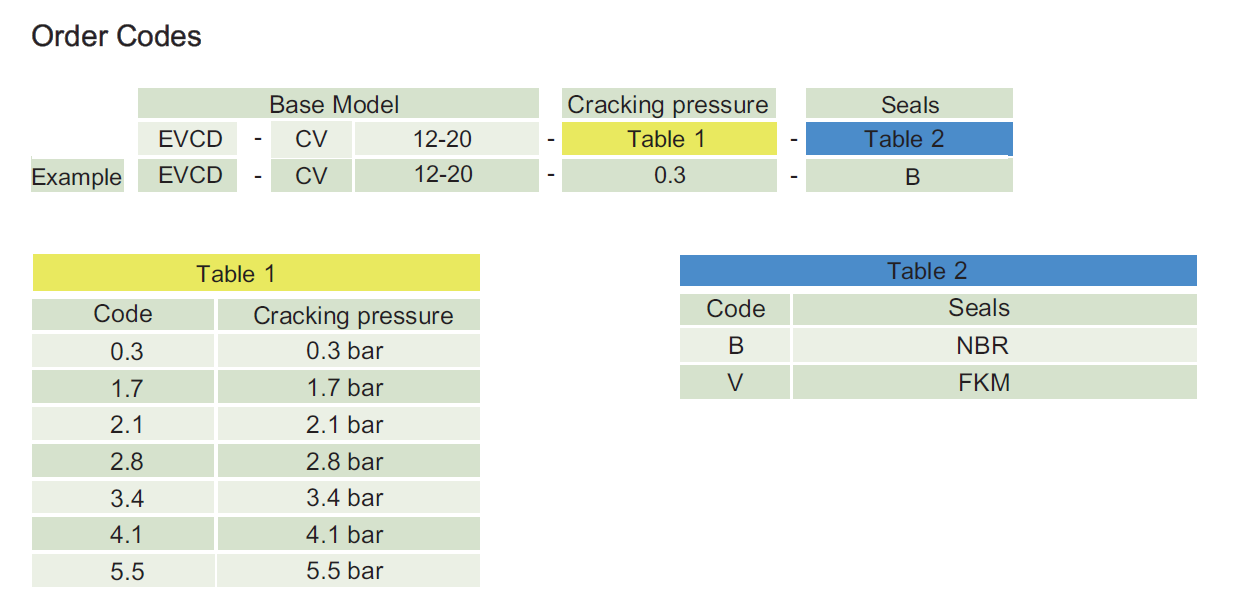

| Table1 | 0.3, 1.7, 2.1, 2.8, 3.4, 4.1, 5.5 |
|---|---|
| Table2 | B, V |
