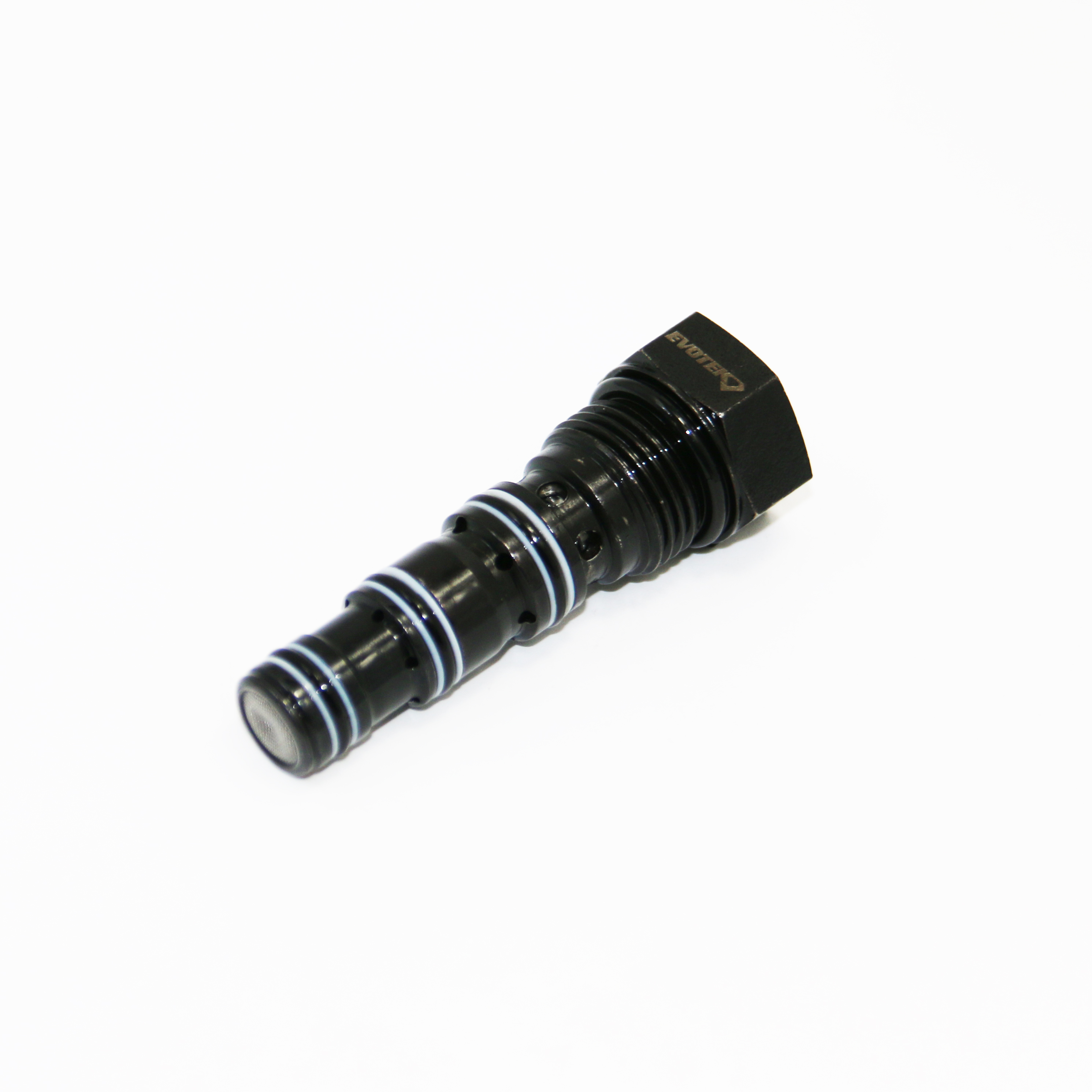

EVCD-DPC2-08

Technical Specifications

Operating Pressure :207Bar

Flow：19L/min

Maximum internal leakage :2drops/min at 207bar

Pilot ratio:2.5:1

Operating temperature :-30°C to+120°C(-22°F to+250°F)

Cavity：VCO8-4

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range：7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Low leakage design

Operation

It allows free flow from port ②to③,when normally blocking flow port ③to②,

Flow will be allowed from port ③to@when pressure is applied at port①。
