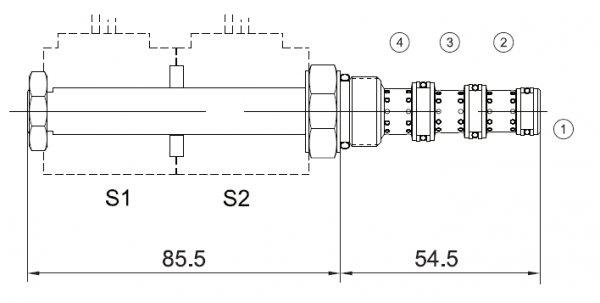

EVCE-SV08-47A

Technical Specifications

Operating Pressure :210Bar

Flow：11.4L/min

Internal leakage：278ml/min at 210bar

Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)

Cavity :VC08-4

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Continuous-duty rated solenoid

Optional coil voltages and terminations

Operation

When de-energized, the EVCE-SV08-47A blocks cylinder ports, while allowing flow from 3 to 1.

When coil 1 is energized, flow is allowed from 3 to 2, and from 4 to 1. When coil 2 is energized,

flow is allowed from 3 to 4, and from 2 to 1.
