EVCE-SV10-33
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Technical Specifications
Operating Pressure :207Bar
Flow：18.9L/min
Internal leakage：82mI/min at 207bar
Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)
Cavity :VC10-3
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Continuous-duty rated solenoid
Optional coil voltages and terminations
Operation

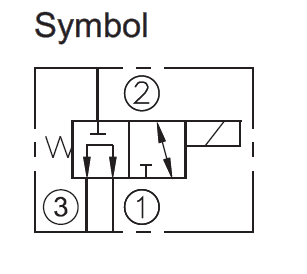

When energized, the EVCE-SV10-33 allows flow from port 1 to port 2, while blocking flow at port 3. When de-energized, the cartridge’s spool shifts to open from port 3 to port 1, while blocking flow out port 2.
Questions regarding the product?

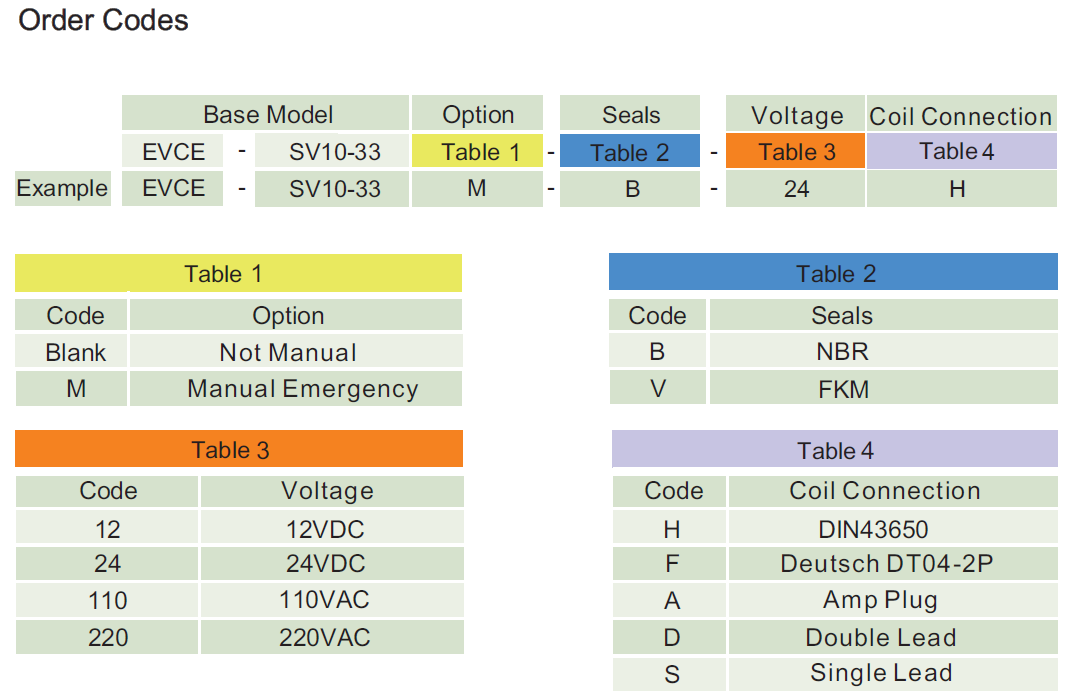

Additional information
| Table1 | M |
|---|---|
| Table2 | B, V |
| Table3 | 12, 24, 110, 220 |
| Table4 | H, F, A, D, S |
