EVCP-PBBB

Technical Specifications

Operating Pressure :350Bar

Flow：20L/min

Control Pilot Flow :0.11-0.16L/min

Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)

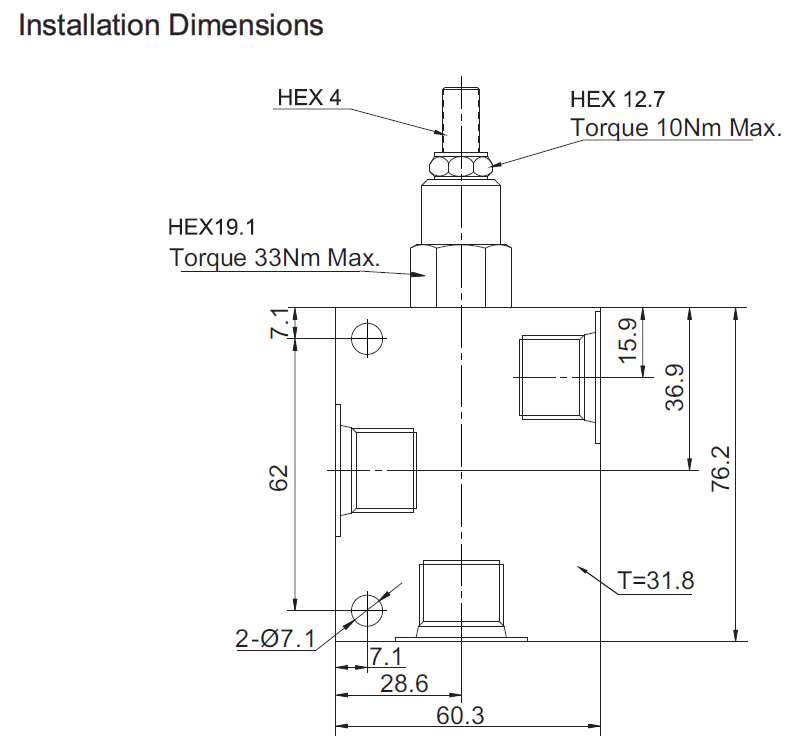

Cavity:T-163A

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:7.4 to 420cSt.

Features

Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to

close. If reverse free flow is required in the circuit, consider adding a separate check valve to

the circuit.

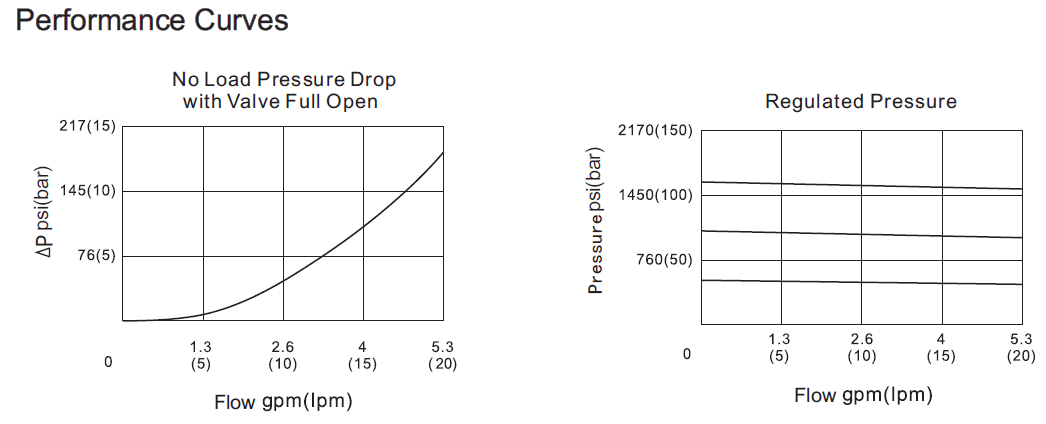

Pilot operated Valve exhibit exceptionally flat pressure/flow characteristics, are very stable

and have low hysteresis.

Operation

Pilot-operated, pressure reducing Valve reduce a high primary pressure at the inlet (port2) to a constant reduced pressure at port 1, allowing circuits with multiple pressure requirements to be operated using a single pump.
