EVCP-RV08-20
Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Description
Technical Specifications
Operating Pressure :250Bar
Flow：22.7L/min
Maximum internal leakage :5drops/min (Max to 75% of nominal setting)
Operating temperature:-30°C to+ 120°C(-22°F to+ 250°F)
Cavity :VC08-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range：7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Fast closing and seating
Operation
EVCP-RV08-20 blocks flow from port 1 to port2 until sufficient pressure is present at port 1 to foce the spring opposed poppet off its seat.
Questions regarding the product?

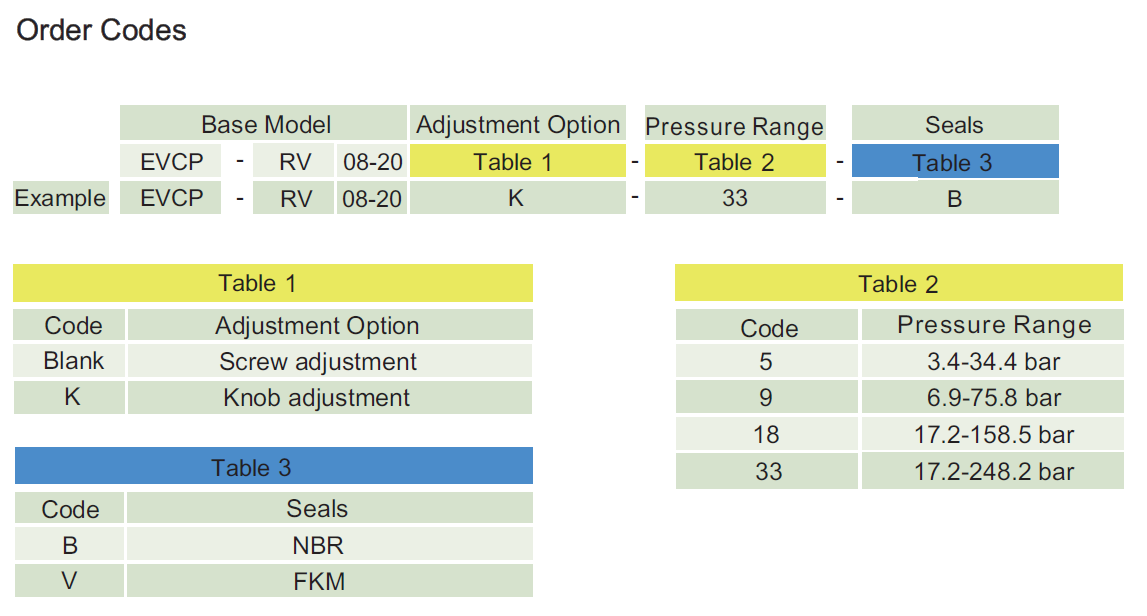

Additional information
| Table1 | Blank, X |
|---|---|
| Table2 | 5, 9, 18, 33 |
| Table3 | B, V |
