EFB-With threaded connection

Product Description

• 750 l/min max. flow rate
• installation in-tank mounting
• suitable for use with mineral and lubrication oils

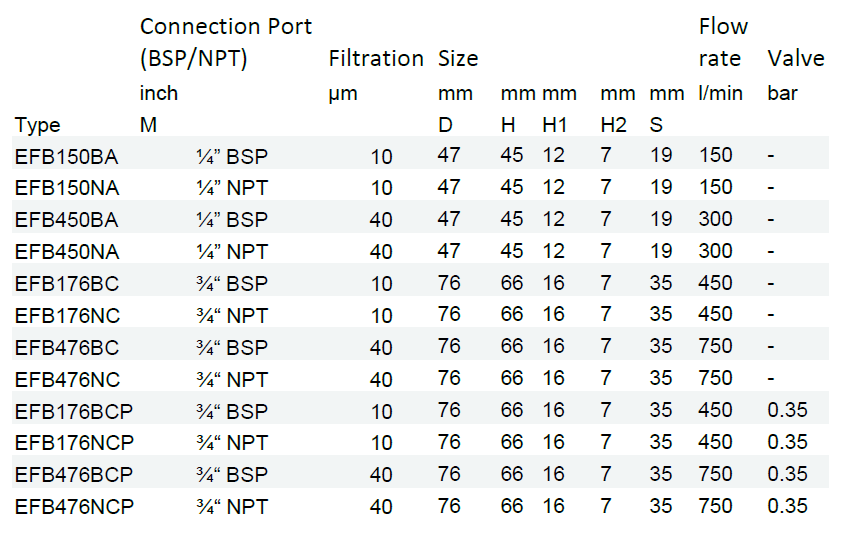

Technical Specifications

Application：Air breather filter

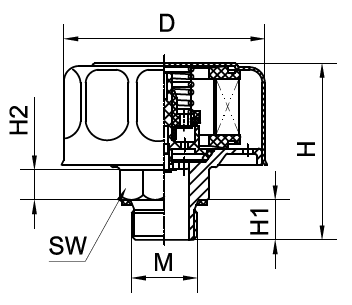

Port Sizes:Threaded Connections according to BSP and NPT standard in ¼” , ¾” ,Fastening by means of flange or screw connection

Flow Rate:max. 750 l/min

Material

Element: Impregnated paper

Polyurethane

Seals:NBR or FPM (-25°C to 100°C)

Connector :Threaded connection: Aluminium

Flange: Galvanized Steel

Cover: Stainless steel

Basket: Galvanized Steel
