EFT008

EFT008

Clear

Description

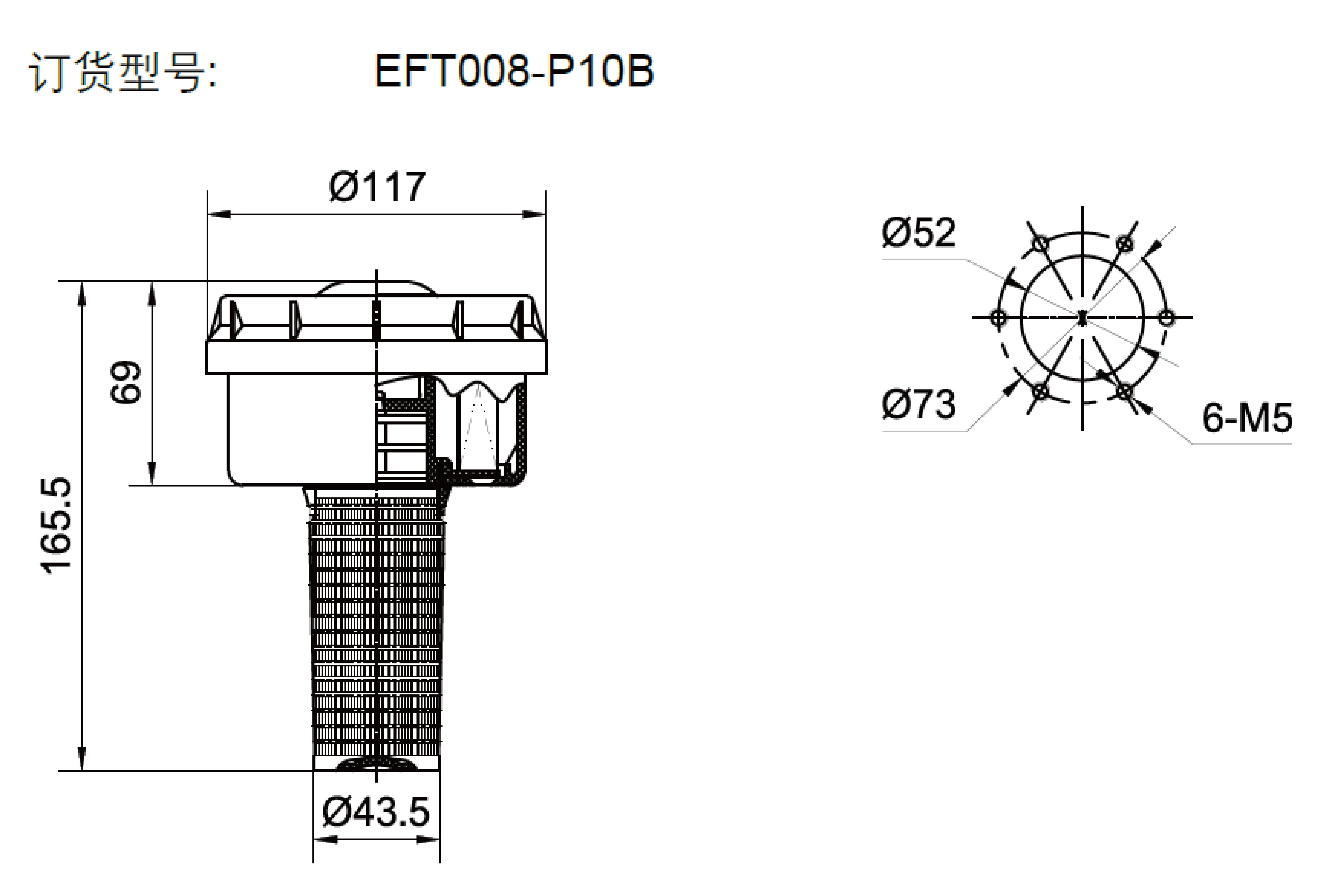

  • Air breather filter
  • Tank connection: Flange connection (DIN 24557-2)
  • Flow Rate: 1800 l/min
  • Filtration: 10 µm
  • Temperature range: -25°C to 110°C
  • Material: Plastic housing & basket
  • Seals: NBR
  • Filter Element: Cellulose (10 µm)

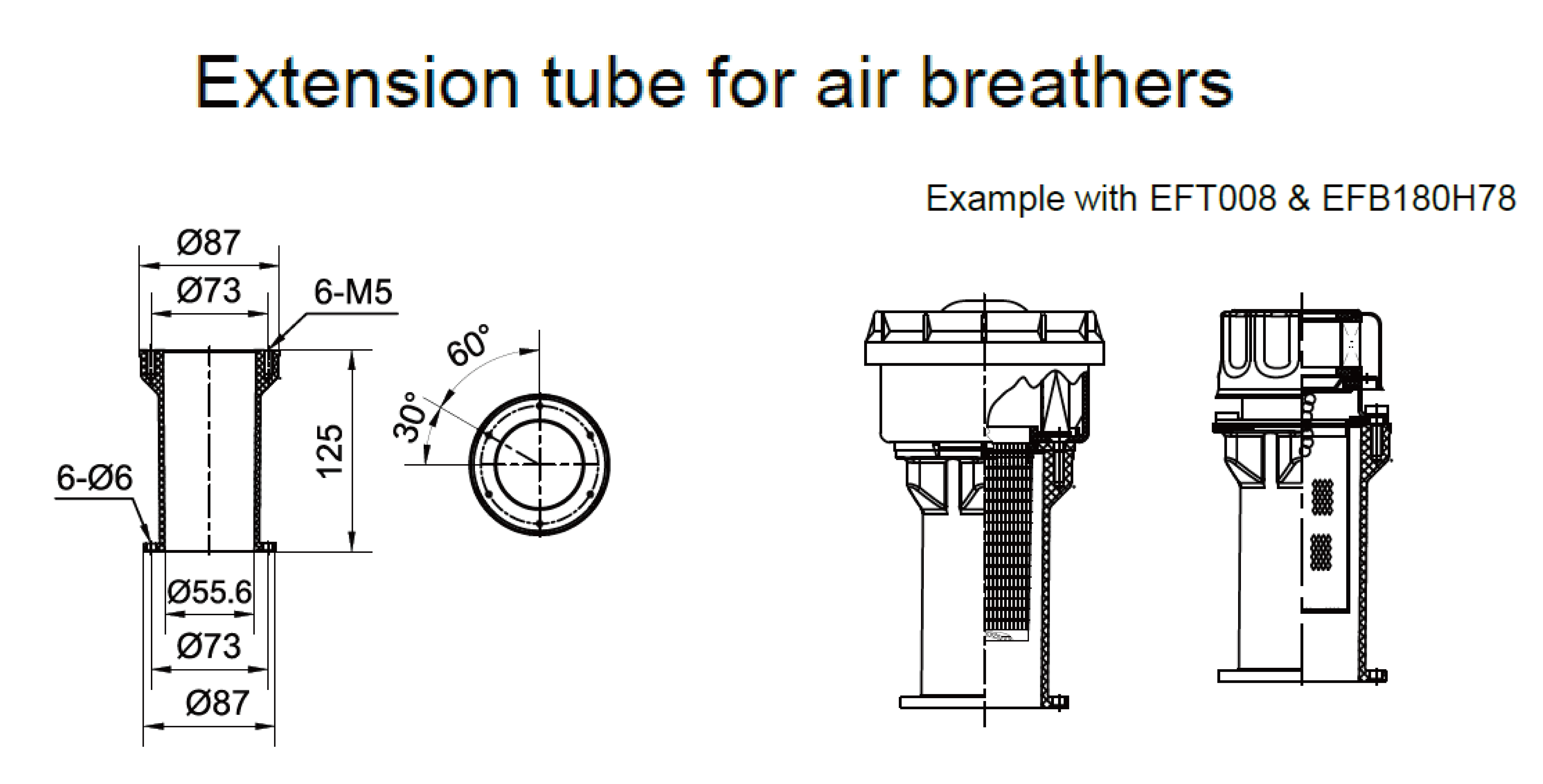

  • Extension tube
  • To avoid leakage from the breather due to oil vapours or tilt of the tank.
  • Fits all air breathers with connection flange according to DIN24557-2
  • Tank connection: Flange connection (DIN24557-2)
  • Material: PA66
  • Seals: NBR

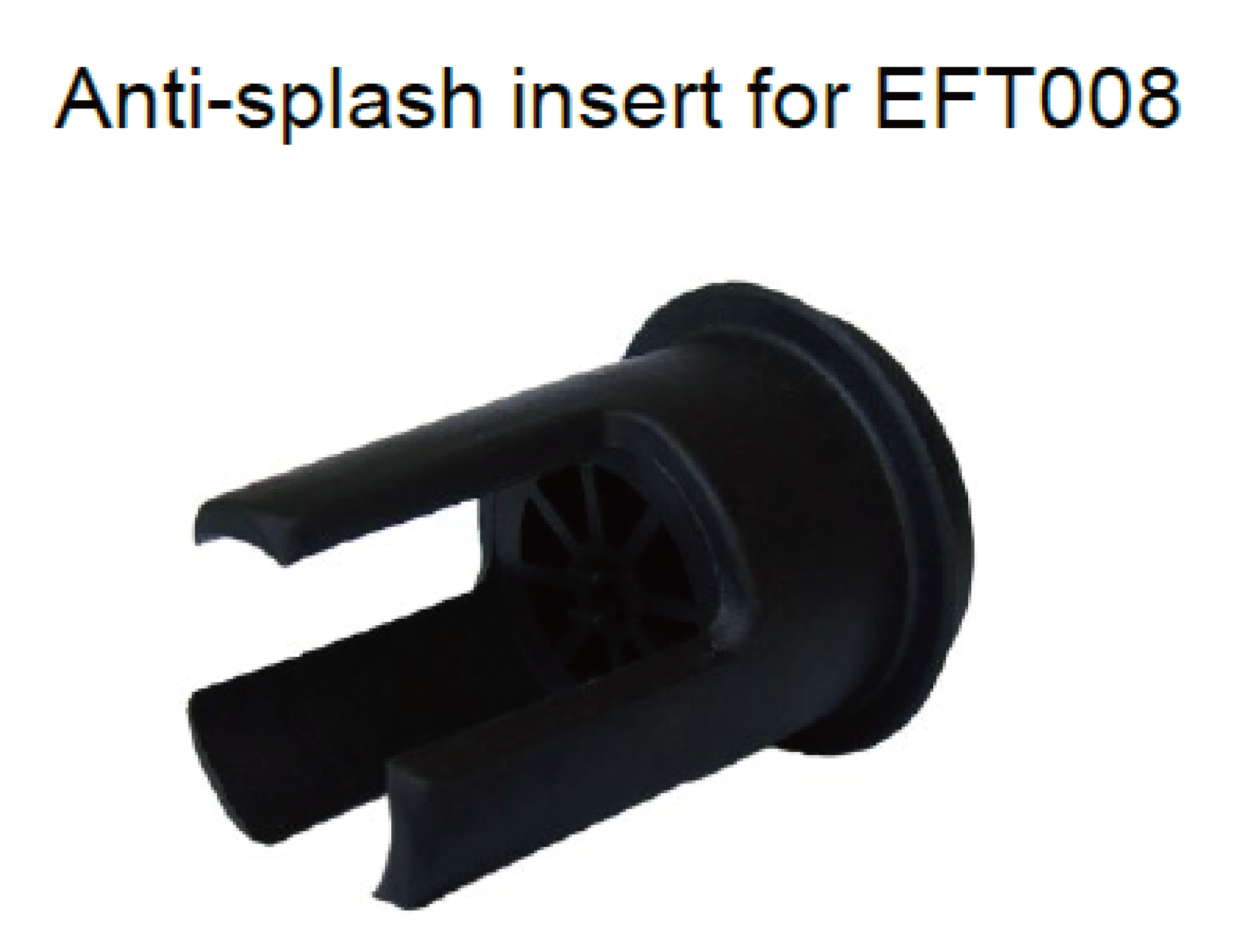

  • Anti-splash insert
  • To avoid vapour leakage in mobile applications insert for the housing of EFT008.
  • Material: PA66
  • Seals: NBR
