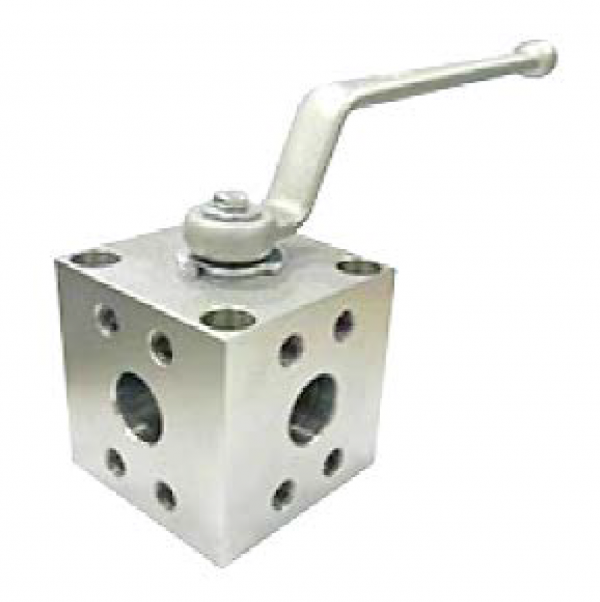

EHTF

Product Description

• Operating pressure up to 420 bar
• DN up to 50
• Application in hydraulics, particularly in construction machinery

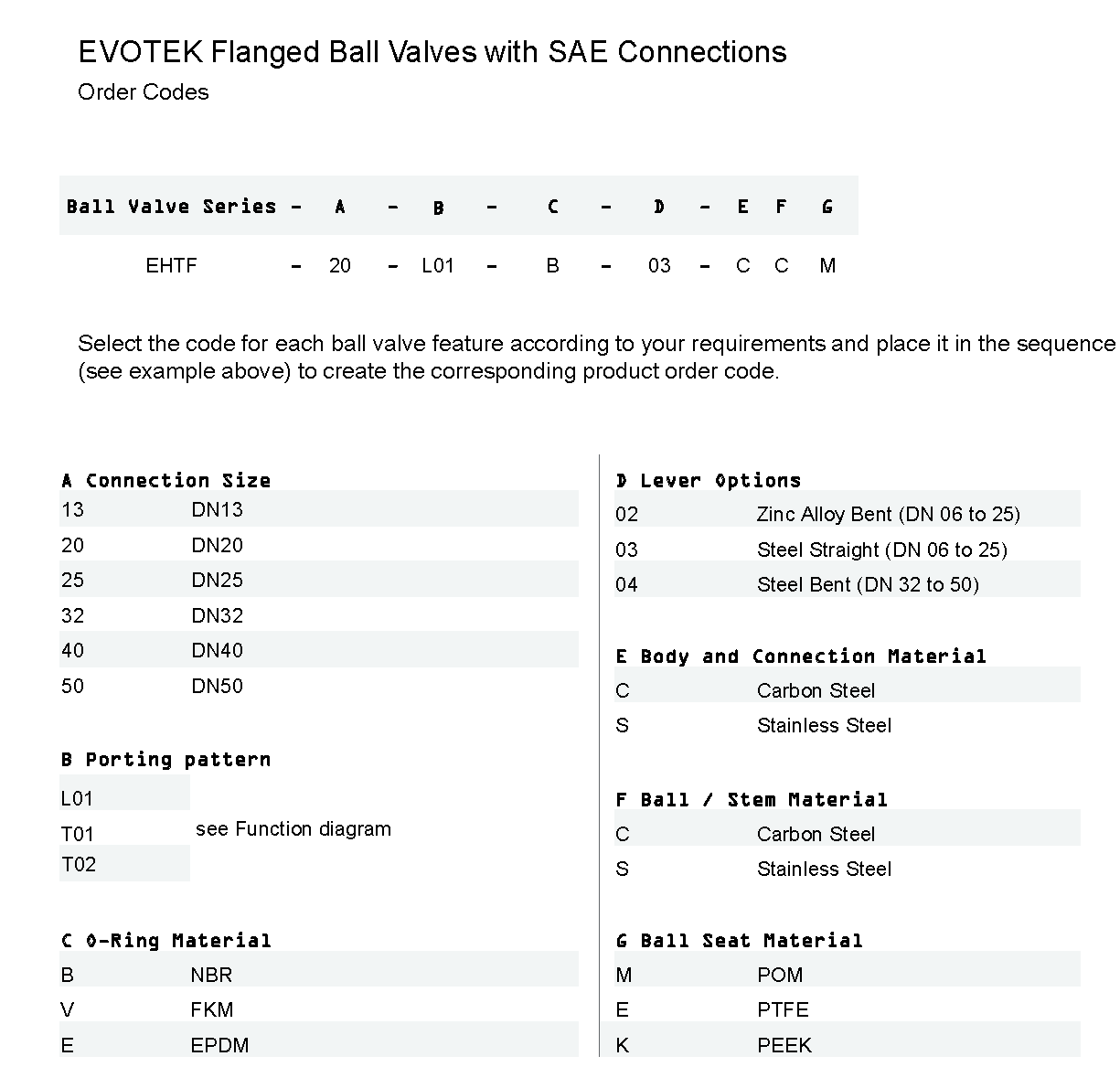

• All ball valves can be supplied with the following options: Actuator, Limit controls & Lock

Technical Specifications

Application: In-line assembly

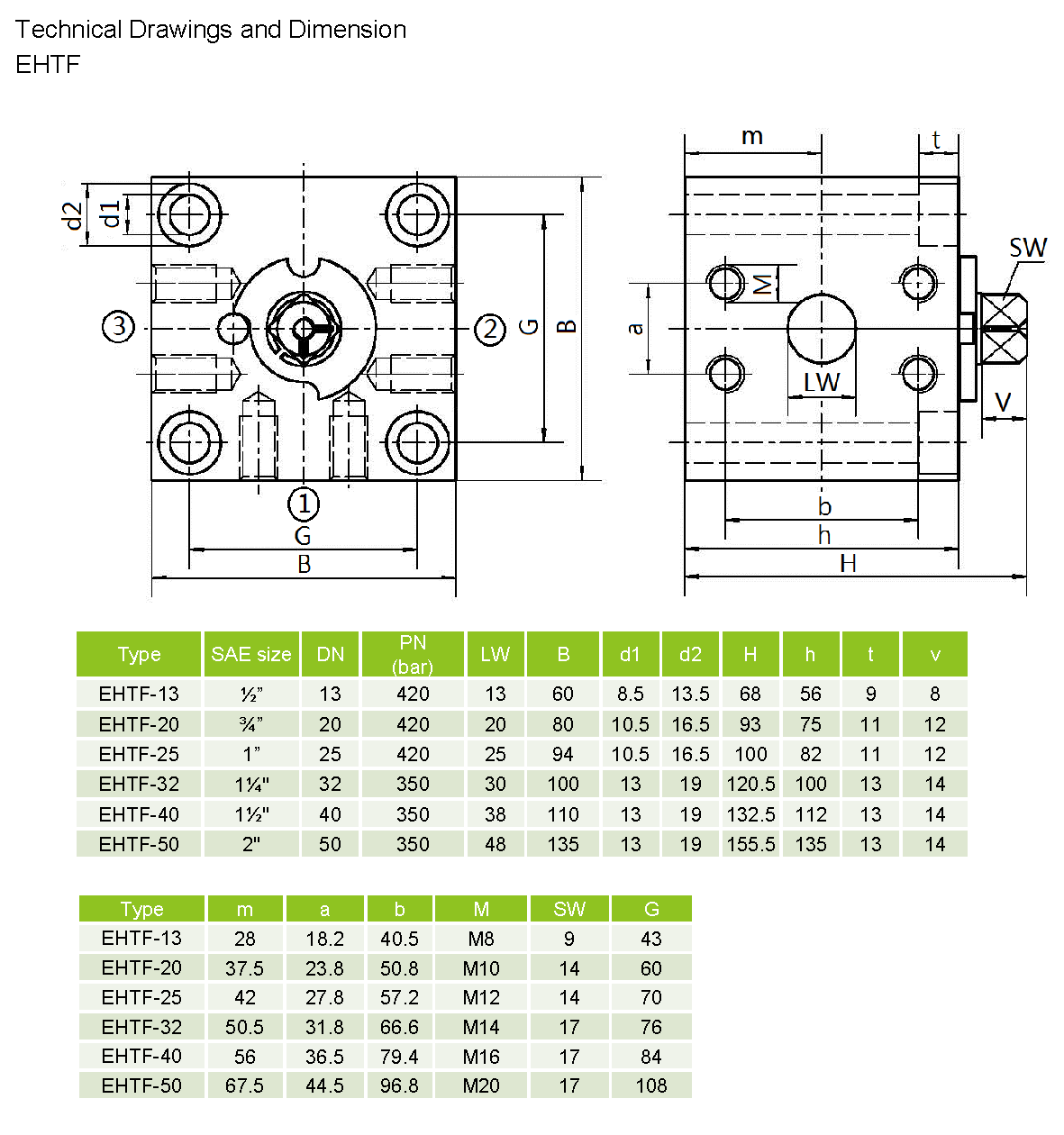

Flange dimensions: ISO 6162, tables 2 (SAE J 518C)

Flange connections: SAE fixed flange

Construction: Block body design

Type of construction: Shut-off device is a ball

Nominal pressure: PN 350 bar up to PN 420 bar (according to dimension table)

Operating fluids: Oils, petroliferous and petrochemical products

Operating temperature range: -20°C to 100°C

Standard Material

Body: Carbon Steel

Ball: Carbon Steel

Stem: Carbon Steel

Lever: Zinc Alloy Bent (DN 06 to 25)

Steel Straight (DN 06 to 25)

Steel Bent (DN 32 to 50)

Ball seat: POM

O-rings: NBR/FKM
