EVCF-FC08
Description
Technical Specifications
Operating Pressure:250Bar
Flow:18L/min
Internal leakage :3drops/min at 250bar
Operating temperature:-30°C to+ 120°C(-22°F to+ 250°F)
Cavity :VC08-2
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Desired settings may be locked down.

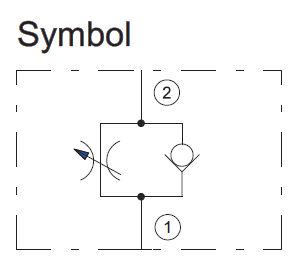

Operation
The valve acts as a restrictorin the 2 to 1 direction. As a check valve it provides free flow in
the 1 to 2 flow path.
Questions regarding the product?

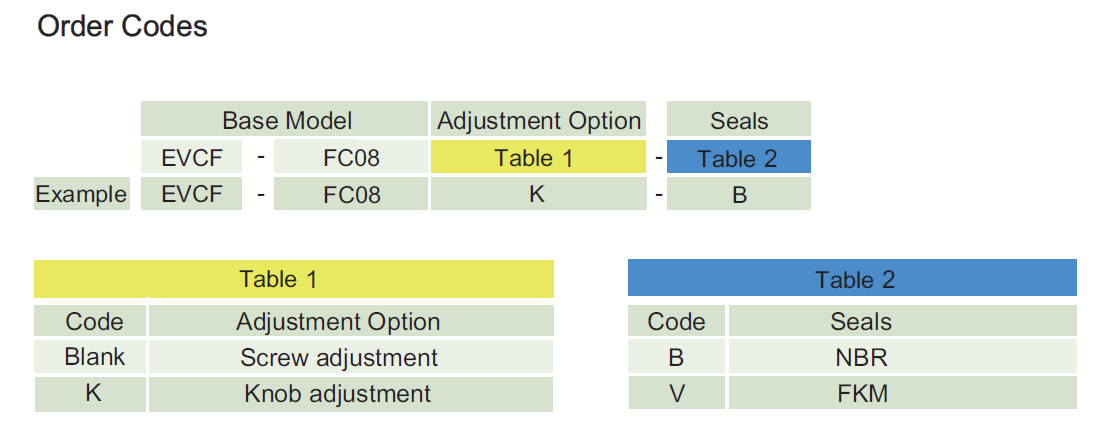

Additional information
| Table1 | K |
|---|---|
| Table2 | B, V |
