EVCP-DPR08
Description
Technical Specifications
Operating Pressure :207Bar
Flow：11.4L/min
Internal leakage (②to③)：82mI/min (Max to 80% of nominal setting)
Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)
Cavity ：VC08-3
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Low leakage design
Fast closing and seating
Operation
On attainment of a pre-determined pressure at port ①, the cartridge shifts to block flow at port②, thereby regulating pressure at port ①. In this mode, the valve will also relieve port 1 to port ③ at a variable value over the set reducing pressure.
Questions regarding the product?
Additional information

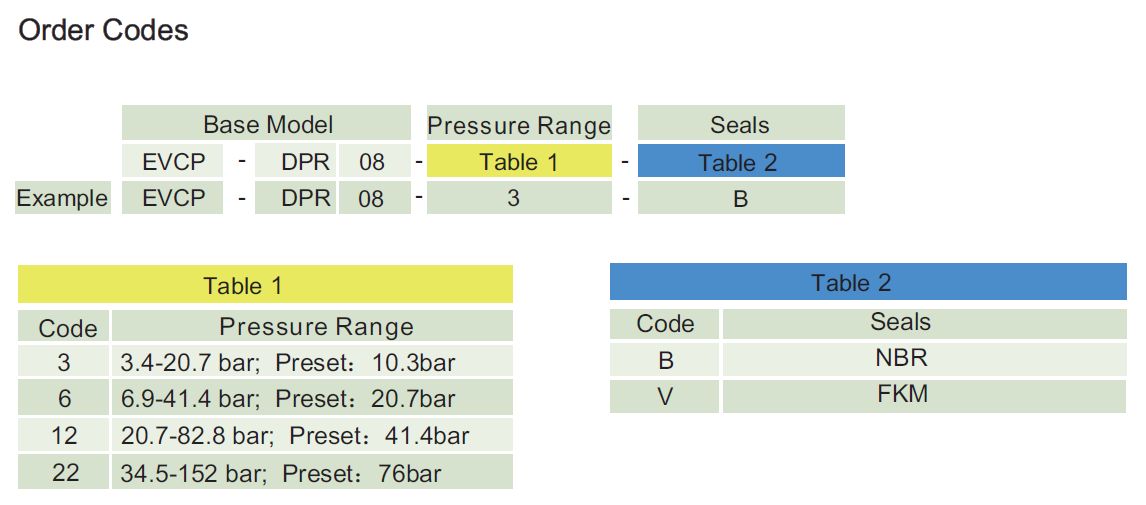

| Table1 | 3, 6, 12, 22 |
|---|---|
| Table2 | B, V |
