EVCP-RAH10

Technical Specifications

Operating Pressure :380Bar

Flow：113L/min

Maximum internal leakage:5drops/min (Max to 80% of nominal setting)

Operating temperature:-30°C to + 120°C(-22°F to + 250°F)

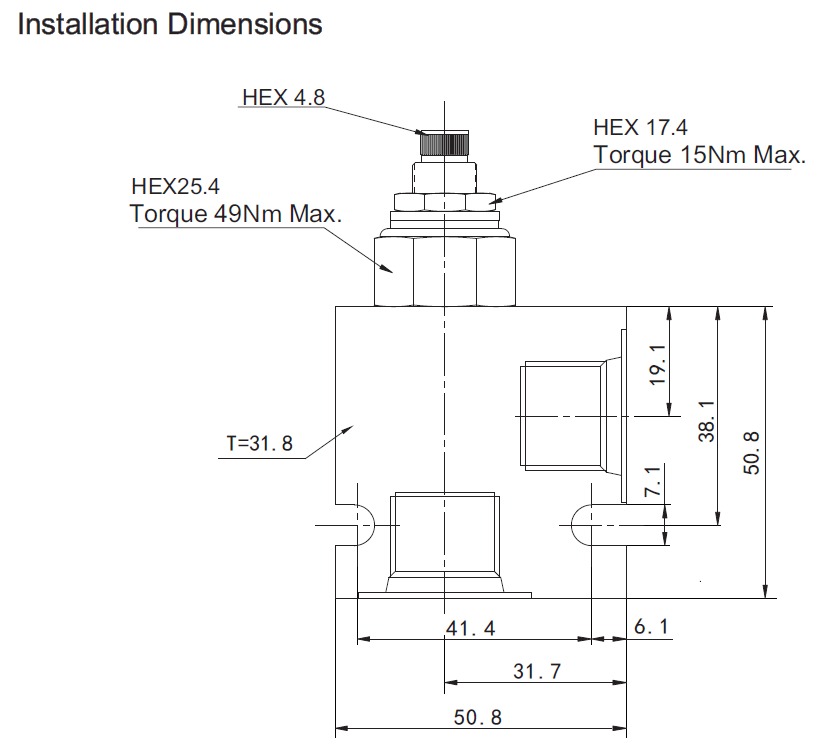

Cavity:VC10-2

Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range :7.4 to 420cSt.

Features

Hardened seat for long life

Compact size

Industry common cavity

Not suitable for use in load holding applications due to spool leakage

Operation

Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating Valve.

When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank

(port 2), throttling flow to regulate the pressure. These Valves are accurate, have low pressure

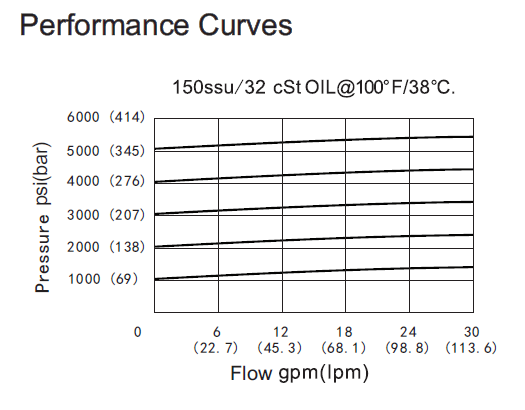

rise vs. flow, they are smooth and quiet, and are moderately fast.
