EFSS
Description
Product Description
-
- Operating pressure up to 8 bar
- 50 l/min max. flow rate
- installation in suction line
- application in Mobile Equipment, Hydrostatic Drives, Power Units and agricultural machines
- compliant with industry relevant ISO standards(see ISO test below)
Technical Specifications
- Application: Suction Filters

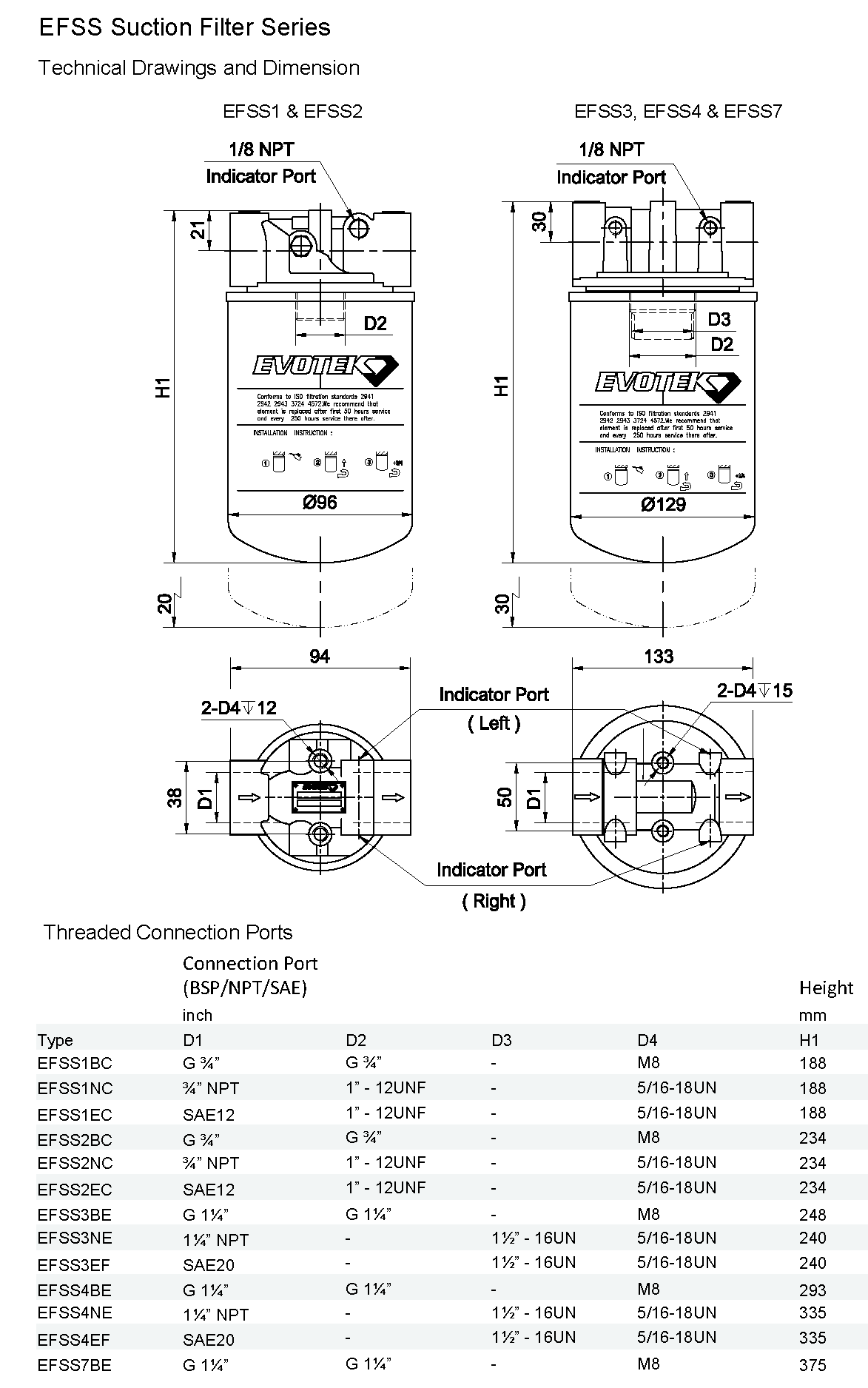

- Port size: Threaded Connections according to BSP and NPT standard in ¾” & 1¼” and SAE12/ SAE20 threads
- Flow rate: max. 50 l/min
- Operating pressure: max. 8 bar
- Burst pressure: min. 25 bar
- Element collapse pressure: 4 bar
- By-pass opening pressure: Δp 0.3 bar ± 10%
- Seals: NBR or FPM (-10°C to 100°C)
- Filter Head: Aluminium
- Filter Bowl:Sheet steel
- Compatibility: Suitable for mineral oils, lubrication oils,non-flam fluids,synthetic and rapidly biodegradable oils (for use with water or other fields please contact our technical department)
- Tested according to ISO standards:
ISO2941 Collapse/burst resistance
ISO2942 Fabrication integrity
ISO2943 Material compatibility integrity
ISO3723 Method for end load test
ISO3724 Flow fatigue characteristics

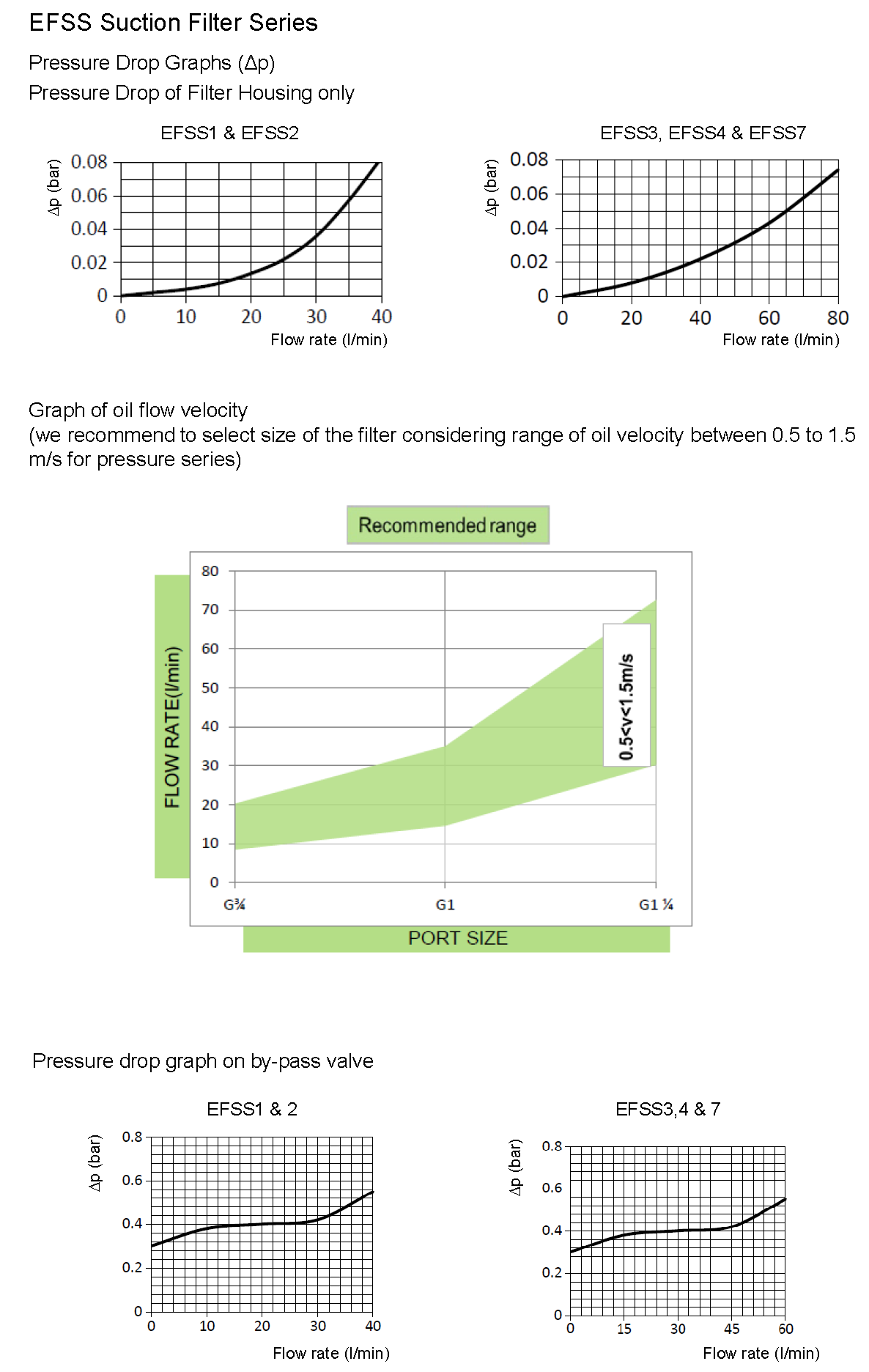

ISO3968 Pressure Drop vs. Flow Rate
