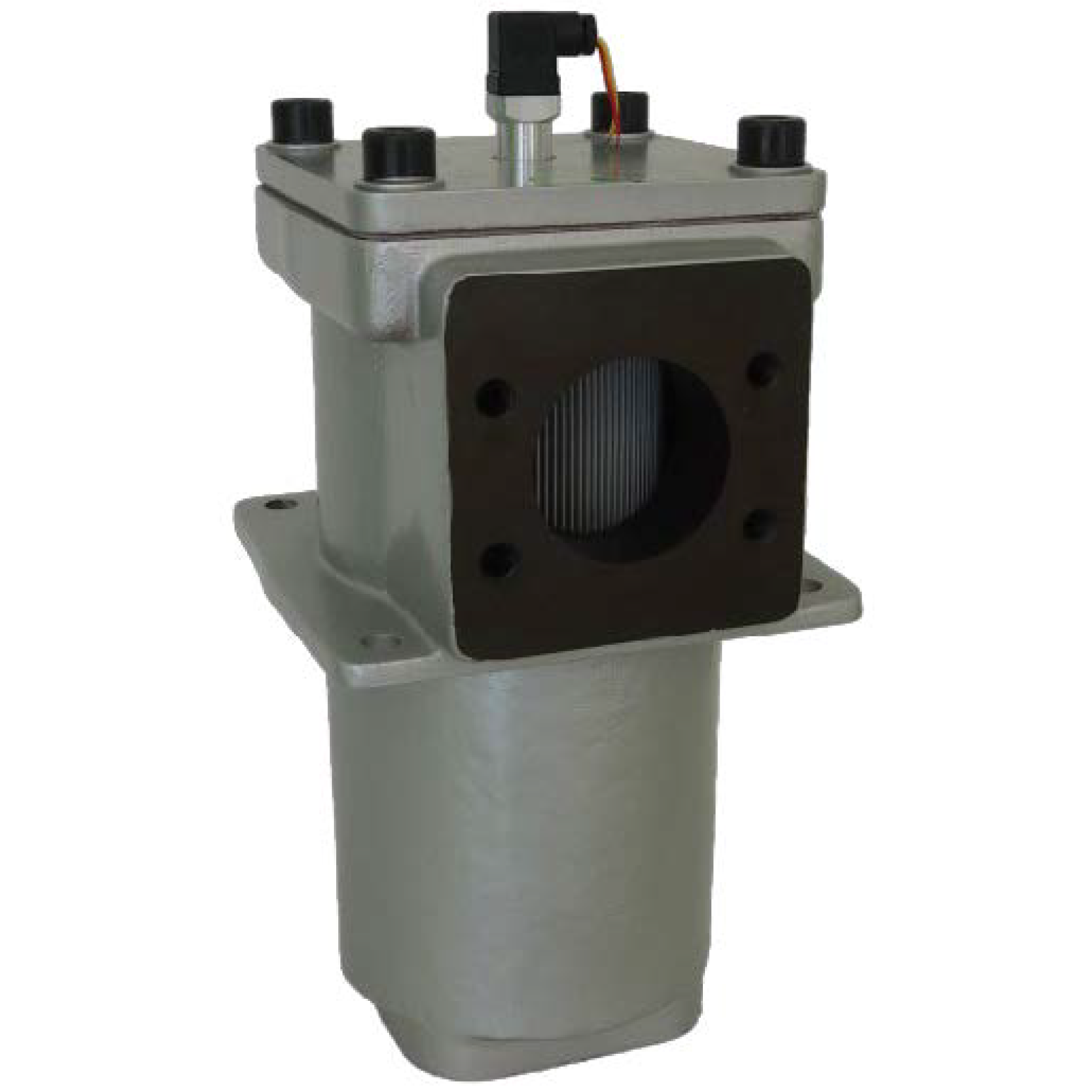

EFRH产品图片

EFRH

Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Clear

Description

Product Description

  • Operating pressure up to 25 bar
  • 1300 l/min max. flow rate
  • installation in Tank-top or in line
  • application in Mobiles equipment, Power unit fabricators and Off-line filter loops
  • compliant with industry relevant ISO standards(see ISO test below)

Technical Specificationsn

  • Application Tank-top/in-line return filter

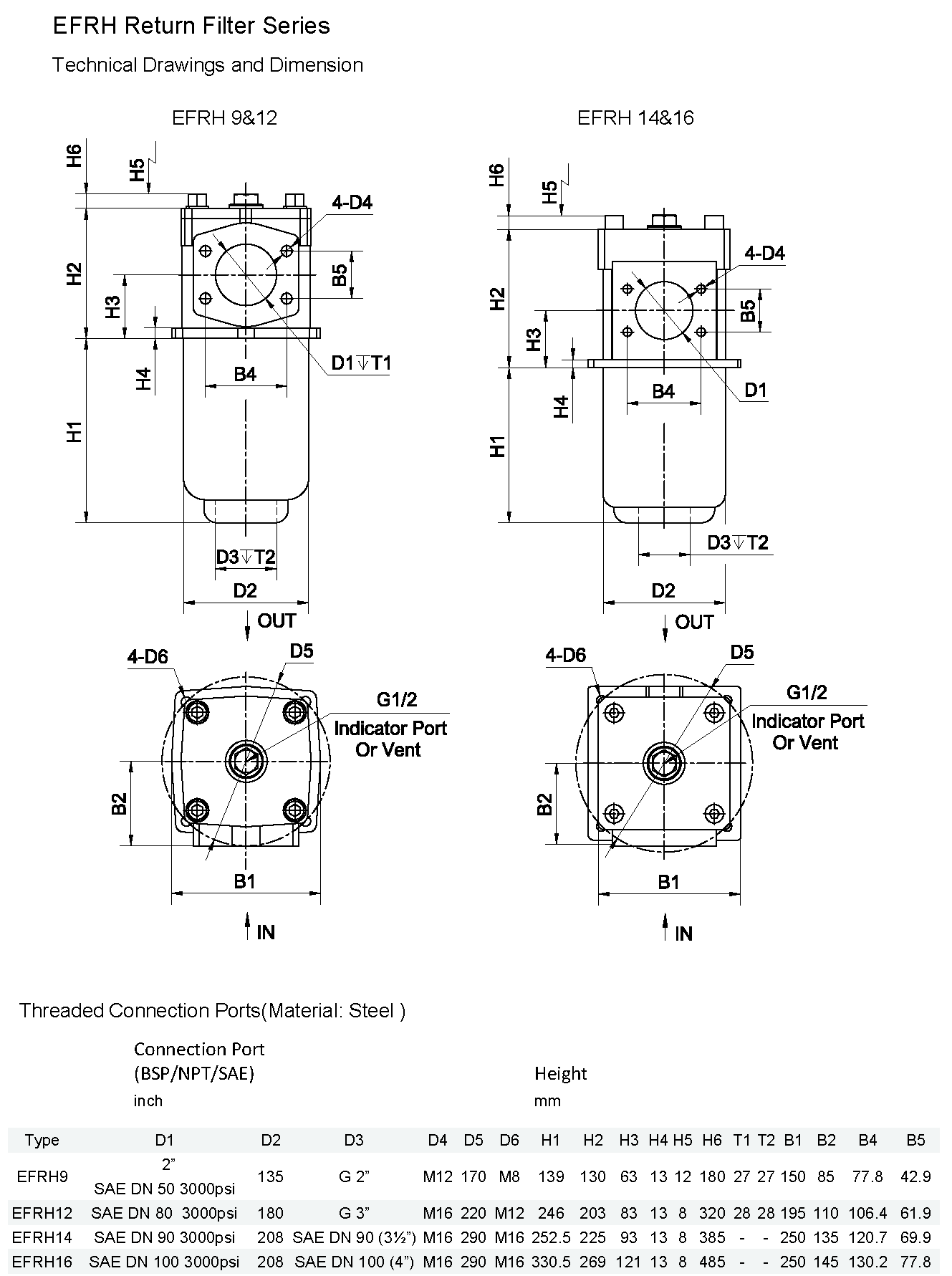

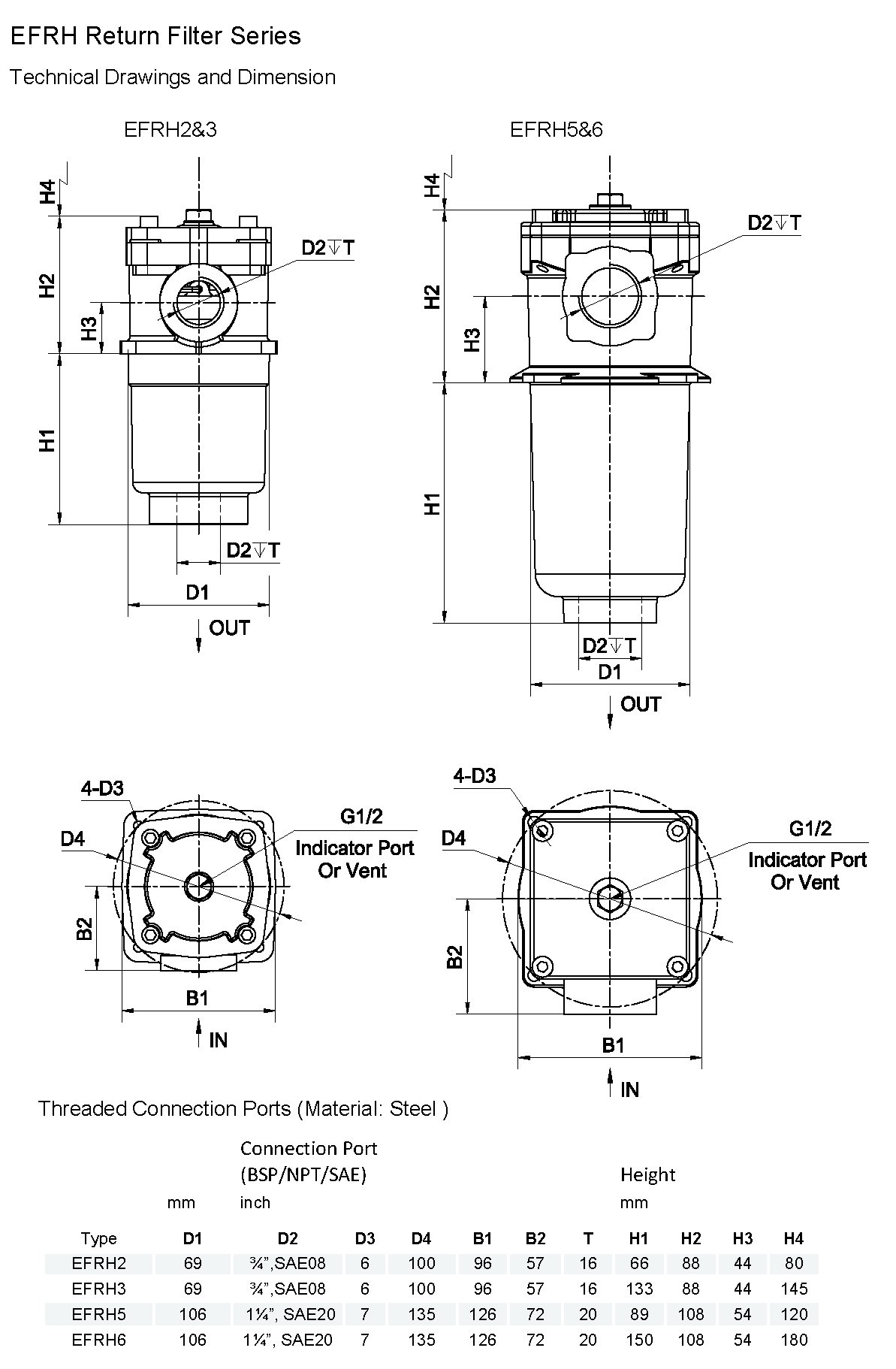

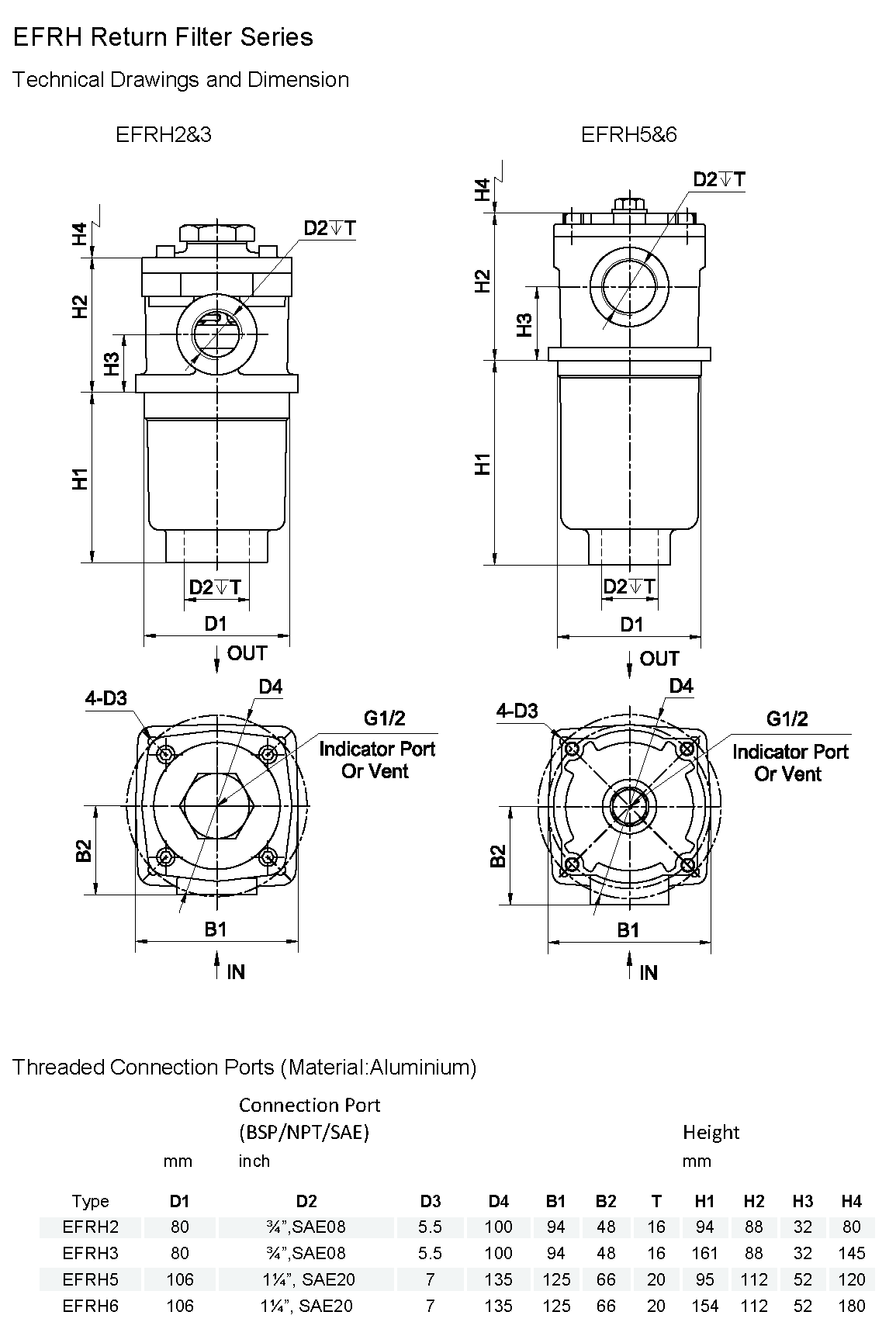

  • Port Sizes: Threaded Connections according to BSP and NPT standard in 1-¼”,2”,SAE08/SAE20 threads and Flange Connections in SAE DN50/SAE DN80/SAE DN90 and SAE DN100 for 3000 psi
  • Flow rate: max. 1300 l/min
  • Operating Pressure: max. 25 bar
  • Burst pressure: min. 83 bar
  • Element collapse pressure: 10 bar for cellulose media / 25 bar for fibreglass media / 30 bar for wire mesh

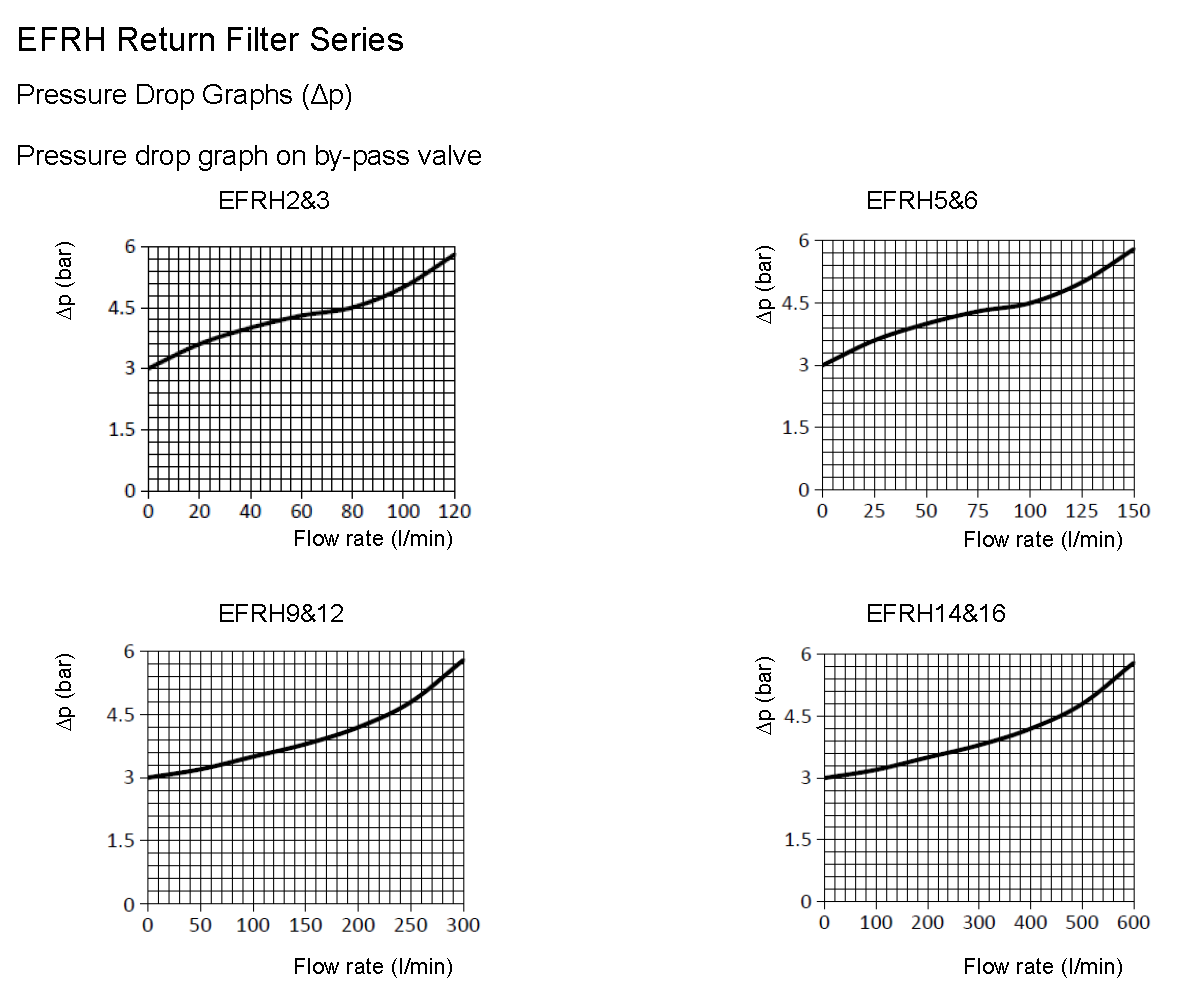

  • By-pass opening pressure: Δp 3 bar ± 10%
  • Seals: NBR or FPM (-10°C to 100°C)
  • Filter Head: Steel or Aluminium
  • Filter Bowl: Steel or Aluminium
  • Compatibility: Suitable for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable oils(for use with water or other fields please contact our technical department)
  • Tested according to ISO standards:
    ISO2941 Collapse/burst resistance
    ISO2942 Fabrication integrity
    ISO2943 Material compatibility integrity
    ISO3723 Method for end load test
    ISO3724 Flow fatigue characteristics

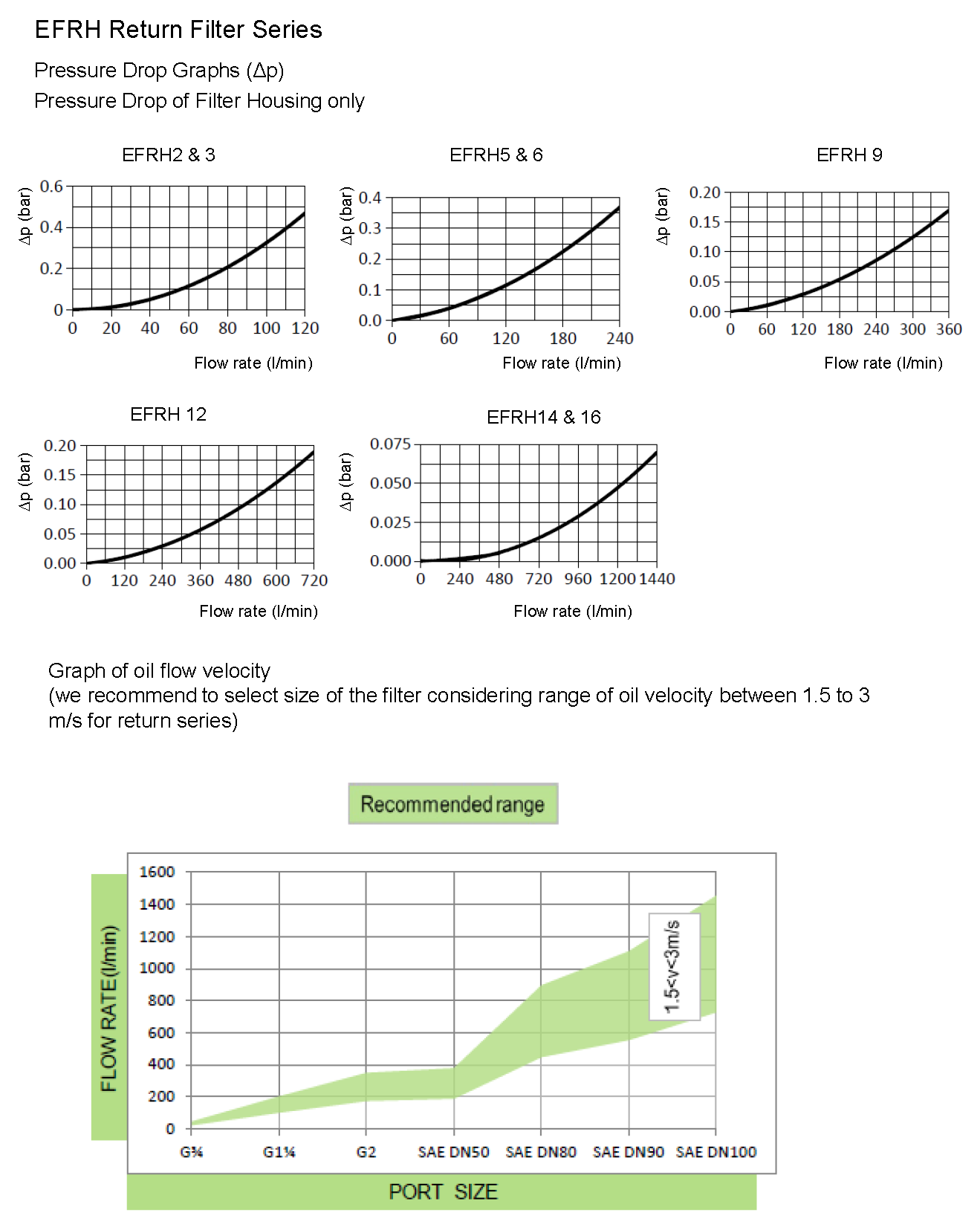

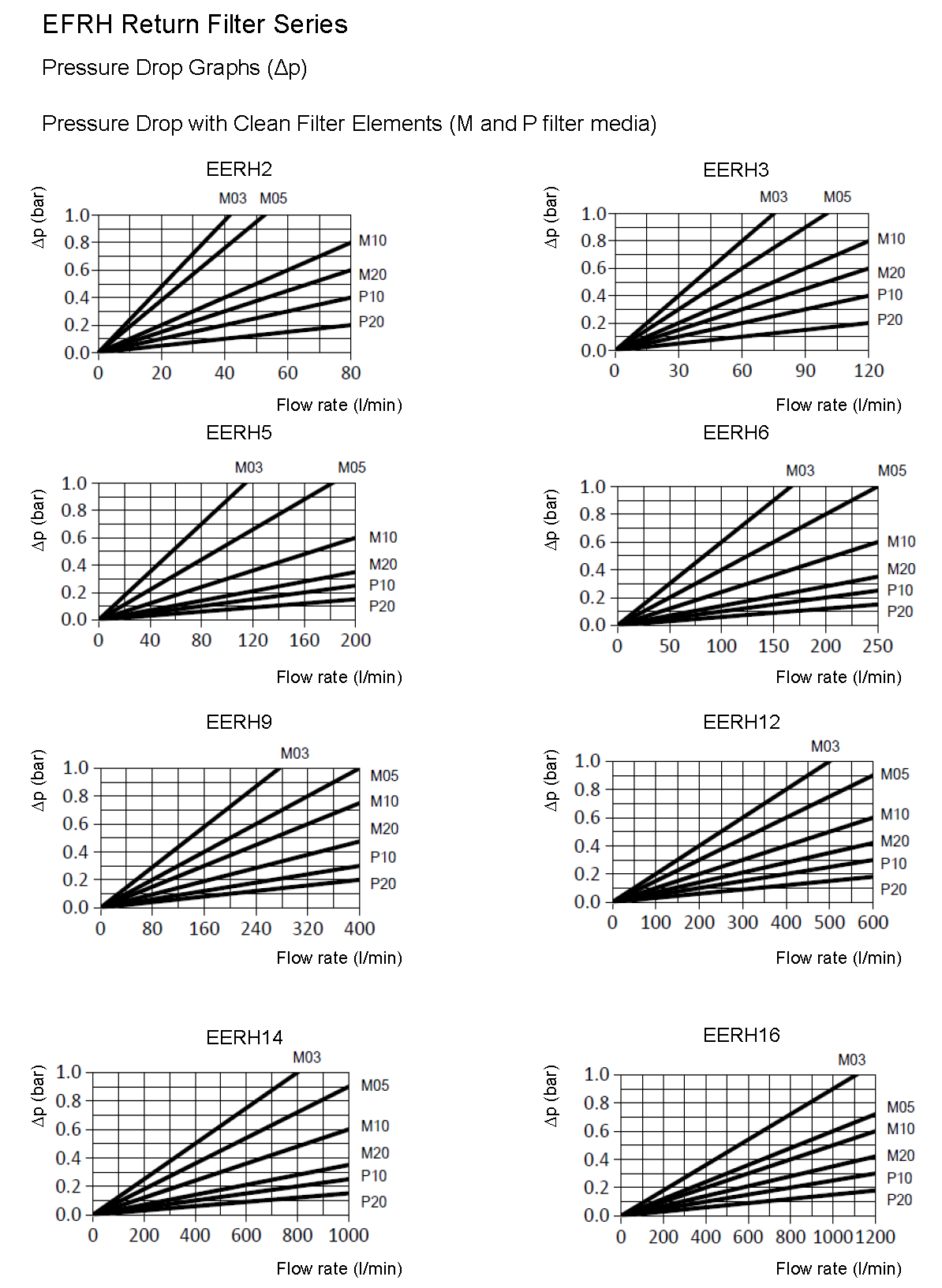

    ISO3968 Pressure Drop vs. Flow Rate
    ISO16889 Multi-Pass Test
