EVCE-SV10-47C
Description
Technical Specifications
Operating Pressure ：240Bar
Flow：23L/min
Internal leakage:164ml/min at 240bar
Operating temperature :-30°C to+ 120°C(-22°F to+ 250°F)
Cavity :VC10-4
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range :7.4 to 420cSt.
Features
Hardened seat for long life
Compact size
Industry common cavity
Continuous-duty rated solenoid
Optional coil voltages and terminations
Operation
When de-energized, the EVCE-SV10-47C blocks all ports. When coil 1 is energized, flow is allowed from 3 to 4, and from 2 to 1. When coil 2 is energized, flow is allowed from 3 to 2,and from 4 to 1.
Questions regarding the product?

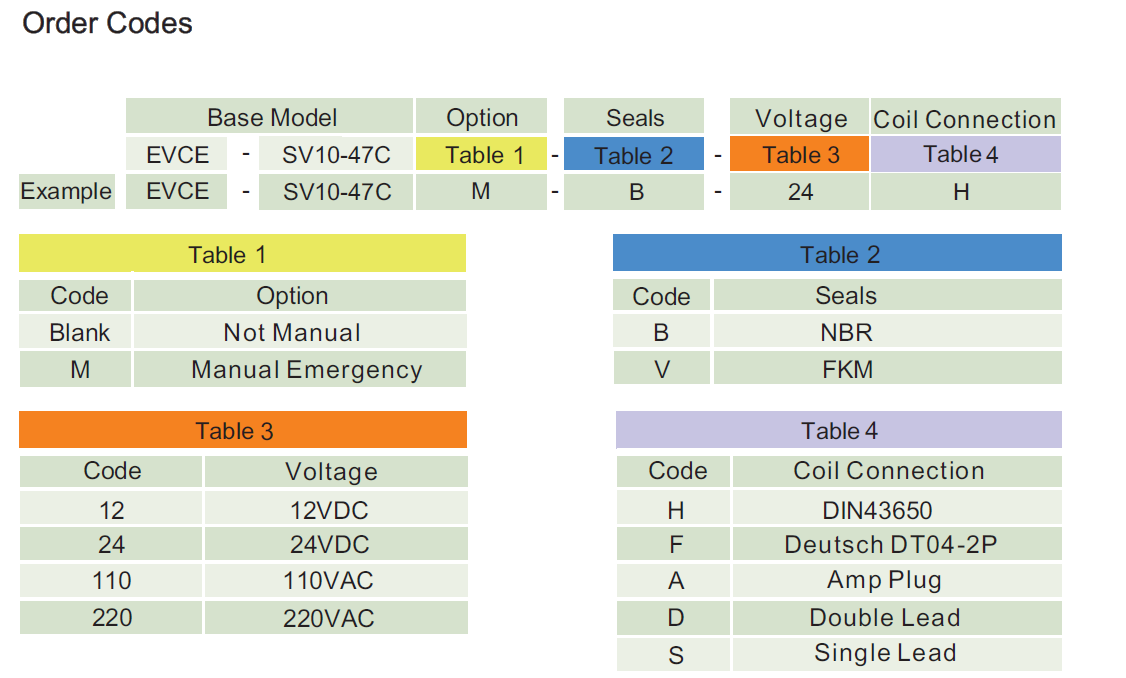

Additional information
| Table1 | M |
|---|---|
| Table2 | B, V |
| Table3 | 12, 24, 110, 220 |
| Table4 | H, F, A, D, S |
