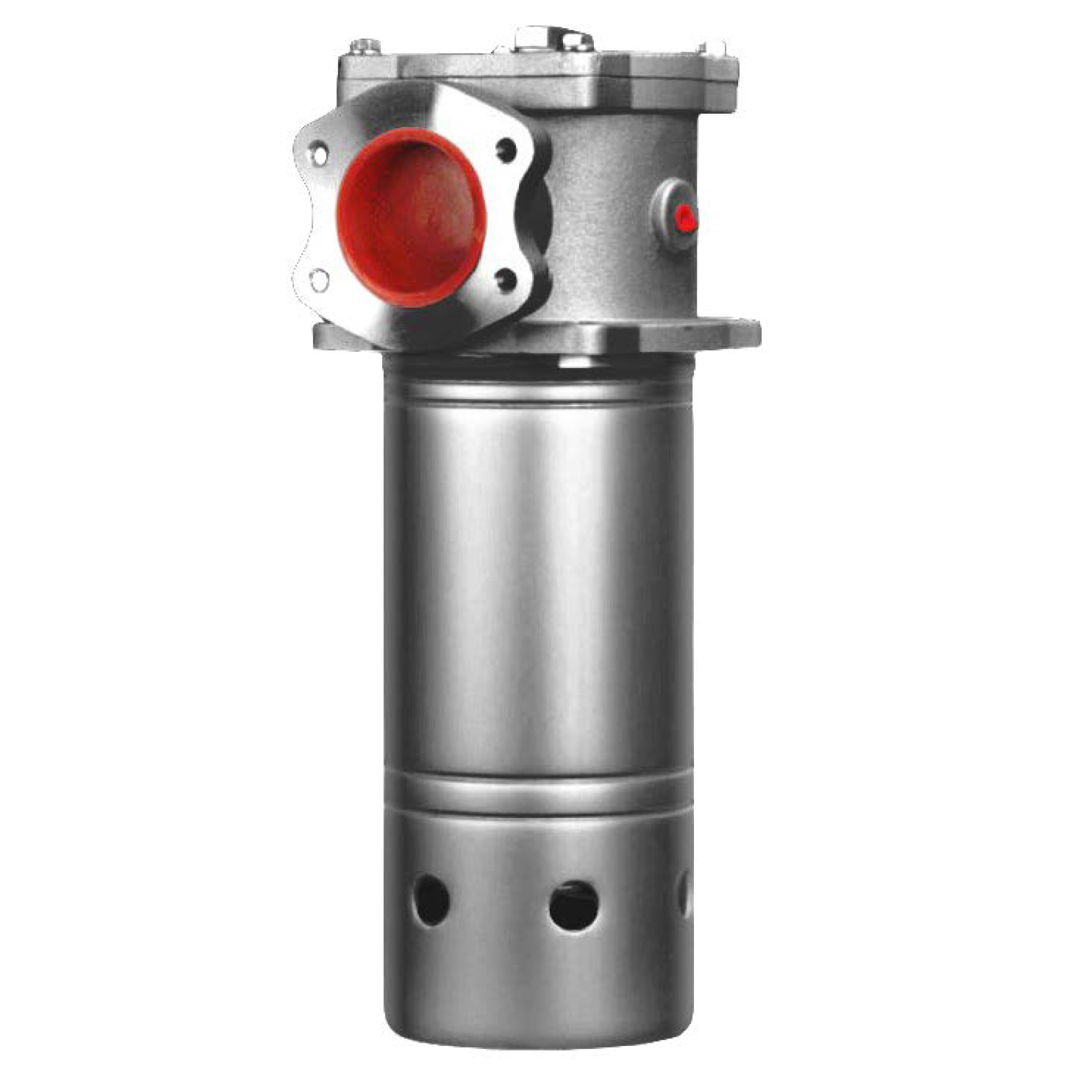

EFSU

Product Description

• Operating pressure up to16 bar
• 990 l/min max. flow rate
• installation in suction line
• application in Mobile Equipment, Hydrostatic Drives, Power Units and agricultural machines
• compliant with industry relevant ISO standards(see ISO test below)

Technical Specifications

Application：Suction Filters

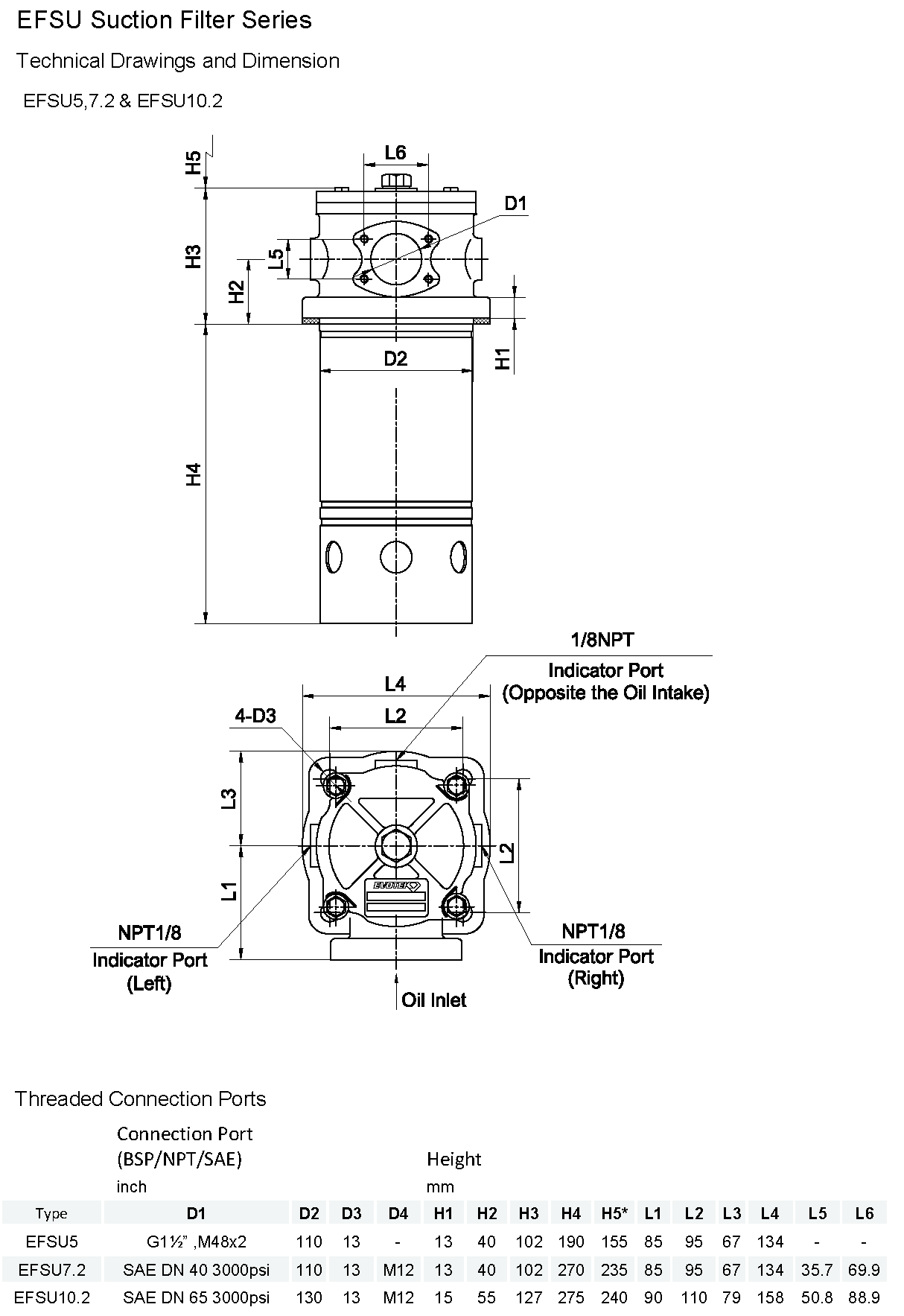

Port Sizes:Threaded Connections according to BSP and NPT standard in 1½”and SAE24 threads SAE DN40 /DN65 /DN90 3000psi

Flow Rate:max. 990 l/min

Operating Pressure:max. 16 bar

Burst Pressure: min. 48 bar

Element Collapse Pressure:1 bar

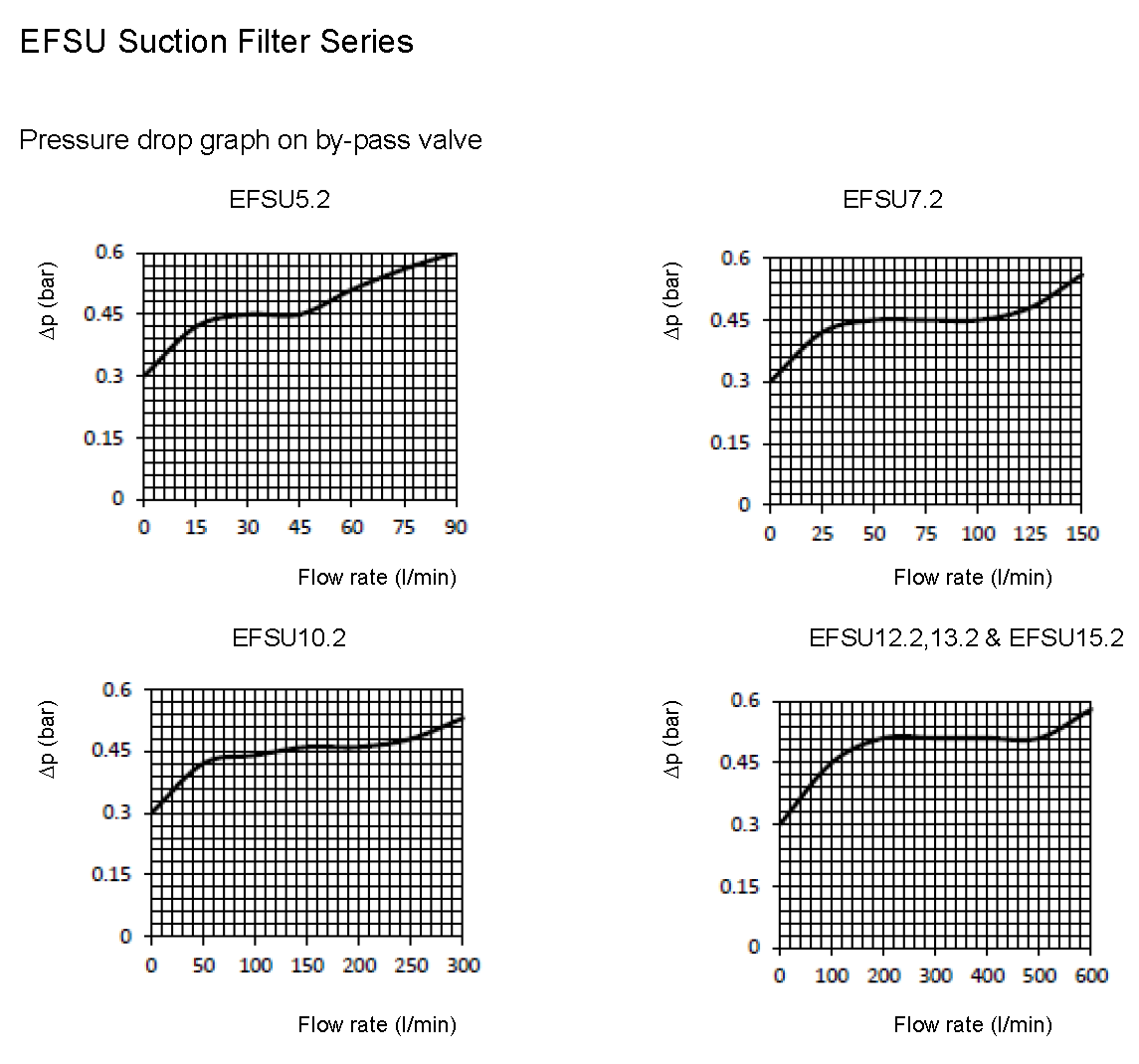

By-pass Opening Pressure:Δp=0.3 bar ±10%

Material Seals:NBR or FPM (-25°C to 100°C)

Filter Head:Aluminium

Filter Bowl:Aluminium

Compatibility:Suitable for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable oils (for use with water or other fields please contact our technical department)

Tested according to ISO standards:

ISO2941 Collapse/burst resistance

ISO2942 Fabrication integrity

ISO2943 Material compatibility integrity

ISO3723 Method for end load test

ISO3724 Flow fatigue characteristics

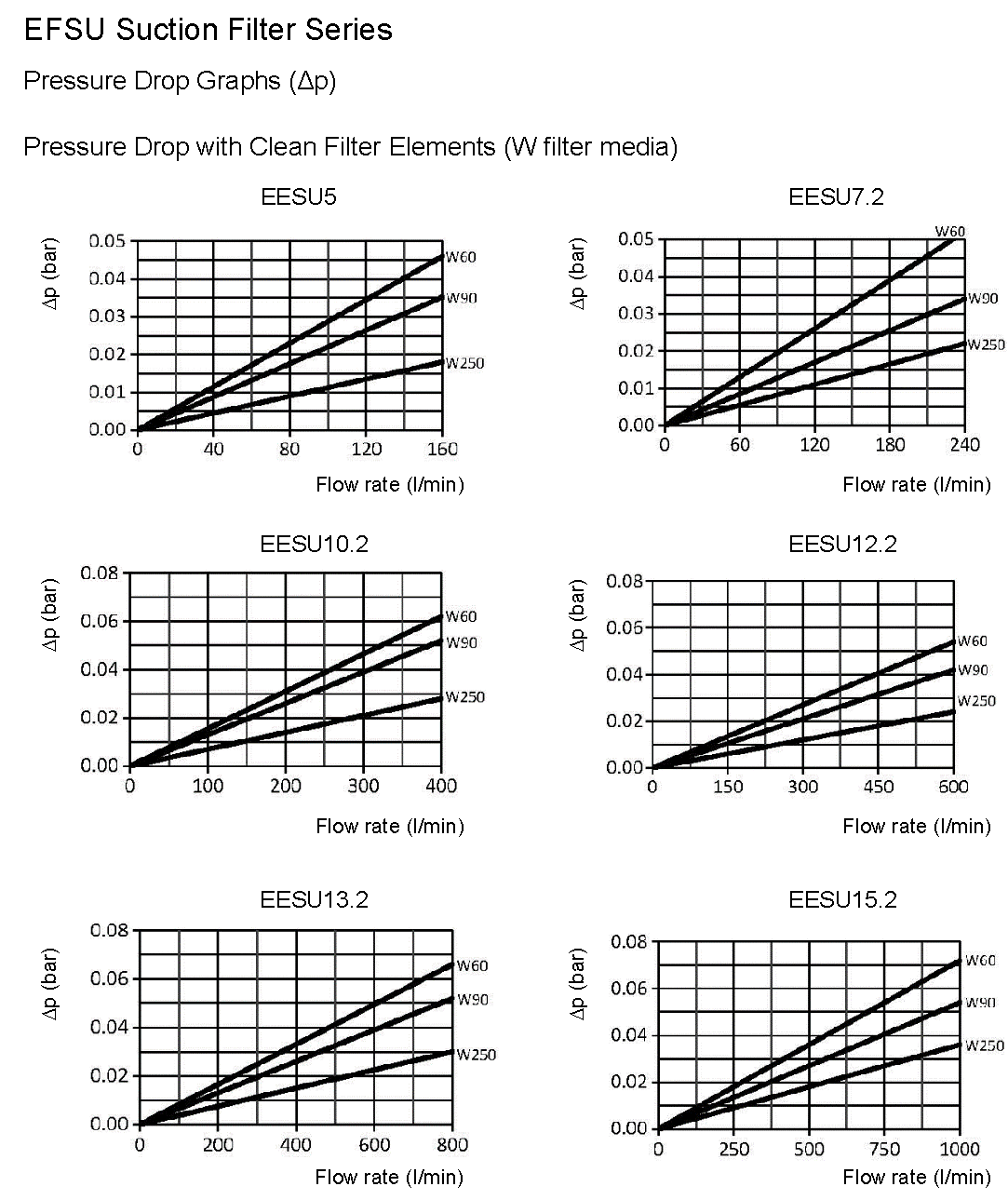

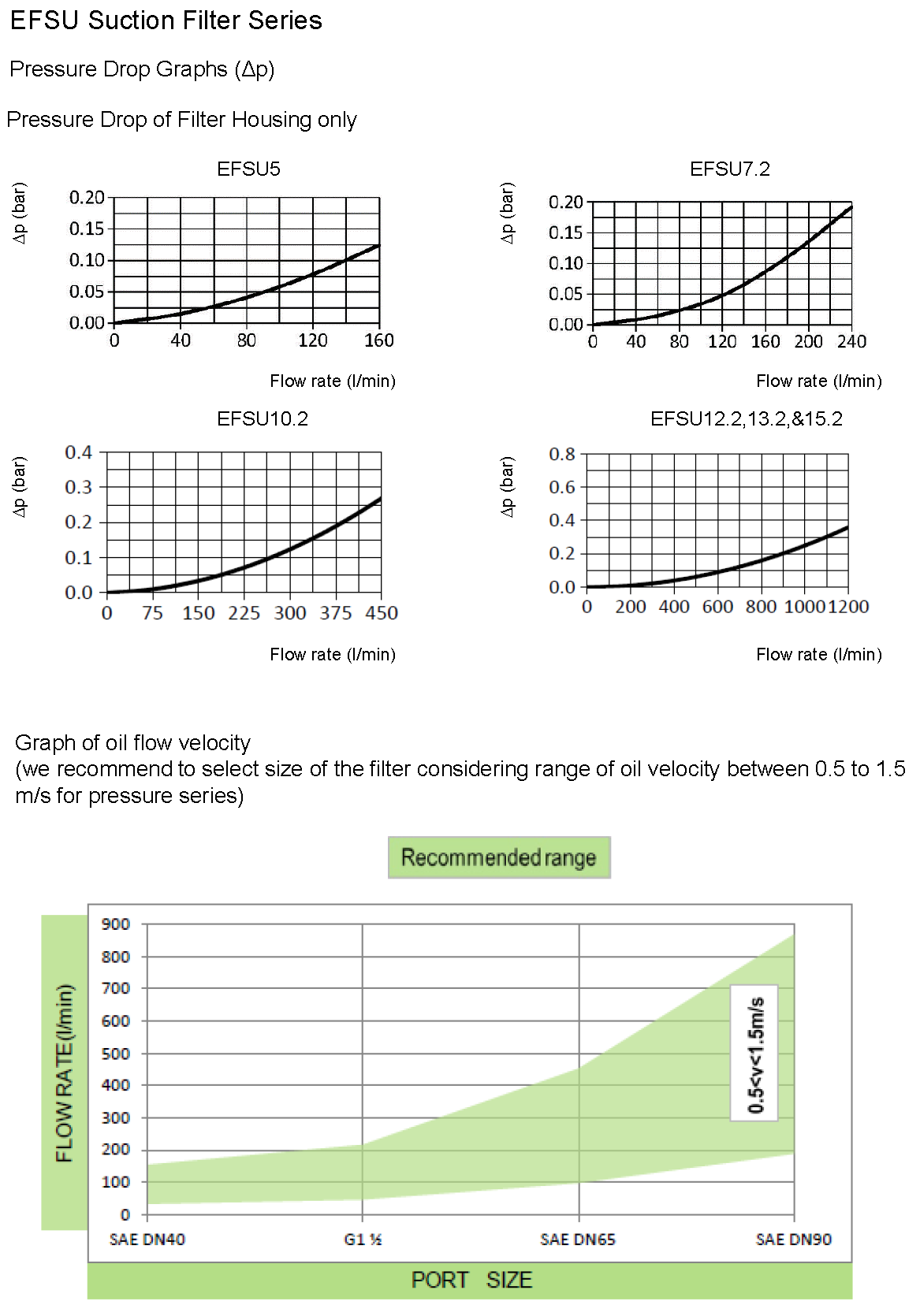

ISO3968 Pressure Drop vs. Flow Rate

ISO16889 Multi-Pass Test
